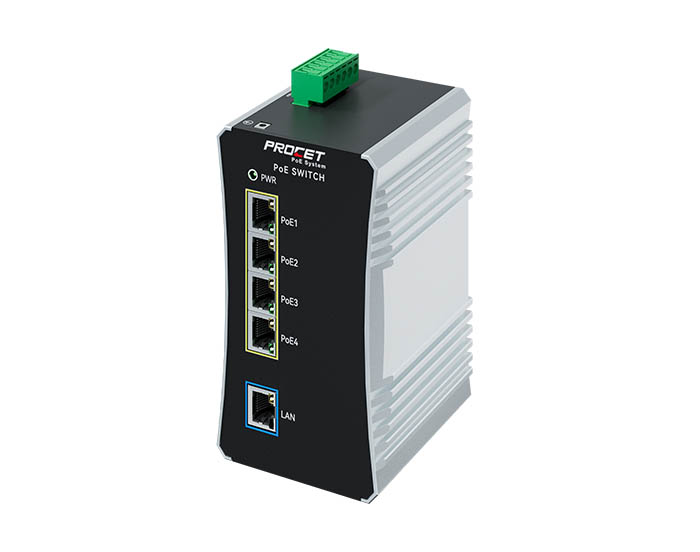

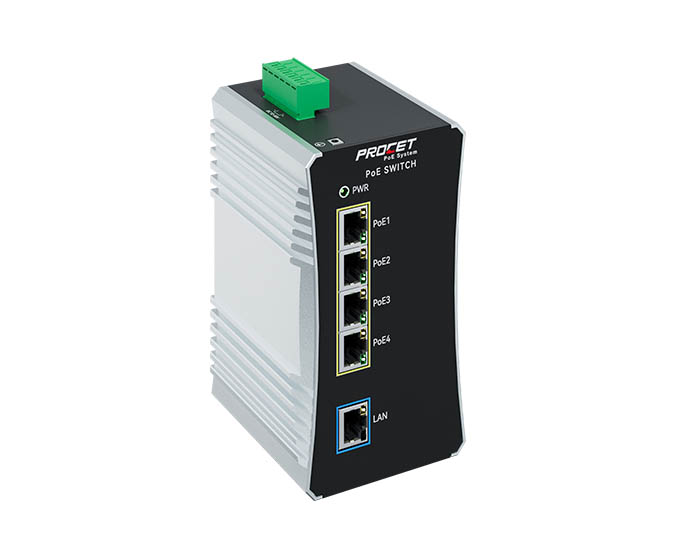

PT-PIS4PB1T-E is an industrial-rated 4-port PoE switch that has one 1 copper Ethernet uplink Interfaces and 4 RJ45 PoE ports. Enclosed in an IP40 high-impact metal case but can work outdoor by being covered with a waterproof case. All the RJ45 Ethernet copper ports have 4KV surge protection.
Two DC power inputs, you can choose either one to go ahead. Do not connect both two DC power simultaneously. One DC supports wide input voltage of 12-55Vdc, the other DC only supports 48-55Vdc. The working temperature can be from -40℃to 65℃. 4 PoE ports provide 90W each power for remote PDs over 4 pairs output at 10/100/1000Mbps of data speed. Each PoE port is compliant with BT standard and backward compatible with 802.3af/at. Such as power for Pan Tilt Zoom cameras/IP cameras, VoIP video phones, building/access control equipment, WiFi access devices, POS terminals, thin clients, kiosks, and IP print servers.

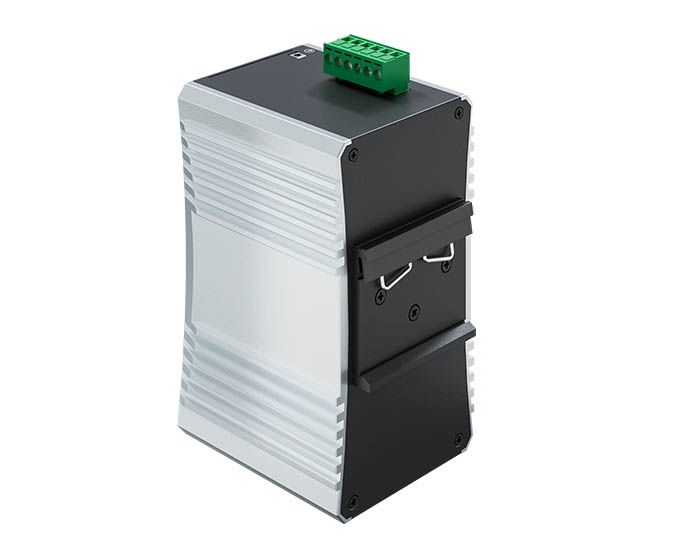

For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. This model is equipped with a standard DIN rail mounting bracket, which can easily jam into the guide rail.
Specifications
| Parameter | Description |
| Key Features | 4-Port BT 90W PoE Switch, Two DC power inputs 12-55Vdc can match soloar power system Industrial PoE can be outdoor use by covered with waterproof case Gigabit data rates 1 LAN copper Ethernet Data uplink DIN Rail mount Surge protection at all 4 PoE ports IP40 high-impact metal enclosure Extend temperature from -40℃ to 65℃ Diagnostic LEDs |
| Part Number | PT-PIS4PB1T-E |
| Ports condition | LAN Port*1, PoE Output Port*4, DC input Terminal Block with 6 pins*1 |
| Regulatory Compliance | IEEE802.3bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000Mbps |
| Input and Output | Pin Assignment and Polarity: 3/6(+), 1/2(-)，4/5(+), 7/8(-) Input 1: 12-55Vdc 12.0A (Max) Output 1: 55Vdc, 1640mA(max) per port Total power budget 120W(max) @12Vdc input Total power budget 240W(max) @24Vdc input Total power budget 360W(max) @48Vdc input Input 2: 48-55Vdc 8.0A (Max) Output 2: 48-55Vdc, 1640mA(max) per port Total power budget 360W(max) Do not feed input 1 and input 2 simultaneously, otherwise, there will be a risk of damage. |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 4KV Differential mode surge protection (10/700us): 1.5KV |
| Mechanical Characteristics | Case: Metal Color: Black Mounting: DIN-rail IP Rated: IP40 Connectors: Shielded RJ-45*5 Size: 76mmX 87mmX 146mm Weight: 1230 g（2.71 lb） |
| LED Indicator | Power Indicator : Green PoE Load Indicator : Green PoE Data Switching Indicator: Yellow LAN Data Input Indicator: Green |
