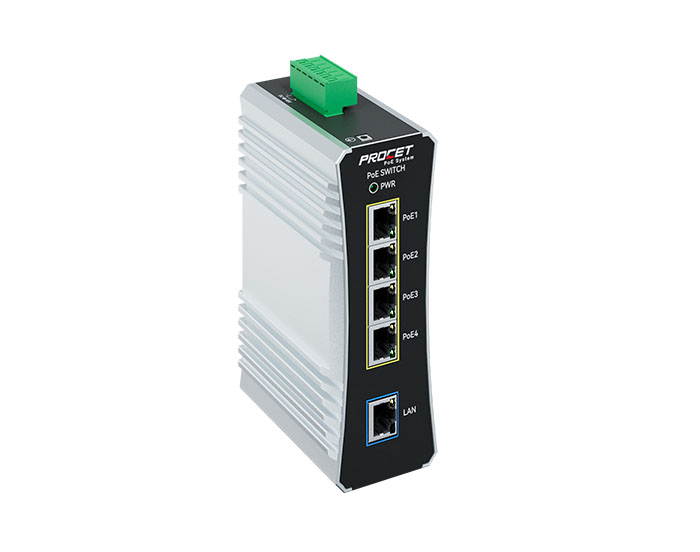

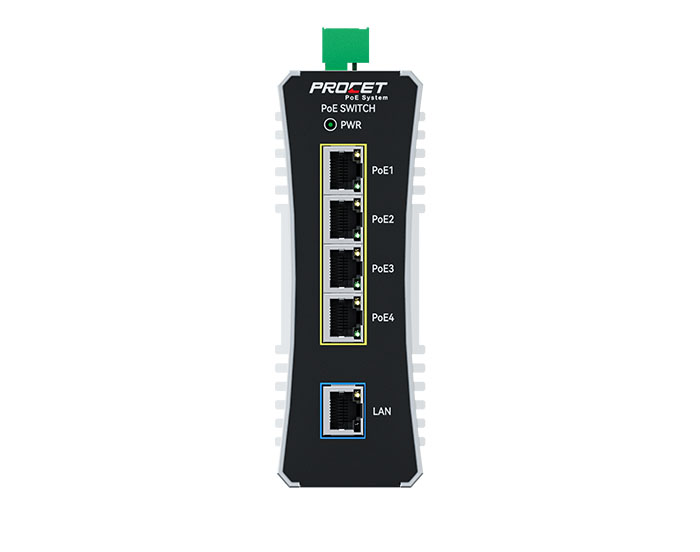

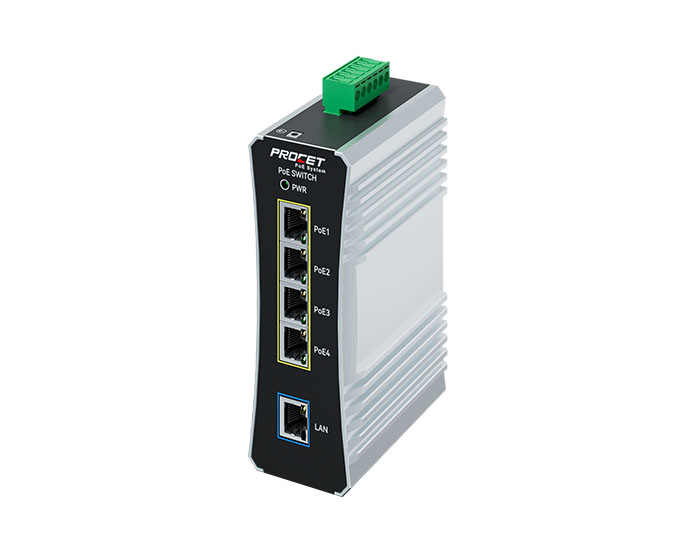

PT-PIS4PB1T 5-Port Gigabit unmanaged Din Rail 48VDC PoE++ Switch

PT-PIS4PB1T is an industrial-rated 4-port PoE switch that has one LAN Data uplink.  Enclosed in an IP40 high-impact metal case but can work outdoor by being covered with a waterproof case. All the PoE ports have 4KV surge protection.


It works with an input voltage of 48-55 and operates under -40℃ to 75℃. This model includes 1 LAN data uplink, 1 power input terminal block and 4 PoE ports, provides 90W per port power for remote PDs over 4 pairs output at 10/100/1000Mbps of data speed. Each PoE port is compliant with BT standard and backward compatible with 802.3af/at. Such as power for Pan Tilt Zoom cameras/IP cameras, VoIP video phones, building/access control equipment, WiFi access devices, POS terminals, thin clients, kiosks, and IP print servers.


The power input terminal block has 6-pin wires which support two DC connectors. The other DC connector also supports 48-55Vdc. You can choose either one to go ahead. Do not connect both DC powers simultaneously, otherwise, there will be a risk of damage to the unit.

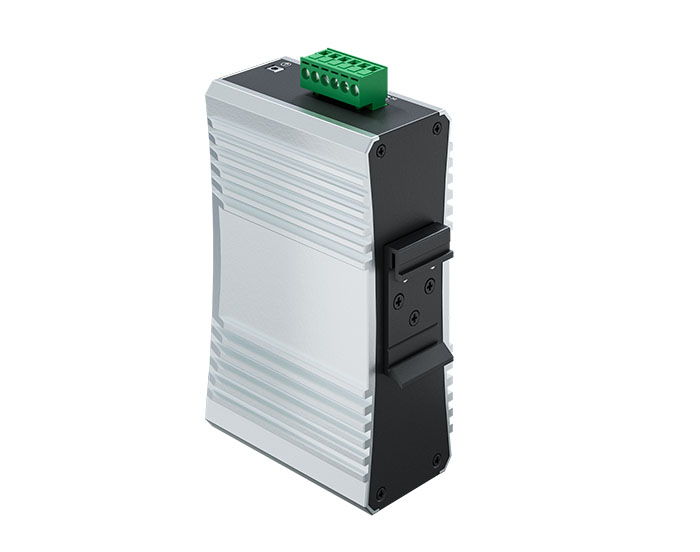

For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. This model is equipped with a standard DIN rail mounting bracket, which can easily jam into the guide rail.


  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key Features4-Port BT 90W PoE Switch
Industrial PoE can be outdoor use by covered with waterproof case
10/100/1000Mbps
Surge protection at PoE port
DIN Rail mount
IP40 high-impact metal enclosure
Extend temperature from -40℃ to 75℃
Diagnostic LEDs
Part NumberPT-PIS4PB1T
Ports conditionLAN Port*1, PoE Output Port*4, DC input Terminal Block *1
Regulatory ComplianceIEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000Mbps
OutputPin Assignment and Polarity:
4/5 (+), 7/8 (–) & 3/6(+),1/2(-)
Output Power Voltage: 48-55Vdc
User Port Power: 90W Guaranteen per port, Total Power budget 360W
InputDC Input Voltage:48 to 55 Vdc, 7.5A(Max)
Working EnvironmentOperating Temperature: -40℃ to 75℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 4KV
Differential mode surge protection (10/700us): 1.5KV
Mechanical CharacteristicsCase: Metal
Color: Black and Silver
Mounting: DIN-rail
IP Rated: IP40
Connectors: Shielded RJ-4554
Size: 49mmX 96mmX 146mm
Weight: 404 g(0.89 lb)
LED IndicatorPower Indicator : Green
PoE Load Indicator : Yellow
SFP fiber indicator:Green
Lan data indicator: Yellow
