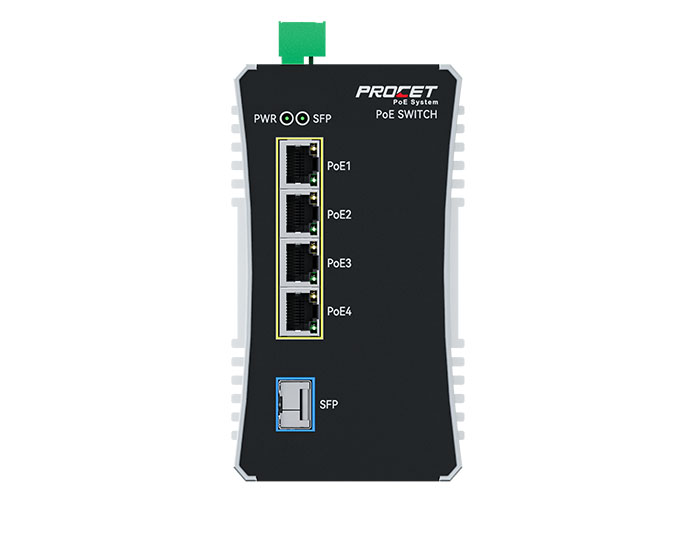

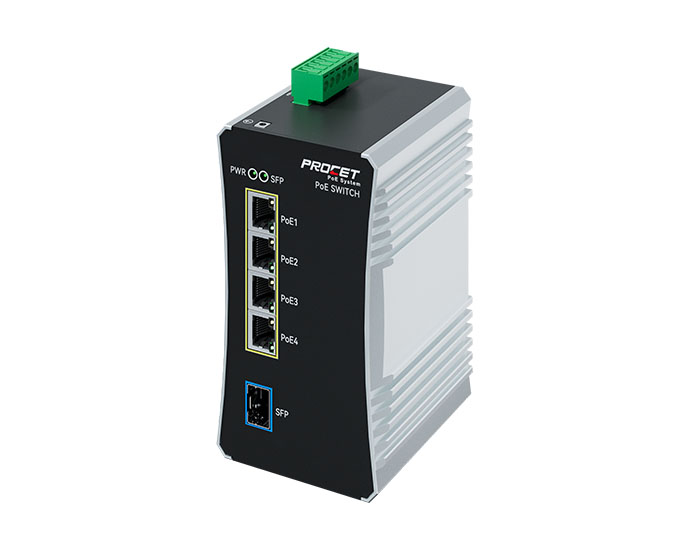

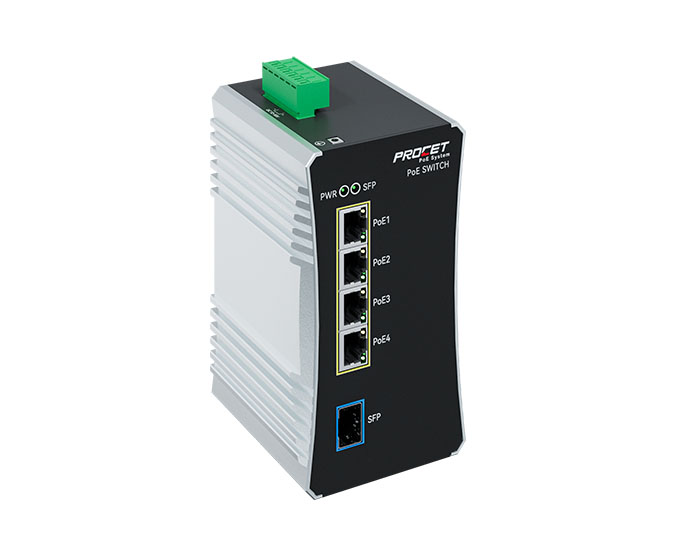

PT-PIS4PB1S-E 4-Port PoE++ high power Switch with SFP Fiber Uplink

PT-PIS4PB1S-E is an industrial-rated 4-port PoE switch that has one SFP uplink offers a unique solution to powering long-range installations, where the data input comes over fiber, such as special scenarios, like highway side, exurb applications.  Enclosed in an IP40 high-impact metal case but can work outdoor by being covered with a waterproof case. All the Ethernet copper ports have 4KV surge protection.


It works with a wide input voltage of 12-55Vdc and operates under -40℃ to 75℃. This model includes 1 SFP fiber slot at 1000BASE-X, 1 power input terminal block and 4 PoE ports, provides 90W each port power for remote PDs over 4 pairs


output at 10/100/1000Mbps of data speed. Each PoE port is compliant with BT standard and backward compatible with 802.3af/at. Such as power for Pan Tilt Zoom cameras/IP cameras, VoIP video phones, building/access control equipment, WiFi access devices, POS terminals, thin clients, kiosks, and IP print servers.


The power input terminal block has 6-pin wires which support two DC connectors. The other DC connector only supports 48-55Vdc. You can choose either one to go ahead. Do not connect both DC powers simultaneously, otherwise, there will be a risk of damage to the unit.

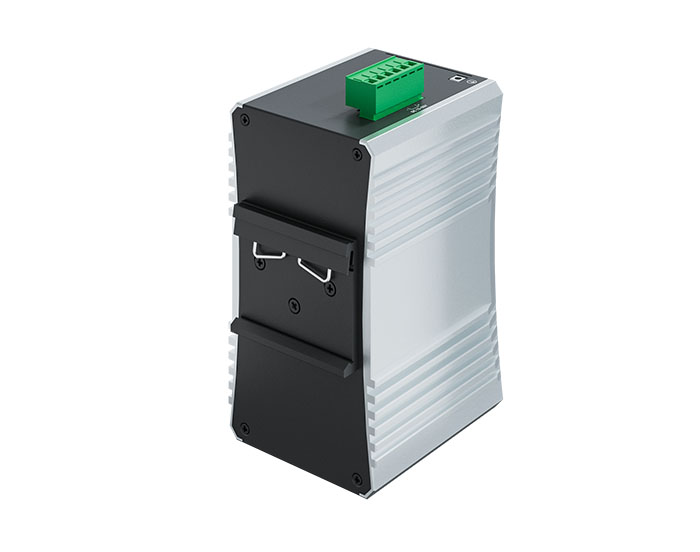

For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. This model is equipped with a standard DIN rail mounting bracket, which can easily jam into the guide rail.


  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key Features4-Port BT 90W PoE Switch,
12-55Vdc can match soloar power system
Industrial Fiber PoE can be outdoor use by covered with waterproof case
1000Base-FX to 10/100/1000Base-TX
SFP slot for Multi mode or Single mode SFP transceiver
Gigabit data rates for Ethernet Copper
DIN Rail mount
Surge protection at all 4 PoE ports
IP40 high-impact metal enclosure
Extend temperature from -40℃ to 75℃
Diagnostic LEDs
Part NumberPT-PIS4PB1S-E
Ports conditionSFP Port*1, PoE Output Port*4, DC input Terminal Block *1
Regulatory ComplianceIEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000BASE-T RJ45 Interfaces
1000BASE-X SFP Interfaces
Output 1Pin Assignment and Polarity:
3/6(+), 1/2(-),4/5(+), 7/8(-)
Output Power Voltage: 55Vdc/1.64A
User Port Power: 90W Guaranteen per port*4,
Total power budget 120W(max) @12Vdc input
Total power budget 240W(max) @24Vdc input
Total power budget 360W(max) @48Vdc input
Input 1DC Input Voltage:12 to 55 Vdc, 10.0A
Output 2Output Power Voltage:  48-55Vdc, 1.64A
User Port Power: 90W Guaranteen per port*4,
Total power budget 360W(max)
Input 2DC Input Voltage:48 to 55 Vdc, 7.5A
Working EnvironmentOperating Temperature: -40℃ to 75℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 4KV
Differential mode surge protection (10/700us): 1.5KV
Mechanical CharacteristicsCase: Metal
Color: Black and Silver
Mounting: DIN-rail
IP Rated: IP40
Connectors: Shielded RJ-45*4, SFP slot *1
Size: 76mmX 95.1mmX 146mm
Weight: 1230 g(2.71 lb)
LED IndicatorPower Indicator : Green
PoE Load Indicator : Yellow
SFP fiber indicator:Green
Lan data indicator: Yellow
