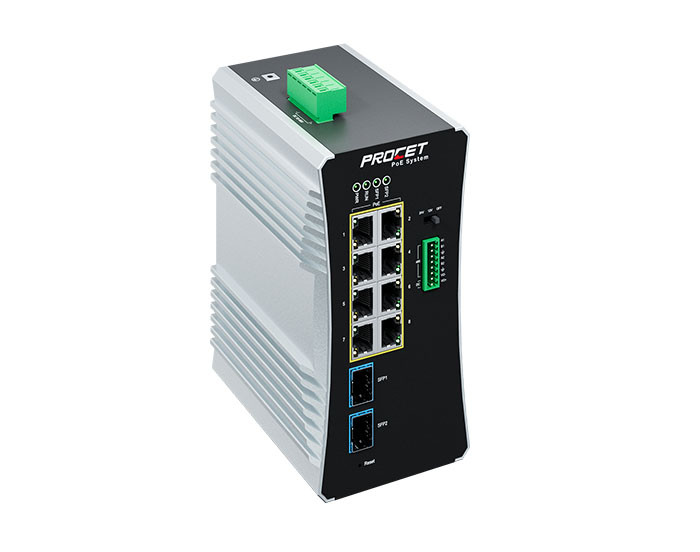

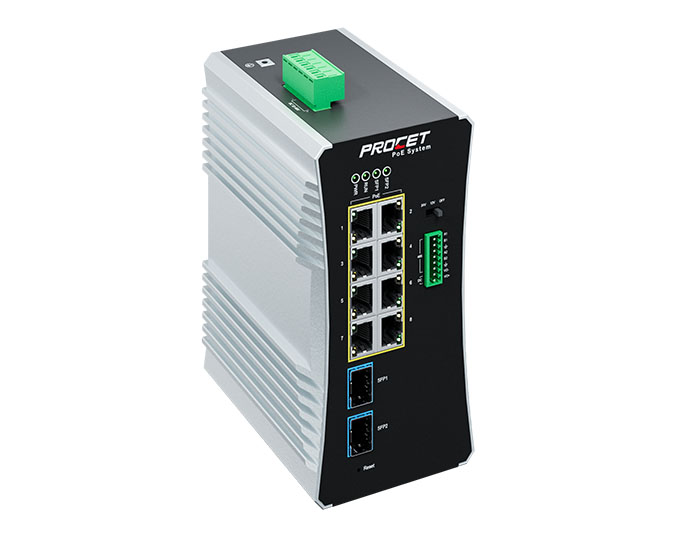

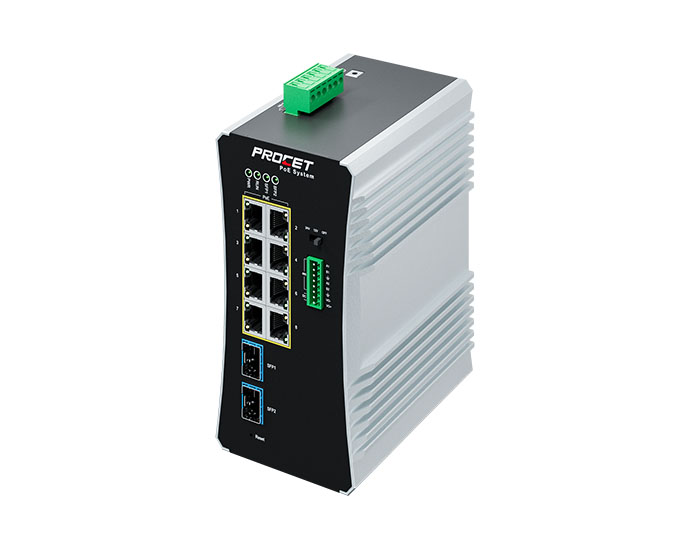

This DIN-rail PoE switch includes two 2.5G/1G SFP ports and eight RJ45 ports, operating in -40°C to 65°C environments. It supports IEEE 802.3bt with up to 90W per port and total PoE power up to 360W at 48V input. PoE management features include remote control, power prioritization, and real-time monitoring.
Layer 2 features like VLAN and port mirroring ensure stable data transmission. The compact DIN-rail design enables easy deployment in smart poles, transport systems, and energy sites.
Specifications
| Item | PT-PIS8PB2SM-E |
| Ports | DC IN*1 SFP*2 PoE*8 Grounding*1 |
| PoE Standard | IEEE802.3af/at/bt Power over Ethernet |
| Input | 12~55Vdc |
| Output | 120W@12Vdc input,240W@24Vdc input, 360W@48Vdc input |
| PoE Output | 55Vdc 1.64A 90W Max for Single Port |
| Power Pins | 4/5(+),7/8(-) & 3/6(+),1/2(-) |
| Switching Mode | Store-and-forward |
| VLAN | Support 4096 VLAN IDs Support 802.1Q VLAN Support VLAN based on any combination of ports across multiple chips |
| Backplane Bandwidth | 26Gbps |
| Network Protocols | IEEE802.3 Ethernet IEEE802.3u Fast Ethernet IEEE802.3ab Gigabit Ethernet IEEE802.3/IEE E802.3u/IEE E802.3ab/IE EE802.3z IEEE802.3bz |
| Qos | Support high-speed, non-blocking four-traffic-class QoS structure |
| Op Temp | -40°C-65°C |
| Op Humid | 5%-90%,non-condensing |
| Op Alt | Up to 5000m |
| Stor Temp | -40°C-85°C |
| Stor Humid | 5%-95%,non-condensing |
| Enclosure | Aluminum alloy+Steel Support Plate |

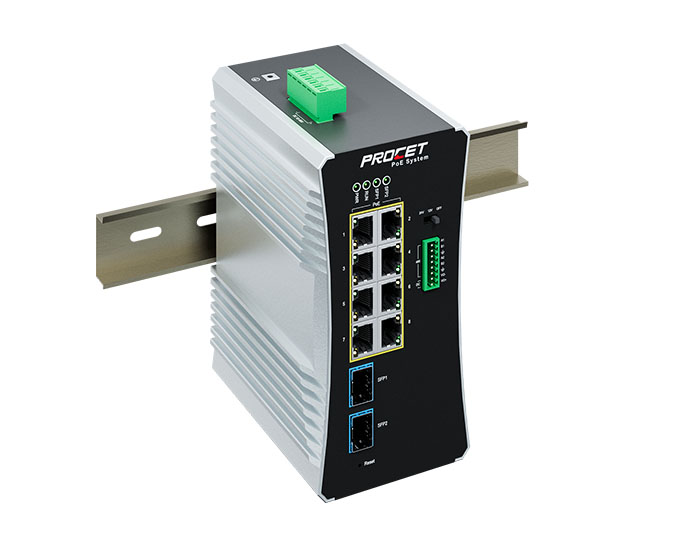

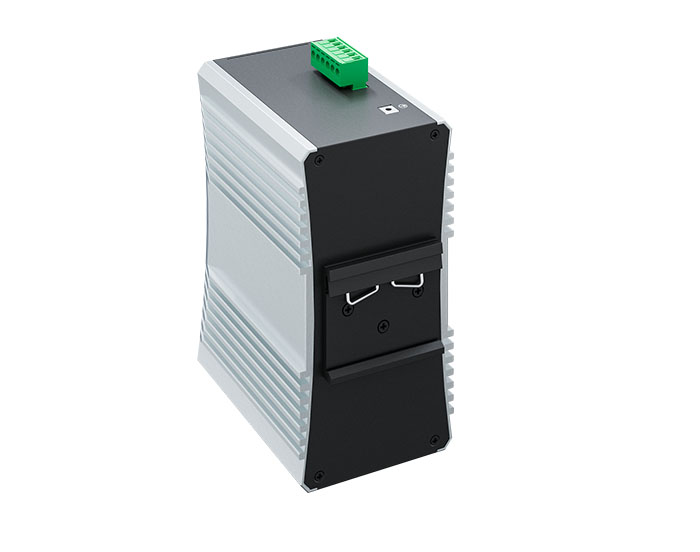

| Installation | DIN-Rail mount |
| Protection | IP40 |
| Size & Weight | 153mm X 118mm(including the buckle 129.1mm) X 80mm(1671g) |
| Certification |
