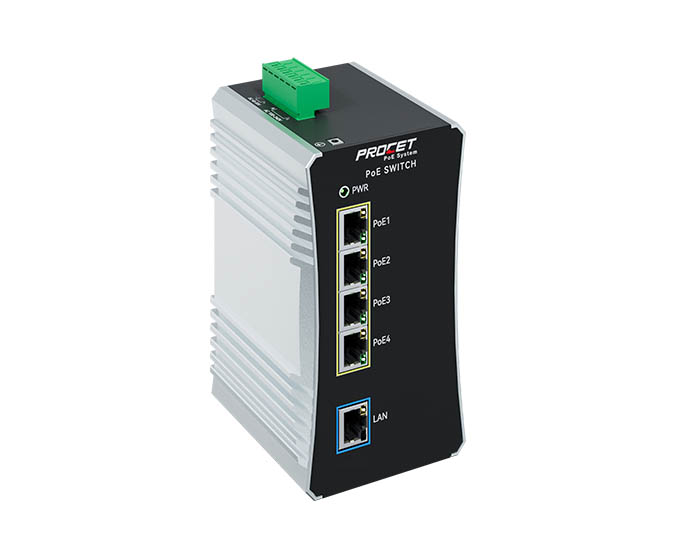

PT-PIS4PB1T-AC Industrial AC to DC PoE Switch 5-Port full Gigabit Ultra 160W

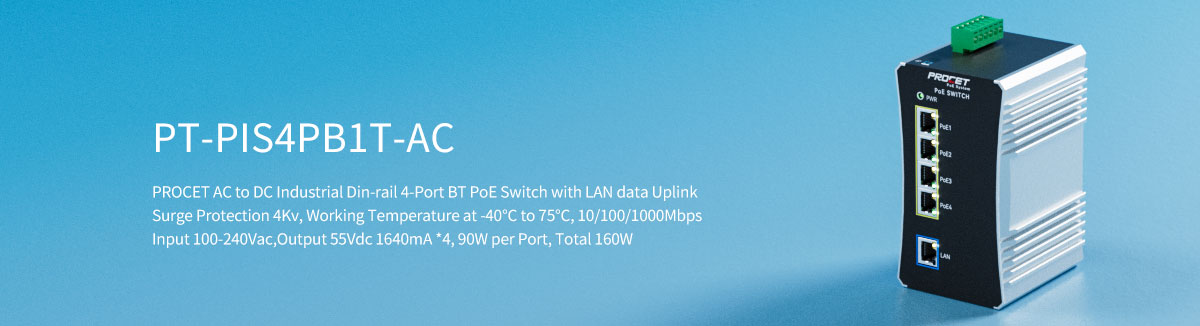

PT-PIS4PB1T-AC is an AC to DC industrial-rated 4-port PoE switch that has one LAN data uplink.  Enclosed in an IP40 high-impact metal case but can work outdoor by being covered with a waterproof case. All the PoE ports have 4KV surge protection.


It works with a wide input voltage of 100-240Vac and operates from -40℃ to 75℃. This model includes 1 LAN data uplink, 1 power input terminal block and 4 PoE ports, providing 90W each port power for remote PDs over 4 pairs output at 10/100/1000Mbps of data speed. Each PoE port is compliant with BT standard and backward compatible with 802.3af/at. Such as power for Pan Tilt Zoom cameras/IP cameras, VoIP video phones, building/access control equipment, WiFi access devices, POS terminals, thin clients, kiosks, and IP print servers.


It can also be fed by 48-55Vdc. That is two power AC and DC inputs of the terminal block, you can choose either one to go ahead. Do not connect both AC and DC power simultaneously, otherwise, there will be a risk of damage to the unit.

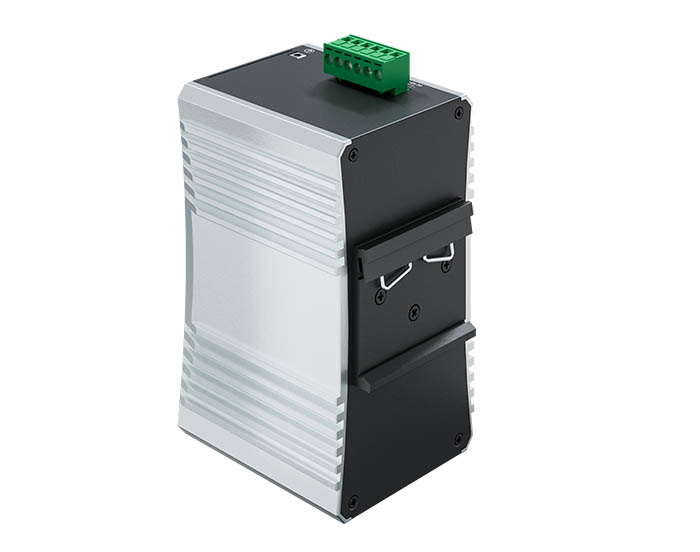

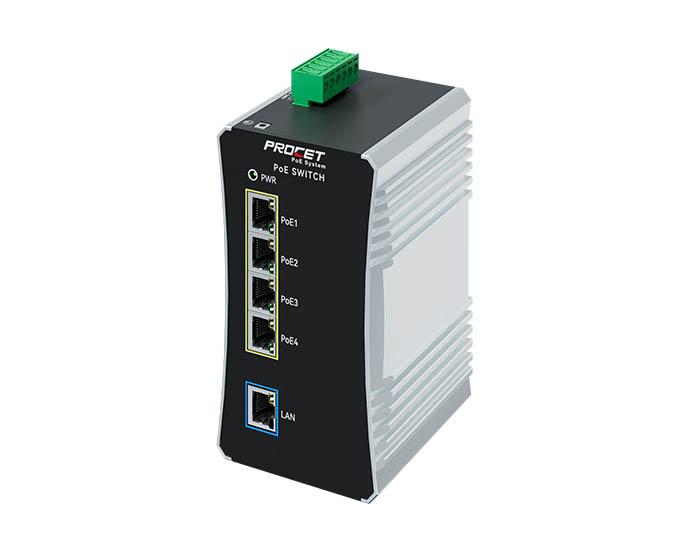

For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. This model is equipped with a standard DIN rail mounting bracket, which can easily jam into the guide rail.


  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key Features4-Port BT 90W PoE Switch, Total 160W
AC to DC
Industrial PoE can be outdoor use by covered with waterproof case
10/100/1000Mbps
Surge protection at PoE port
DIN Rail mount
IP40 high-impact metal enclosure
Extend temperature from -40℃ to 75℃

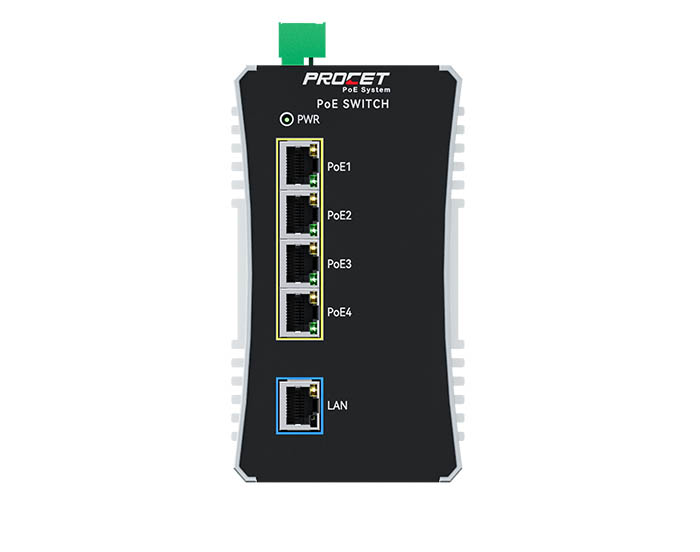

Diagnostic LEDs
Part NumberPT-PIS4PB1T-AC
Ports conditionLAN Port*1, PoE Output Port*4, AC/DC Input Terminal Block *1
Regulatory ComplianceIEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000Mbps
Output 1Pin Assignment and Polarity:
3/6(+), 1/2(-),4/5(+), 7/8(-)
Output Power Voltage: 55Vdc/1.64A
User Port Power: 90W Guaranteen per port *4, Total power budget 160W
Input 1AC Input Voltage:100 to 240Vac
AC Input Current: 3.0A
Frequency: 50/60Hz
Output 2Output Power Voltage:  48-55Vdc, 1.64A
User Port Power: 90W Guaranteen per port*4,
Total power budget 360W(max)
Input 2DC Input Voltage:48 to 55 Vdc, 7.5A
Working EnvironmentOperating Temperature: -40℃ to 75℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 4KV
Differential mode surge protection (10/700us): 1.5KV
Mechanical CharacteristicsCase: Metal
Color: Black and Silver
Mounting: DIN-rail
IP Rated: IP40
Connectors: Shielded RJ-45*5
Size: 76mmX 95.1mmX 146mm
Weight: 1230 g(2.71 lb)
LED IndicatorPower Indicator : Green
PoE Load Indicator : Yellow
SFP fiber indicator:Green
Lan data indicator: Yellow
