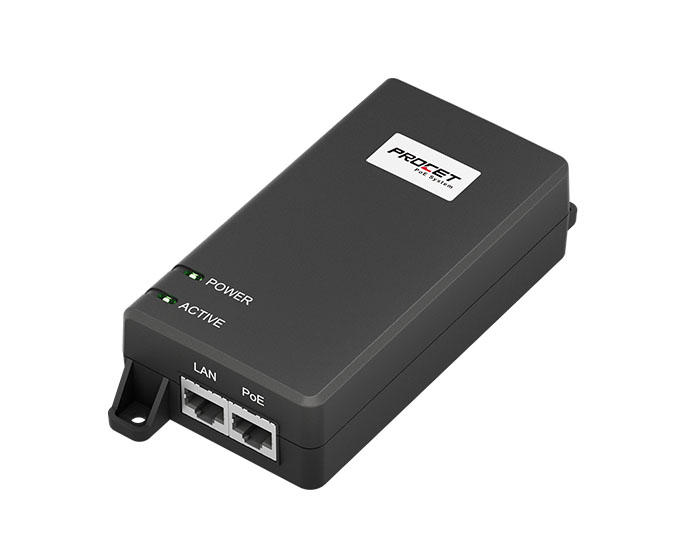

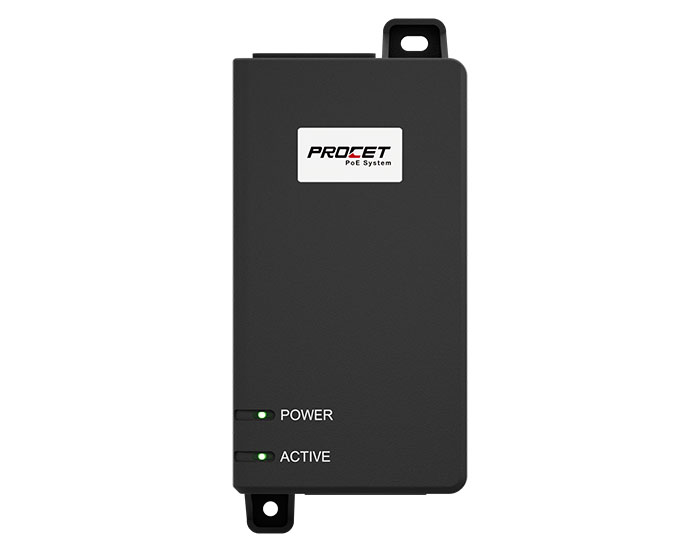

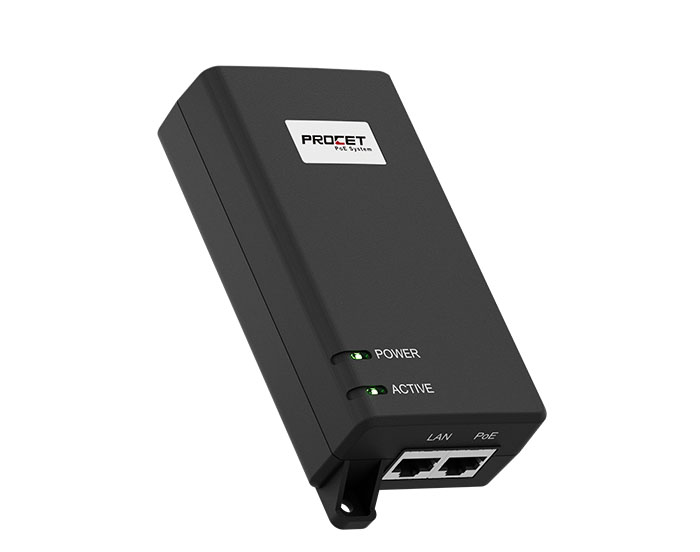

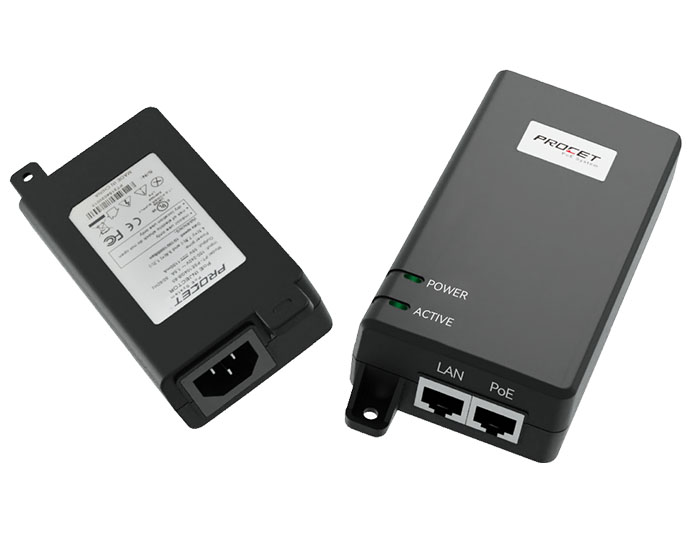

PT-PSE104GO-30 is an indoor rated PoE midspan Injector specia ly designed for complex backhaul and networking applications. Enclosed in an IP40 fire retard ant plastic case.
After negotiating IEEE802.3at standard PoE, the single PoE output port delivers 55Vdc, 0.55A up to 30W power for remote PDs over 2 Pair at 10/1 00/1000Mbps data rates. It works with a wide input voltage of 100-240VAC, 50 or 60 Hz and operates under -40°C to +65°C.
It fully complies with IEEE802.3at and remains compatible with any IEEE802 .3af compliant devices, such as IP Cameras, wireless APs, Microwave radio, loT application, door locks, displays, POS, and information kiosks.
Specifications
| Item | PT-PSE104GO-30 |

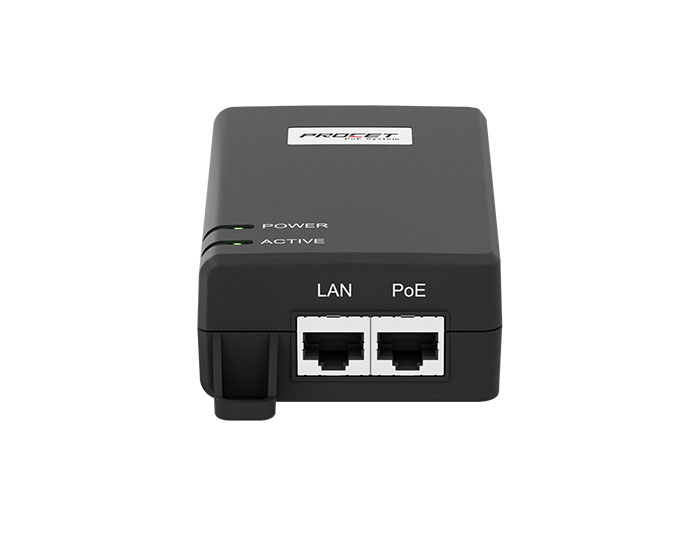

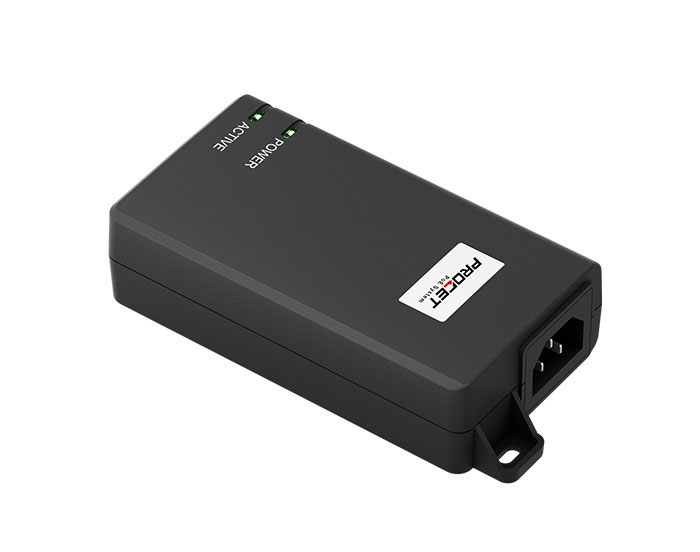

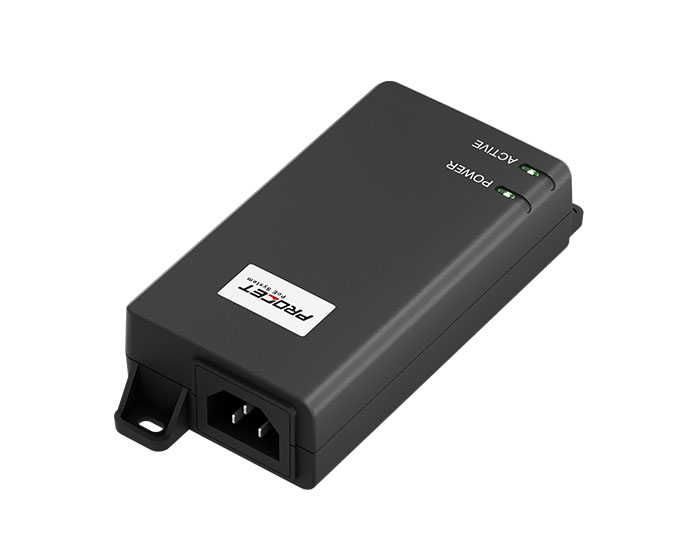

| Ports | AC Input*1 PoE*1 LAN*1 |
| PoE Standard | IEEE802.3af/at Power over Ethernet |
| Input | 100-240Vac 1.5A Max 50/60Hz |
| PoE Output | 55Vdc 0.55A 30W Max |
| Power Pins | 4/5(+),7/8(-) |
| EMI & EMS | FCC CFR47 Part 15, EN55032, EN55035 IEC61000-4-2(ESD) ±4KV (contact), ±8kV(air) IEC61000-4- 3(RS) 3V/m(80MHz~1000MHz) IEC61000-4-4(EFT) Power Port: ±1kV, Data Port: ±0.5kV IEC61000-4-5(Surge) Line to Line:±1kV, Line to Earth: ±2kV IEC61000-4-6(CS) 3V(0.15MHz~10MHz) |
| AC Surge Protection | Line-Earth 1.2/50us(8/20us): 2KV Line-Line 1.2/50us(8/20us): 1KV |
| Network Protocol | IEEE802.3 Ethernet IEEE802.3u Fast Ethernet IEEE802.3ab Gigabit Ethemnet |
| Data Rate | 100/1000Mbps |
| Operate Temperature | -40°C to 65°C |
| Operate Humidity | 20%-80%，non-condensing |
| Operate Altitude | Below 5000 meters |
| Storage Temperature | -40°C to 85°C |
| Storage Himidity | 10%-90%，non-condensing |
| Enclosure | Plastic |
| Installation | Wall-Mounted Installation |
| IP Rate | IP40 |
| Size & Weight | 145.5mm X 65.8mm X 33.5mm(255g) |
| Certification | CE/FCC/UL/cUL |
