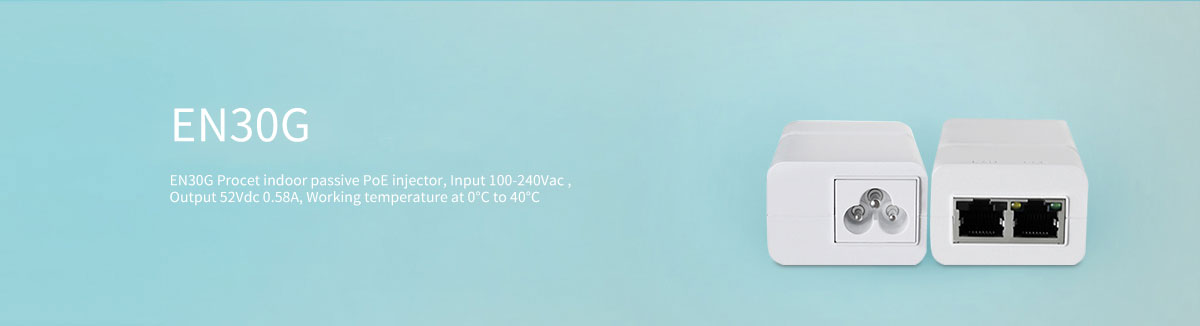

EN30G Indoor 30W PoE Injector with 2 Pair output to 30watts of power at Output 52Vdc 0.58A.
Designed for the passive powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.

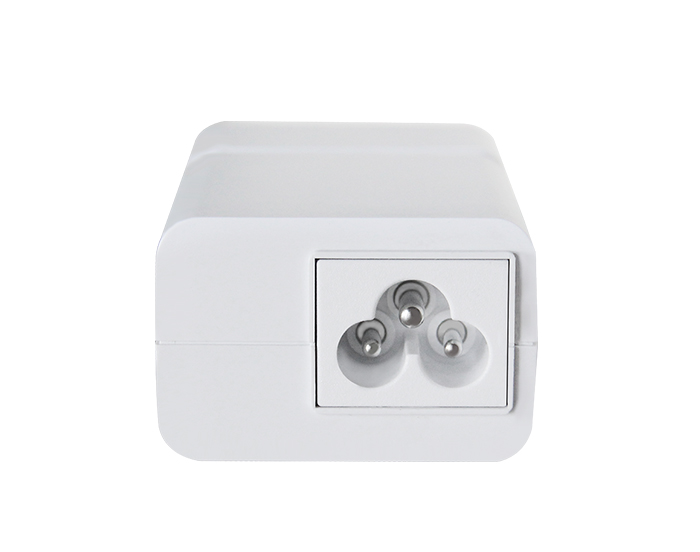

Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with a Wall-plug mouted. It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables
Specifications
| Parameter | Description |
| Key Features | Single-port 10/100/1000Mbps Input 100-240Vac 1.0A 50/60Hz output: 52Vdc. 0.58A 30W Power pin: 4/5+,7/8- Power cable with US/EU optional AC input: 3wire |
| Part Number | EN30G |
| Ports condition | LAN Port*1, PoE Output Port*1,AC input port*1 |
| Regulatory Compliance | passive RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5(+), 7/8(-) Output Power Voltage: 52Vdc 0.58A User Port Power: 30W Guaranteen |
| Input | Input Voltage: 100-240Vac Frequency: 50/60Hz Typ |
| Working Environment | Operating Temperature: 0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV |

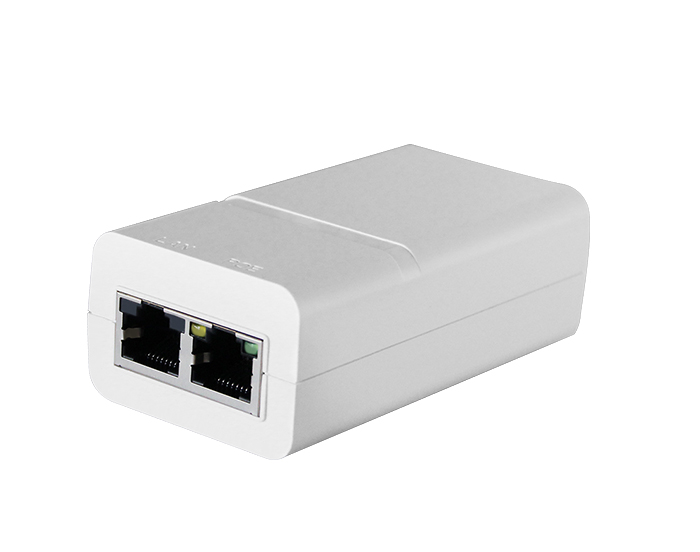

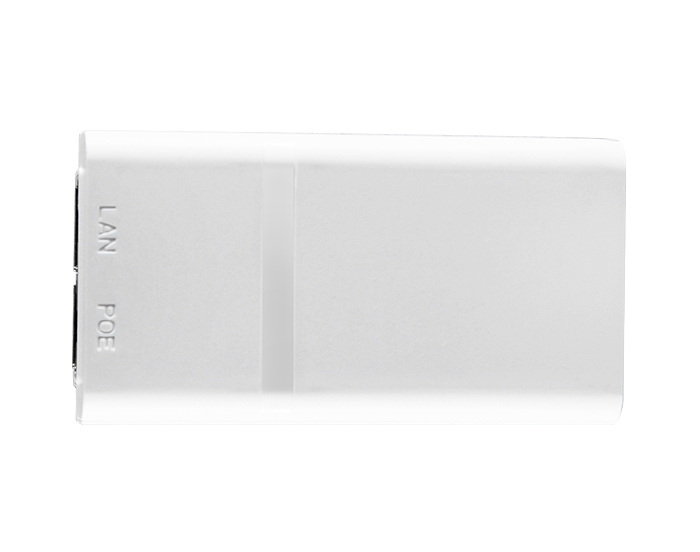

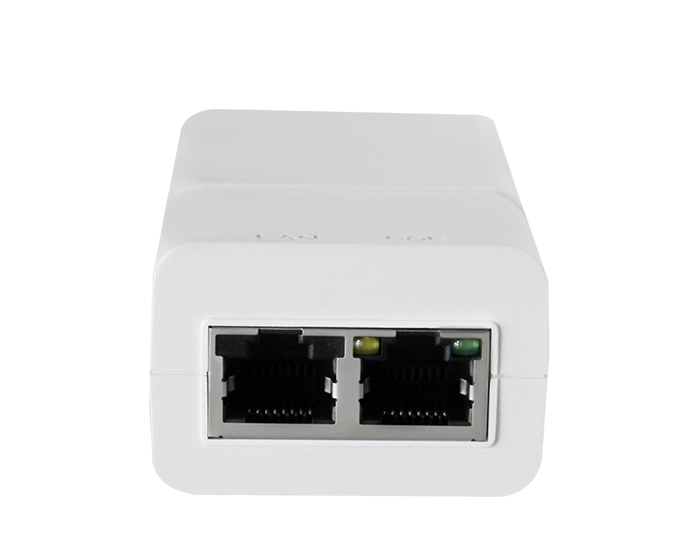

| Mechanical Characteristics | Case: Plastic Color: White Mounting: Wall-plug IP Rated: IP40 Connectors: Shielded RJ-45*2 Size: 92*51*32mm Weight: 130g(0.35lb) |
| LED Indicator | Power Indicator: Yellow PoE Load Indicator: Green |
| Safety Approvals | CE, FCC |
Standing Stock
| Product Order Info.(Model) | EN30G |
| Stock Quantity | 500 PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | within 2-3 weeks |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty:40pcs/carton G.W.:12Kgs Volume:0.055 m³ Packing: Export Carton Pallet size:110 x 110cm |
