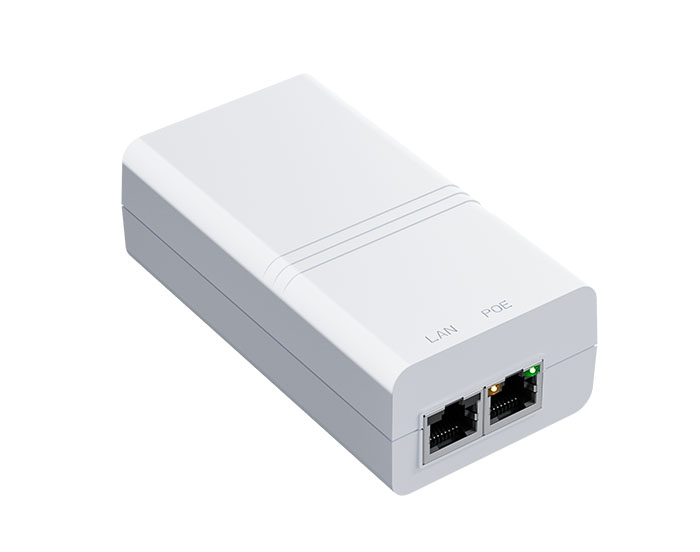

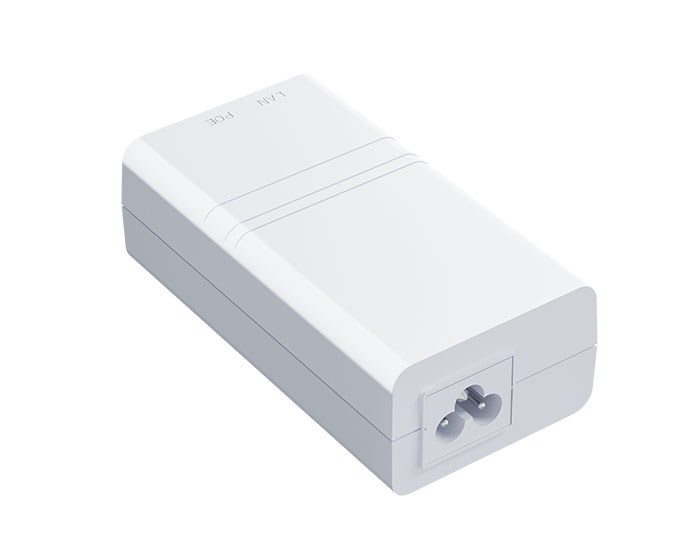

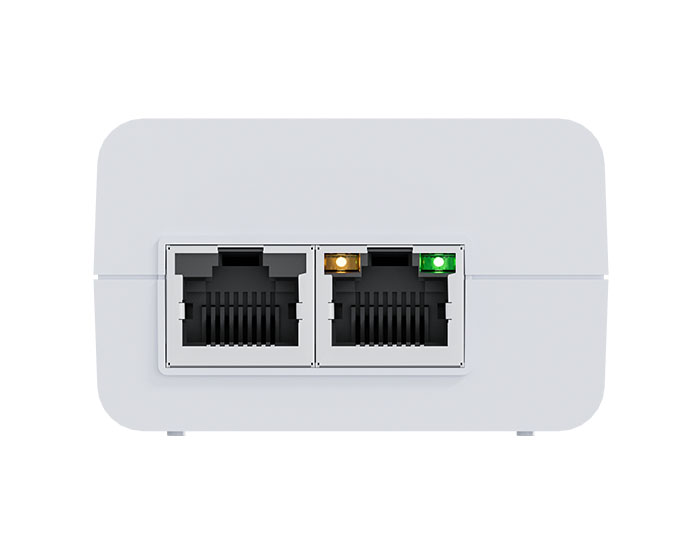

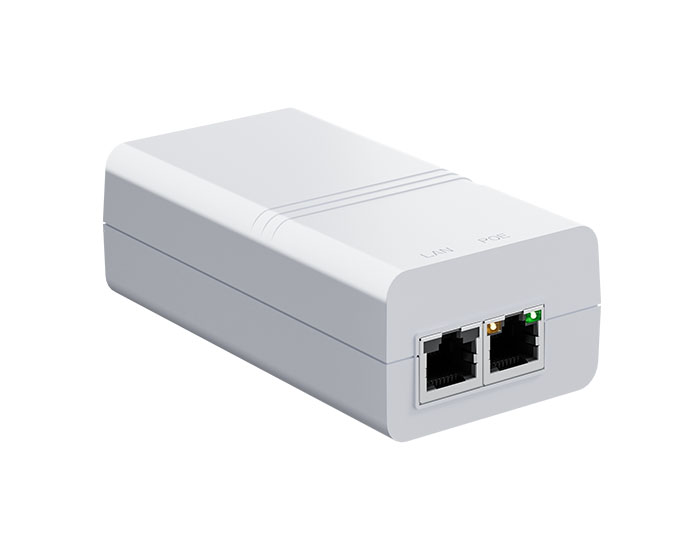

The EN30GT-10 is a compact, single-port PoE injector that operates on an input voltage of 100- 240VACand delivers up to 30W of output power. Fully compliant with IEEE 802.3at, it is equipped with an intelligentdetection chip that identifies and classifies Powered Devices (PDs) before supplying power, ensuring protec-tion for non-PoE equipment. It supports network data transmission rates of up to 10Gbps.
Housed in a flame-retardant IP40 plastic enclosure, the EN30GT-10 is designed for indoor desktop installa-tion. Its sleek, white, space-saving form factor allows for easy deployment in limited spaces.
Ideal for IP cameras, communication equipment, security systems, loT devices, displays, POS terminals, and information kiosks, it provides a maximum transmission distance of 100 meters over Cat5e/Cat6 cabling.
Specifications
| Item | EN30GT-10 |
| Ports | AC Input*1 PoE*1 LAN*1 |
| PoE Standard | IEEE802.3af/at Power over Ethernet |
| Input | 90-264Vac |
| PoE Output | 52Vdc 0.58A 30W Max |
| Power Pins | 4/5(+),7/8(-) |
| Energy Effiency | ≥85% |
| NLPC | ≤1.5W |
| Surge Protection | AC Port : Common Mode: 2KV Differential Mode: 1KV |
| Data Rate | 100/ 1000Mbps 2.5/5/10G |
| Network Protocol | IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Giga bit Ethernet IEEE802 3bz 2.5/5/10GbE NBASE-T |
| Operate Temperature | 0°C- 40°C |
| Operate Humidity | 20%-80%，non-condensing |
| Storage Temperature | -20°C一70°C |
| Storage Himidity | 10%-90%，non-condensing |
| Enclosure | White Plastic |
| Installation | Wall-Mounted Installation |
| IP Rate | IP40 |
| Size & Weight | 107.3mm X 56mm X 31mm(155g) |
| Certification | CE/FCC/ERP |
