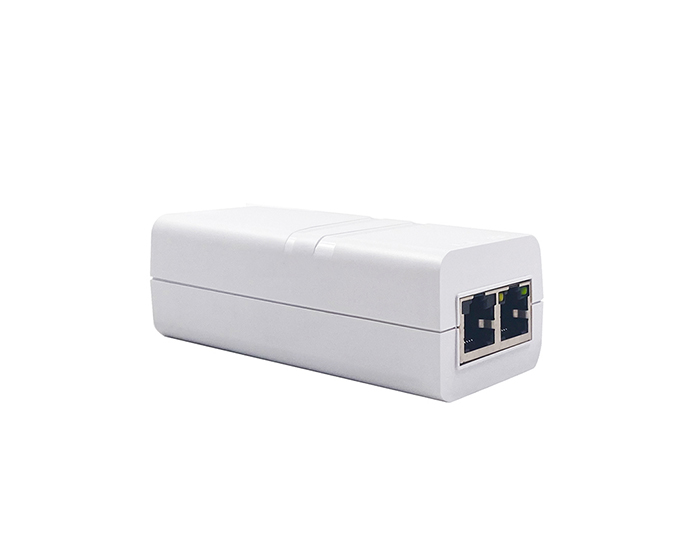

EN30GT 30W PoE injector

EN30GT is a single port midspan Injector with 2 Pair PoE up to 30.16 watts of power at 52 VDC at 0.58 Amp.signed for the PoE-powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application and other support 802.3at input devices. The data rate is 10/100/1000Mbps. Fully comply with IEEE802.3at and backward compatible with 802.3af standard.

Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

Enclosed in an IP40 fire retardant plastic case, designed for indoor use. It operates with a wide input voltage of 100-240VAC, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender)

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key FeaturesGigabit data rates
Smaller in size but higher performance
AC power cord with optional US or EU plug or other standard plug
Diagnostic LEDs
Economical PoE
Part NumberEN30GT

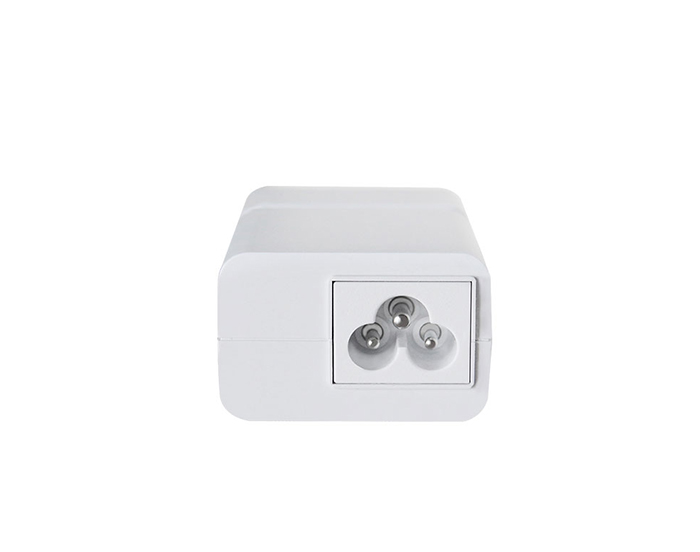

Ports conditionLAN Port*1, AC Input Port*1, PoE Output Port*1
Regulatory ComplianceIEEE802.3at
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:
4/5 (+), 7/8 (–)
Output Power Voltage: 52Vdc
User Port Power: 30.16W Guaranteen
InputAC Input Voltage:90 to 264Vac(100 to 240Vac Rated)
Frequency: 47 to 63Hz (50/60Hz Typ.)
Working EnvironmentOperating Temperature: 0℃ to 40℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -20℃ to 70℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 2000meters
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV
Mechanical CharacteristicsCase: Plastic
Color: White
Mounting: Place on desk
IP Rated: IP40

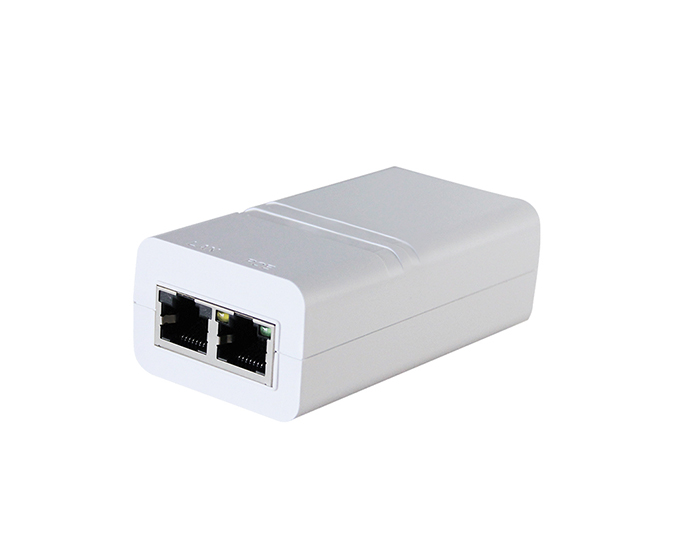

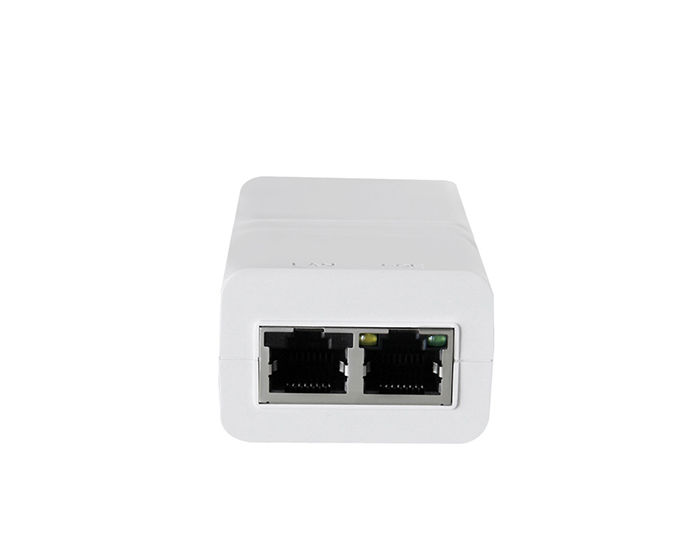

Connectors: Shielded RJ-45*2
Size: 107.3mm X 56mm X 34.5mm
Weight: 146g(0.32lb)
LED IndicatorPower Indicator : Yellow
PoE Load Indicator : Green
Safety ApprovalsCE/FCC/UL
