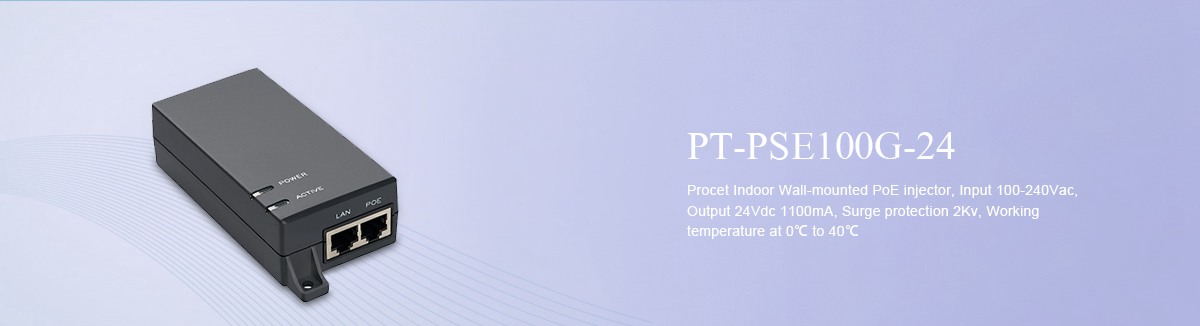

PT-PSE100G-24 26W 24Vdc Output PoE Injector

PT-PSE100G-24 is a 26W 24Vdc Output PoE Injector with 2 Pair PoE up to 26 watts of power at 24 Vdc at 1100mA.

Designed for the required powered 26W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.

Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with wall-mounted. It operates with a wide input voltage of 100-240 Vac, 50 or 60 Hz.The effective distance limitation of 100 meters over Cat5e/Cat6 cables

can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender)

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock


Key FeaturesOutput: 24Vdc 1.1A, 26W
Power Pin: 4/5(+), 7/8(-)
Transmission Rate: 10/100/1000Mbps
Part NumberPT-PSE100G-24
Ports conditionLAN Port*1, AC Input Port*1, PoE Output Port*1
Regulatory ComplianceRoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:
4/5 (+), 7/8 (–)
Output Power Voltage: 24Vdc
User Port Power: 26W Guaranteen
InputAC Input Voltage: 100 to 240 Vac
Frequency: 50/60Hz
Input Current: 1A
Working EnvironmentOperating   Temperature: 0 to 40
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -20
to 70
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 2000meters
AC Surge ProtectionLine-Earth   1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV
Mechanical CharacteristicsCase: Plastic
Color: Black
Mounting: Wall-mounted
IP Rated: IP40

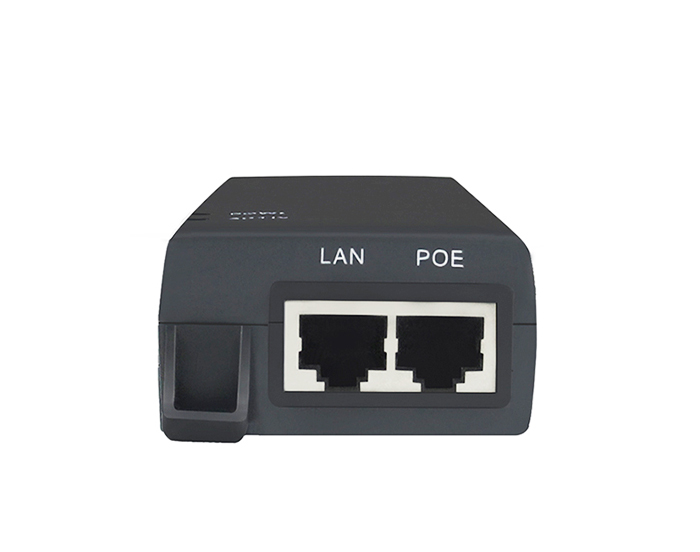

Connectors: Shielded RJ-45*2
Size: 134mmX 56mmX 33mm
Weight: 150g5.3oz

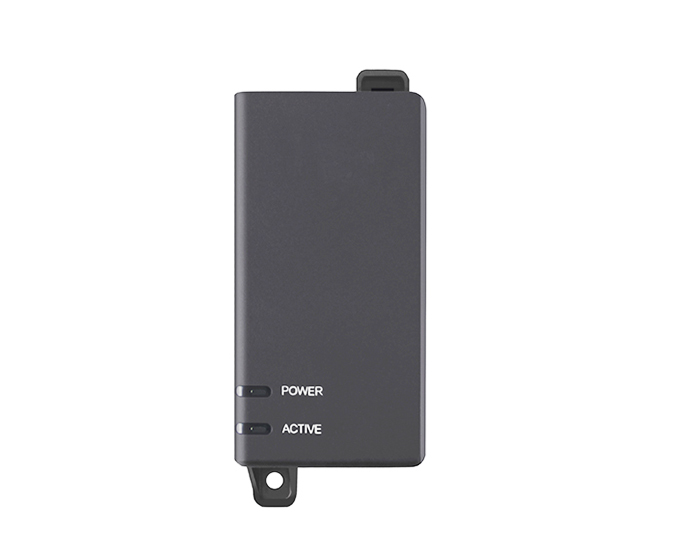

LED IndicatorPower Indicator : Green
PoE Load Indicator : Green
Safety ApprovalsCE
