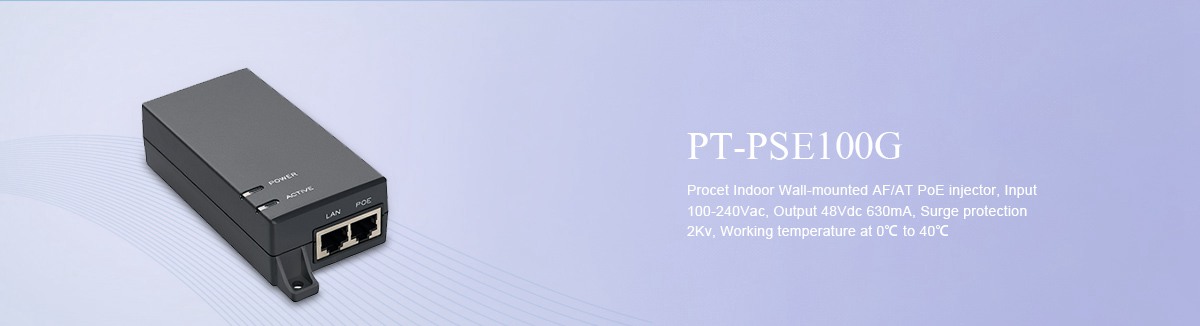

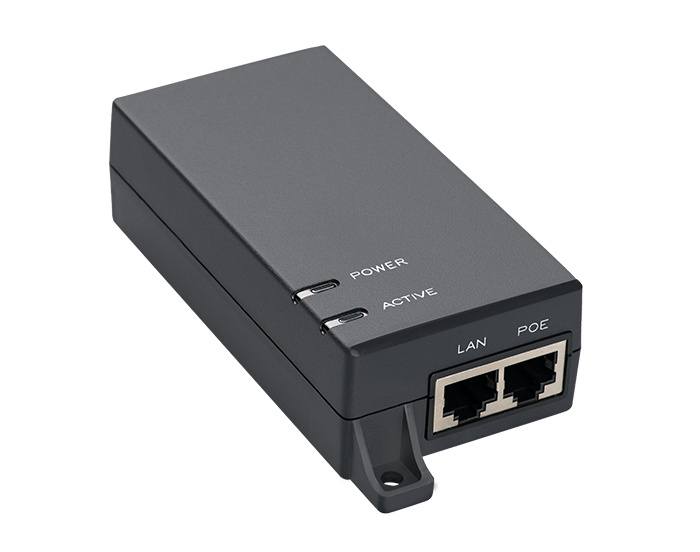

PT-PSE100G 802. 3at PoE injector

PT-PSE100G is a 802. 3at PoE injector with 2 Pair PoE up to 30 watts of power at 48 VDC at 0.63 amp.


Designed for the passive powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3at and remains compatible with any IEEE802.3af compliant devices. It supports terminal equipments with IEEE802.3af/at standard.


Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with Wall-mounted. It operates with a wide input voltage of 100-240 VAC, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.

Can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).


  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Part NumberPT-PSE100G
Ports conditionLAN Port*1, AC Input Port*1, PoE Output Port*1
Regulatory CompliancePassive
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:
4/5 (+), 7/8 (–)
Output Power Voltage: 48Vdc
User Port Power: 30W Guaranteen
InputAC Input Voltage: 100-240 Vac
Frequency: 47 to 63Hz (50/60Hz Typ.)
AC Input Current: 0.63A
Working EnvironmentOperating Temperature: 0℃ to 40℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -20℃ to 70℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 2000meters
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV
Mechanical CharacteristicsCase: Plastic
Color: Black
IP Rated: IP40

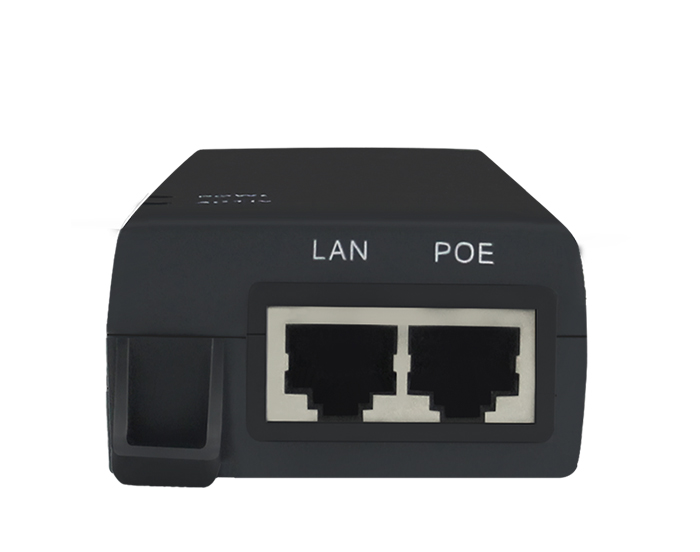

Connectors: Shielded RJ-45*2
Size: 134mmX 56mmX 33mm
Weight: 175g(6.2oz)

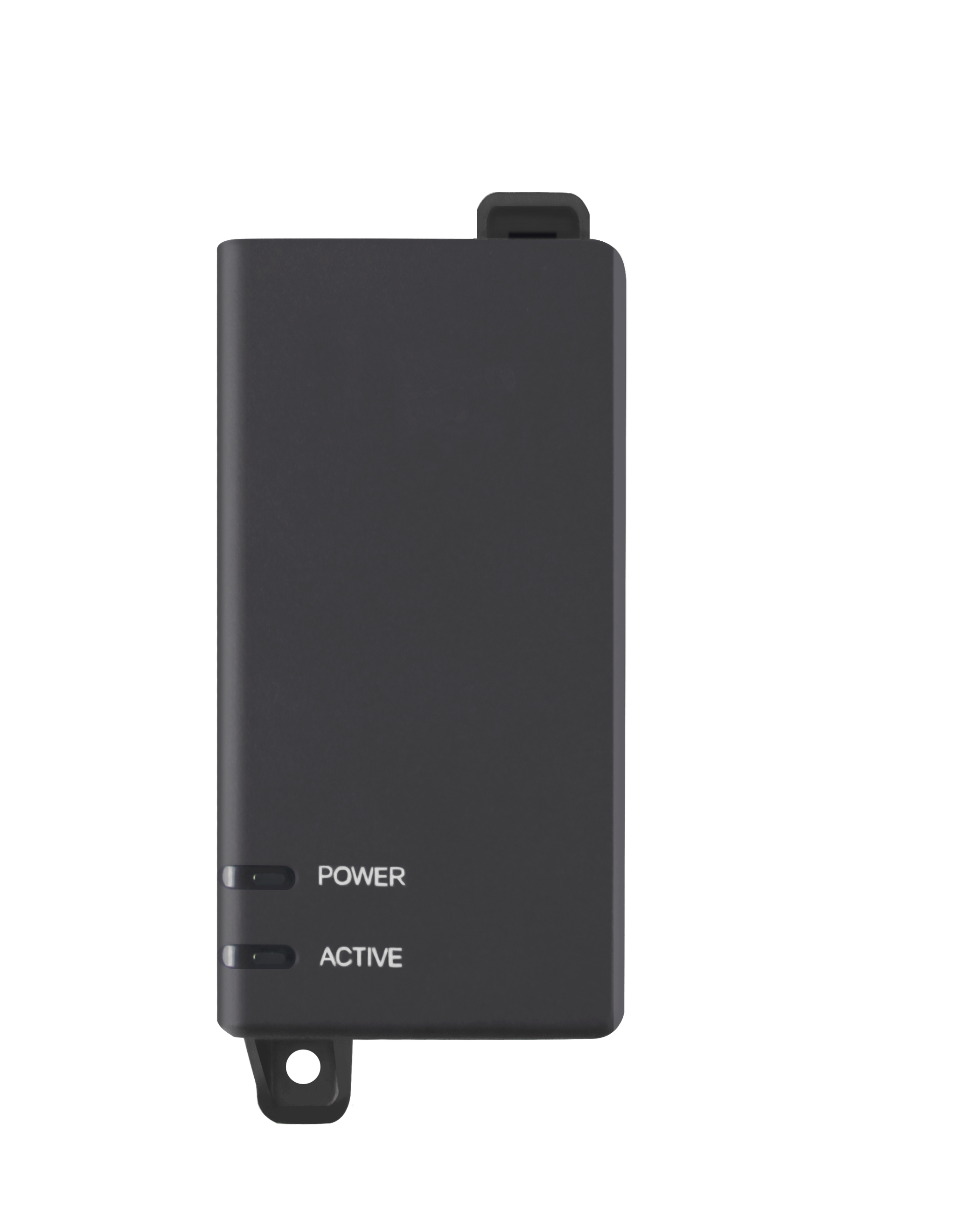

LED IndicatorPower Indicator : Green
PoE Load Indicator : Green
Safety ApprovalsCE/FCC
