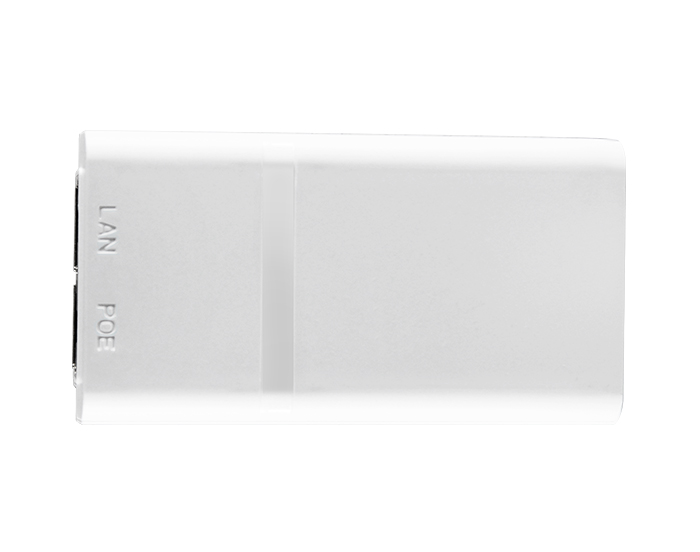

PT-PSE30G-24-2 Passive PoE Injector Gigabit

PT-PSE30G-24-2 is a Passive PoE Injector Gigabit with 2 Pair output to 28 watts of power at 24Vdc, 1.2Amp.

Designed for the passive powered 28W PoE Powered Devices (PDs), such as IP Cameras,wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.

Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with a Wall-plug mouted. It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock


Key FeaturesSingle-port
Input 100-240Vac 0.5A 50/60Hz
output 24Vdc 1.2A 28 W
Power pin: 4/5+,7/8-
Power cable with US/EUoptiona

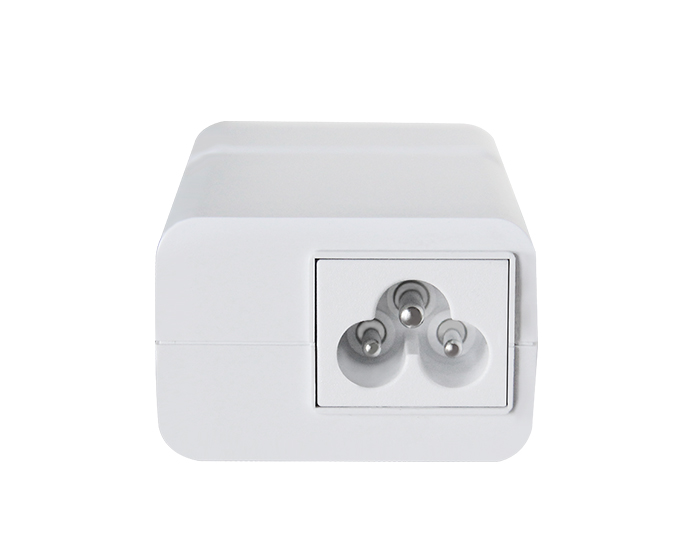

AC input: 2 wire
Part NumberPT-PSE30G-24-2
Ports conditionLAN Port*1, PoE Output Port*1
Regulatory Compliancepassive
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:
4/5(+), 7/8(-)
Output Power Voltage: 48Vdc
User Port Power: 28W Guaranteen
InputInput Voltage: 100-240Vac
Frequency: 50/60Hz Typ
Working EnvironmentOperating Temperature: 0℃ to 40℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -20℃ to 70℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 2000meters
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV
Mechanical CharacteristicsCase: Plastic
Mounting: Wall-plug
IP Rated: IP40

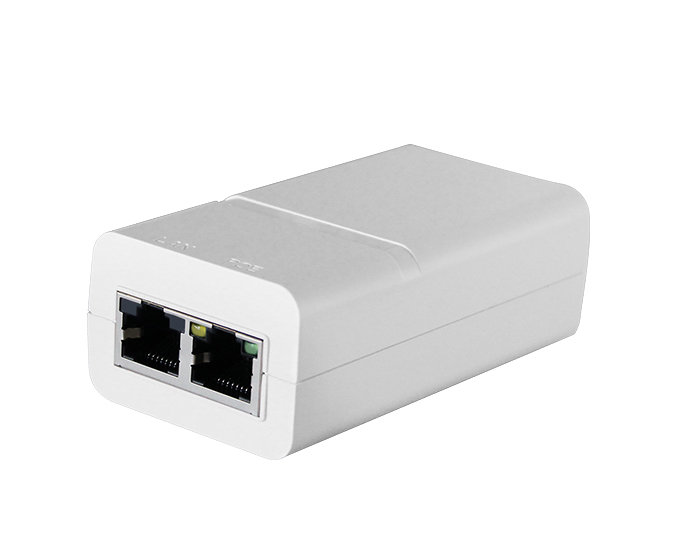

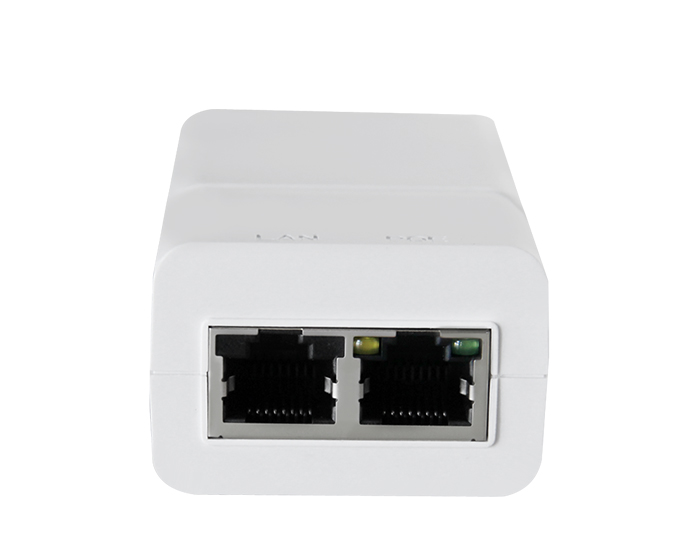

Connectors: Shielded RJ-45*2
Size: 92*51*32mm
Weight: 130g(0.35lb)
LED IndicatorPower Indicator: Red
PoE Load Indicator: Green
Safety ApprovalsCE,   FCC


Standing Stock

Product Order Info.(Model)PT-PSE30G-24-2
Stock Quantity50PCS
Warehouse Location Dongguan China
Sample Delivery TimeWithin 24H
Bulk Stock Delivery TimeWithin 48H
Shipping WayDHL,UPS,FedEx,TNT,
Customer Nominated Forwarder
Packing SizeQty:20pcs/carton
Volume:0.055 m³
Packing: Export Carton
Pallet size:110 x 110cm
