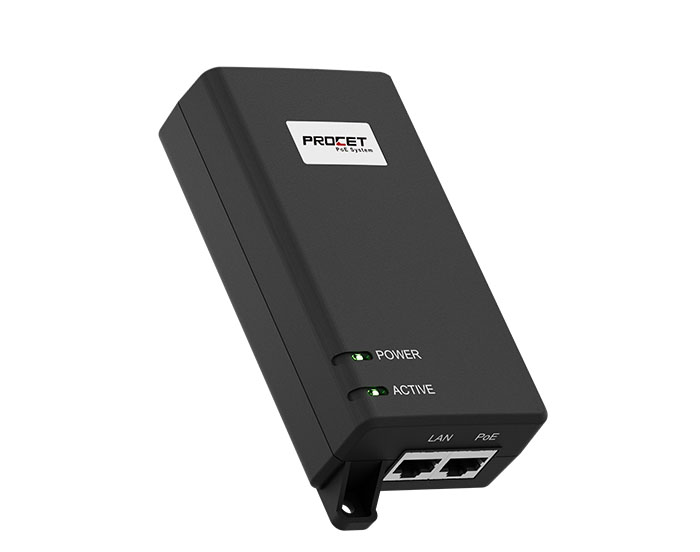

The PT-PSE101GROA-10-VI is a compact, single-port PoE injector delivering up to 30W to IEEE802.3at-compliant Powered Devices such as IP cameras, wireless APs, loT devices, POS terminals, and digital displays. It is ERP Energy Efficiency Class VI compliant for reduced power consumption and greater efficiency.
With an intelligent detection chip, it identifies and classifies devices before powering, protecting non-PoE equipment. It supports 1G/2.5G/5G/10Gbps data rates and transmits up to 100m over Cat5e/Cat6 cables.
Featuring a 90-264VAC input range, 6KV surge protection, and a flame-retardant IP40 enclosure, it is designed for indoor wall-mount installation and operates in temperatures from -40°C to +65°C.
Specifications
| Item | PT-PSE101GROA-10-VI |

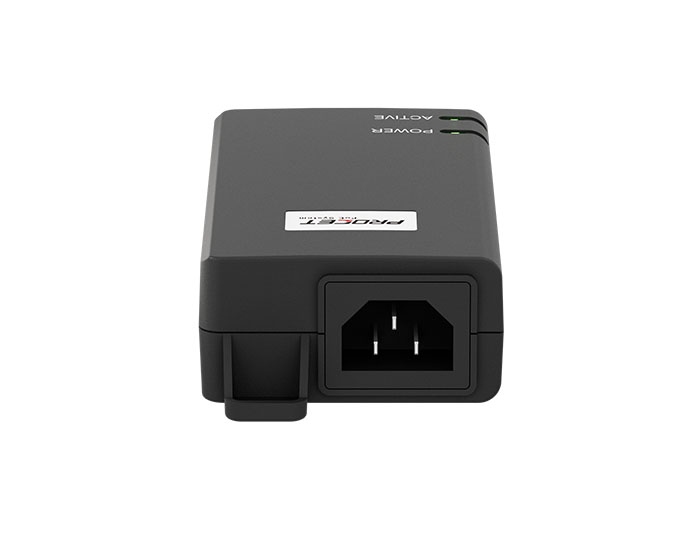

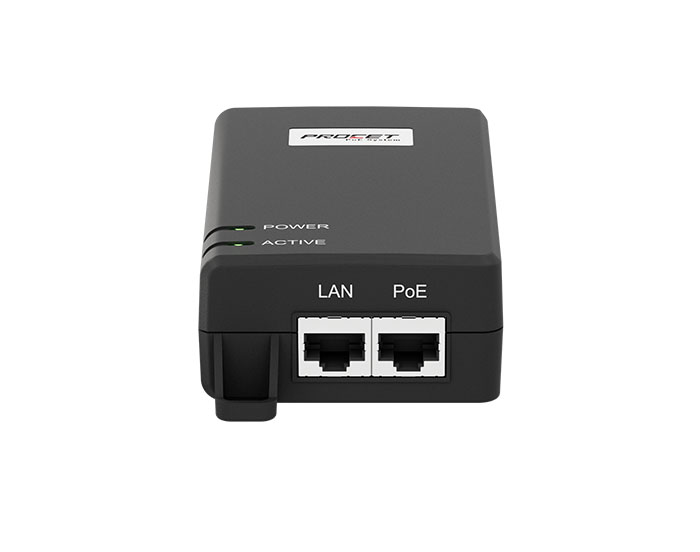

| Ports | AC Input*1 PoE*1 LAN*1 |
| PoE Standard | IEEE802.3af/at Power over Ethernet |
| Input | 90-264Vac |
| PoE Output | 55Vdc 0.55A 30W Max |
| Power Pins | 4/5(+),7/8(-) |
| Energy Efficiency | ≥88% |
| NLPC | ≤0.1W |
| Surge Protections | AC Port Common Mode: 6KV Differential Mode: 4KV PoE Port Common Mode: 6KV Differential Mode: 1.5KV |
| EER | ERP Level VI |
| Network Protocol | IEEE802.3 Ethernet IEEE802.3u Fast Ethernet IEEE802.3ab Gigabit Ethernet IEEE802.3bz 2.5/5/10GbE NBASE-T |
| Data Rate | 1G/2. 5G/5G/10Gbps |
| Operate Temperature | -40°C- 65°C |
| Operate Humidity | 20%-80%，non-condensing |
| Operate Altitude | Below 5000 meters |
| Storage Temperature | -40°C- 85°C |
| Storage Himidity | 10%-90%，non-condensing |
| Enclosure | Plastic |
| Installation | Wall-Mounted Installation |
| IP Rate | IP40 |
| Size & Weight | 139 .5mm X 62.5mm X 32.5mm(191g) |
| Certification | CE/FCC/ERP |
