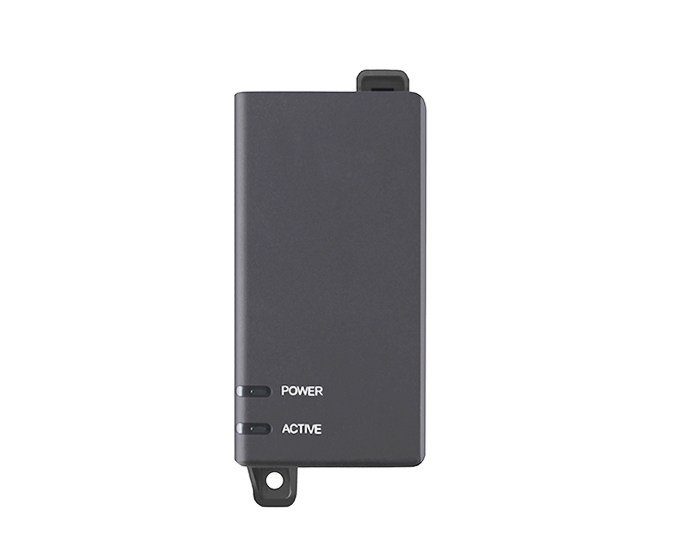

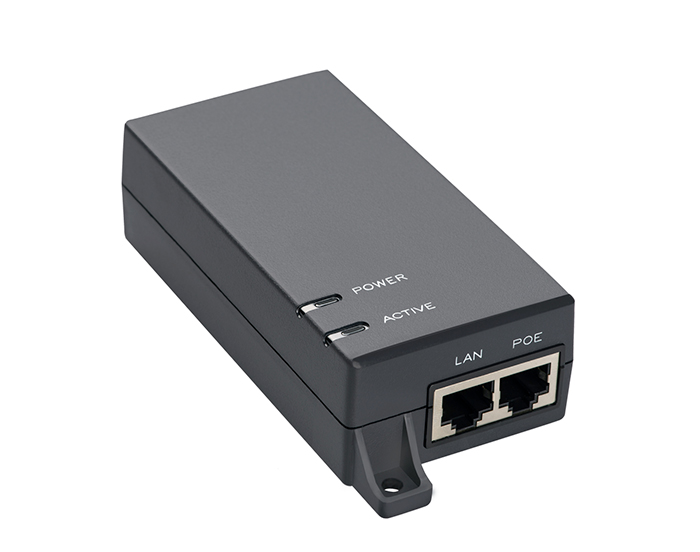

PT-PSE100GF is a15.4W AF PoE injector with 2 Pair PoE up to 15.4 watts of power at 48Vdc, 0.32A amp. Designed for the AF-powered 15.4W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.
Fully comply with IEEE802.3af devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non-PoE device.
Enclosed in an IP40 fire retardant plastic case, designed for indoor use, installation with Wall-mounted. It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.Can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).
Specifications
Parameter | Description |
Key Features | af standard 15W indoor PoE injector |
Part Number | PT-PSE100GF |

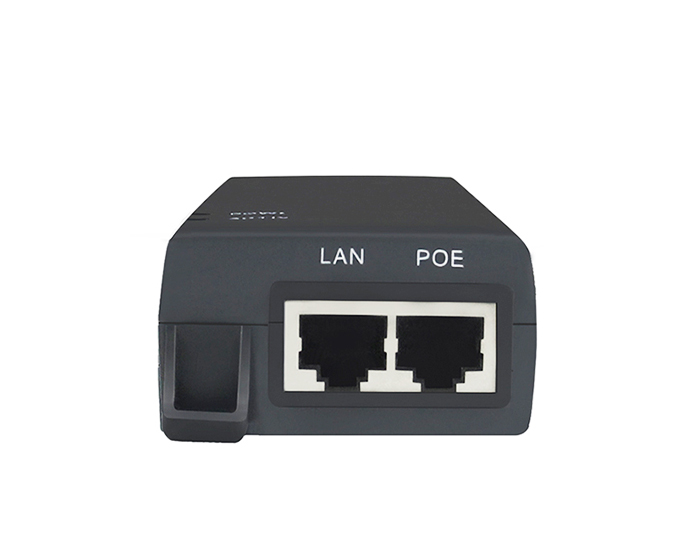

Ports condition | LAN *1, AC Input*1, PoE Output *1 |
PoE output | 15.4W |
Data rates | 10/100/1000 Mbps |
Power input | 100-240Vac,50/60Hz Typ |
Power output | 48Vdc 320mA 15.4W |
Regulatory Compliance | IEEE 802.3af RoHS Compliance WEEE Compliance |
Working Environment | Operating Temperature: 0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters |
AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV |
Mechanical Characteristics | Size: 134 X 56 X 33mm Weight: 170g(0.37lb) |
Safety Approvals | CE, FCC |
Standing Stock
Product Order Info.(Model) | PT-PSE100GF |
Stock Quantity | 500PCS |
Warehouse Location | Dongguan China |
Sample Delivery Time | Within 24H |
Bulk Stock Delivery Time | Within 48H |
Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |

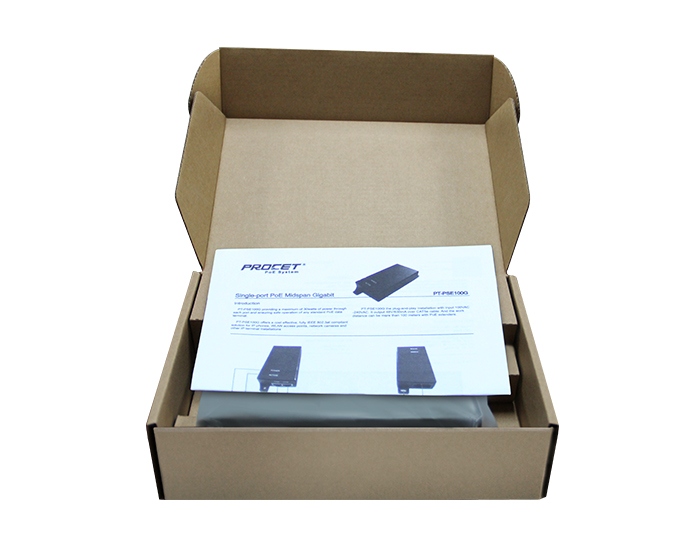

Packing Size | Qty: 20pcs/carton G.W.: 7.4Kgs Volume: 0.031 m³ Packing: Export Carton Pallet size:110 x 110cm |
