PT-PSE100GFN-24 is a single port midspan Injector with 2 Pair PoE up to 15.4 watts of power at 24 VDC at 0.65 amp.
Designed for the PoE powered 15.4W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. It will directly power PD without detection.
Enclosed in an plastic case. It operates with input voltage of 100-240 VAC, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.
Specifications
| Parameter | Description |
| Key Features | Passive 15.4W CE, FCC |
| Part Number | PT-PSE100GFN-24 |

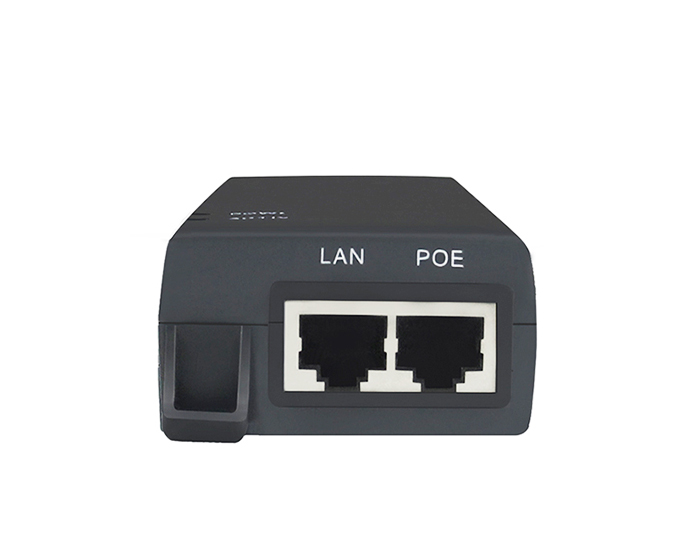

| Ports condition | LAN Port*1, AC Input Port*1, PoE Output Port*1 |
| Regulatory Compliance | RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) Output Power Voltage: 24Vdc User Port Power: 15.4W Guaranteen |
| Input | AC Input Voltage: 100 to 240 Vac AC Input Current: 0.5A Frequency: 50-60Hz |
| Working Environment | Operating Temperature: 0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV |

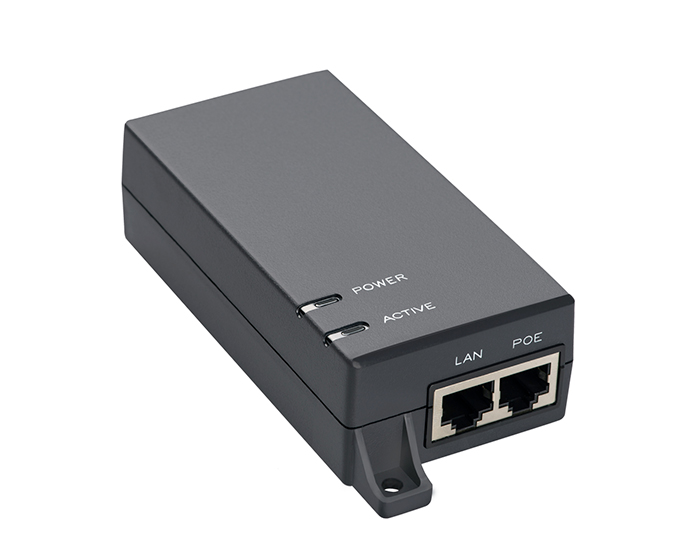

| Mechanical Characteristics | Case: Plastic Color: Black Mounting: Wall- mounted IP Rated: IP40 Connectors: Shielded RJ-45*2 Size: 134mmX 56mmX 33mm Weight: 150g(0.33lb) |

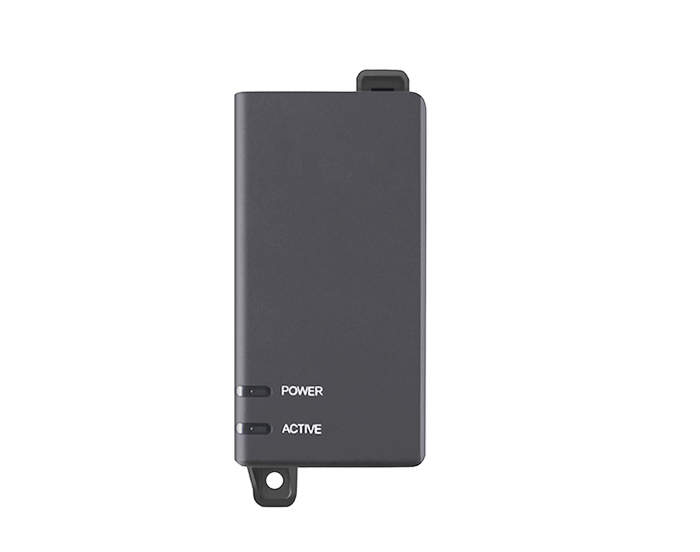

| LED Indicator | Power Indicator: Green PoE Load Indicator: Green |
| Safety Approvals | CE,FCC |
Standing Stock
| Product Order Info.(Model) | PT-PSE100GFN-24 |
| Stock Quantity | 500PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |

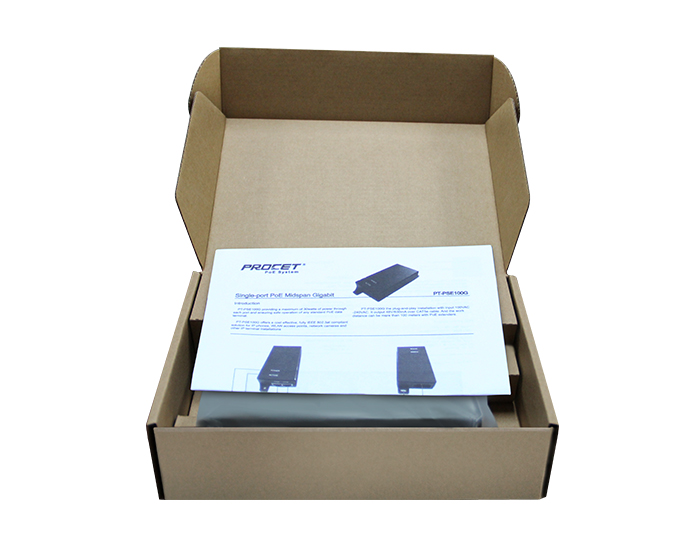

| Packing Size | Qty: 20pcs/carton G.W.: 7.4Kgs Volume: 0.031m³ Packing: Export Carton Pallet size:110 x 110cm |
