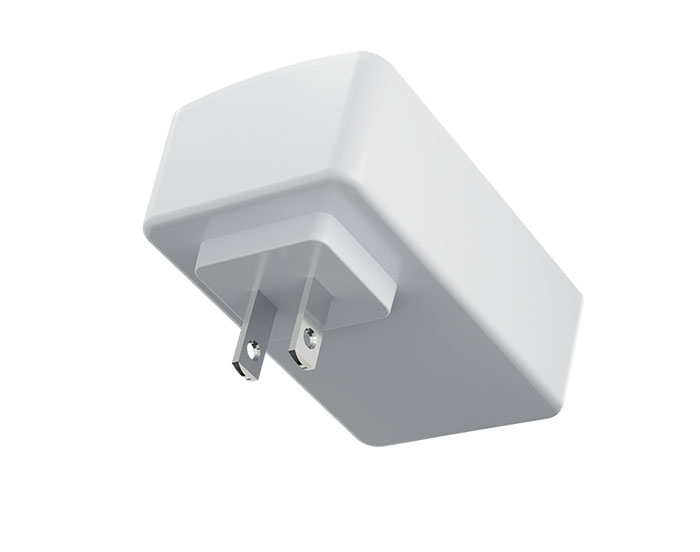

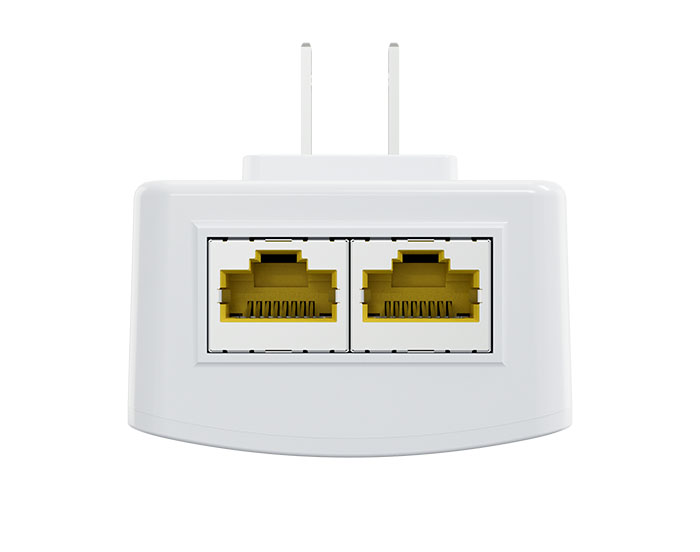

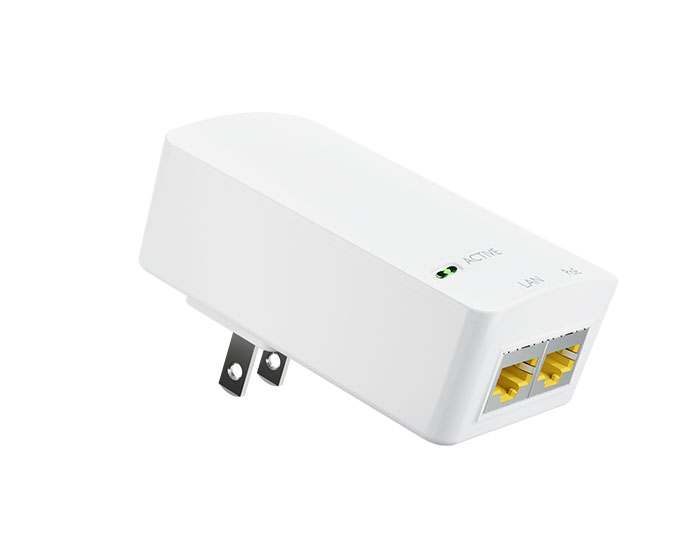

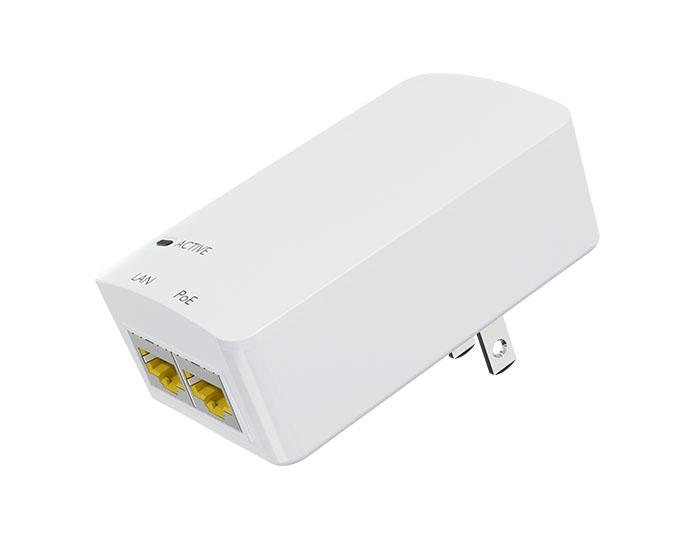

PT-PSE10GF-25 is a single- port PoE injector designed for indoor use. It operates reliably with an input voltage range of 90- 264VAC and supports network environments of 10/100/1000Mbps/2.5G. The injector connects to network terminal devices via Cat5e cables, with an effective transmission distance of up to 100meters.
The PT-PSE10GF-25 features a plastic enclosure, AC plug input, and is purpose-built for indoor installation.It delivers a maximum output power of 15.4W per port. With its white housing, desktop form factor, and compact size, it helps save installation space.
Specifications
| Iltem | PT-PSE10GF-25 |
| Ports | AC Input*1 PoE*1 LAN*1 |
| PoE Standard | IEEE802.3af Power over Ethernet |
| Input | 90-264Vac |
| PoE Output | 48Vdc 0.32A 15.4W Max |
| Power Pins | 4/5(+),7/8(-) |
| Energy Effiency | ≥85% |
| NLPC | ≤0.3W |
| Surge Protection | AC Port: Common Mode: 2KV Differential Mode: 1KV |
| Data Rate | 100/1000Mbps/2.5Gbps |
| Network Protocol | IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base -Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet IEEE802.3bz 2.5GbE NBASE-T |
| Operate Temperature | 0°C- 40°C |
| Operate Humidity | 20%-80%，non-condensing |
| Storage Temperature | -20°C一70°C |
| Storage Himidity | 10%-90%，non-condensing |
| Enclosure | White Plastic |
| Installation | Wall-Mounted Installation |
| IP Rate | IP40 |
| Plug | US/EU/UK Plug |
| Size & Weight | 82.97mm X 50.84mm X 53. 5mm(93g) |
| Certification | CE/FCC |
