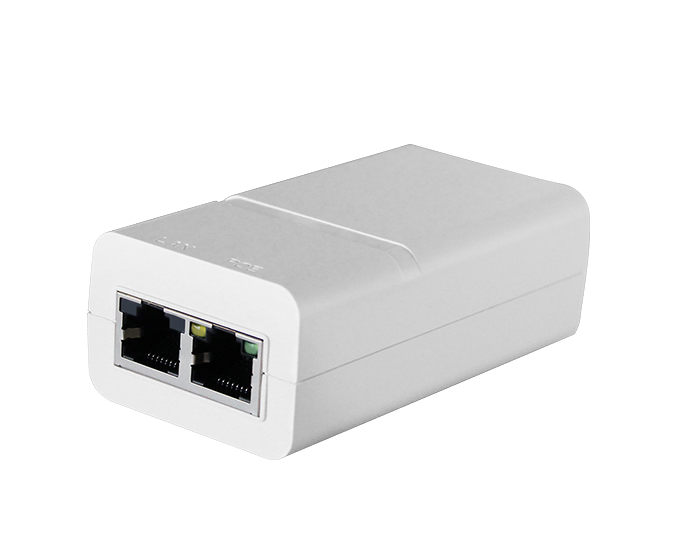

EN15G-24-3 is a single 15W Indoor PoE Injector with 2 Pair output to 15 watts of power at 24Vdc, 0.64Amp.
Designed for the passive powered 15W PoE Powered Devices (PDs), such as IP Cameras,wi-reless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.
Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with a Wall-plug mouted. It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables
Specifications
| Parameter | Description |

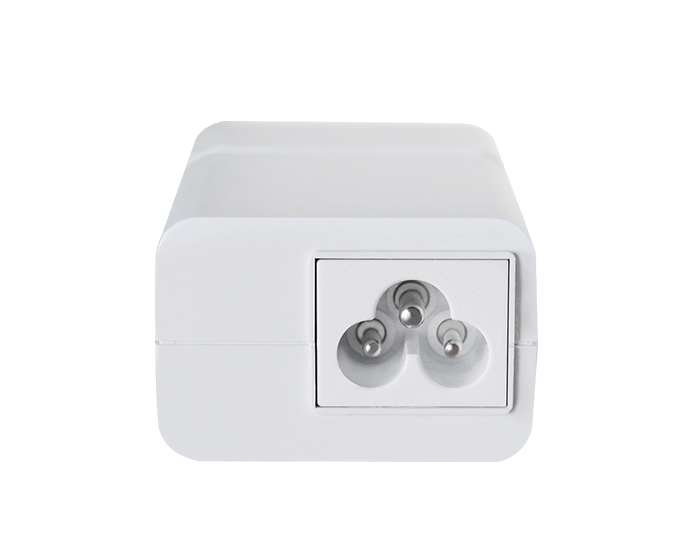

| Key Features | Single-port 10/100/1000Mbps Input 100-240Vac 0.5A 50/60Hz output 24Vdc 0.64A 15W Power pin: 4/5+,7/8- Power cable with US/EU optional AC input: 3 wire |
| Part Number | EN15G-24-3 |
| Ports condition | LAN Port*1, PoE Output Port*1，AC inout *1 |
| Regulatory Compliance | passive RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5(+), 7/8(-) Output Power Voltage: 24Vdc User Port Power: 15W Guaranteen |
| Input | Input Voltage: 100-240Vac Frequency: 50/60Hz Typ |
| Working Environment | Operating Temperature: 0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV |

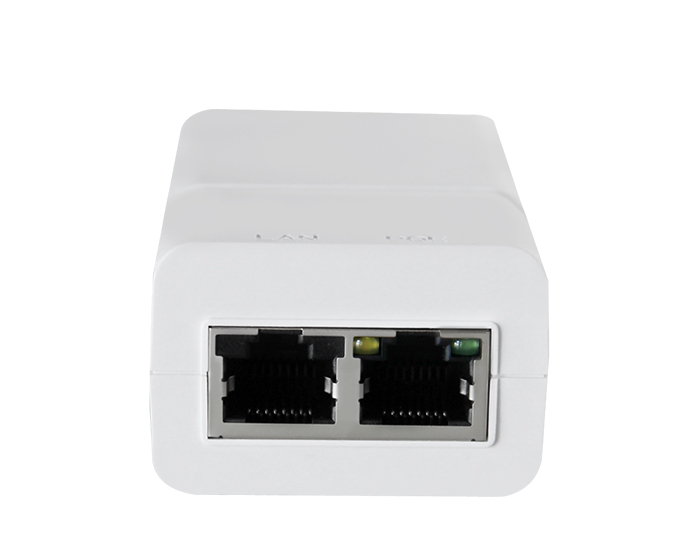

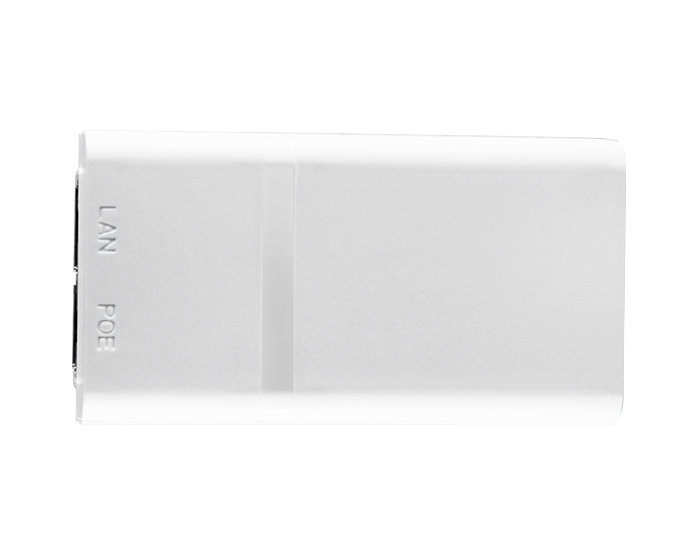

| Mechanical Characteristics | Case: Plastic Color: White Mounting: Wall-plug IP Rated: IP40 Connectors: Shielded RJ-45*2 Size: 85*46*30mm Weight: 100g(0.27lb) |
| LED Indicator | Power Indicator: Yellow PoE Load Indicator: Green |
| Safety Approvals | CE, FCC |
Install Video
Standing Stock
| Product Order Info.(Model) | EN15G-24-3 |
| Stock Quantity | 500 PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | within 2-3 weeks |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty:40pcs/carton G.W.:9.4Kgs Volume:0.055 m³ Packing: Export Carton Pallet size:110 x 110cm |
