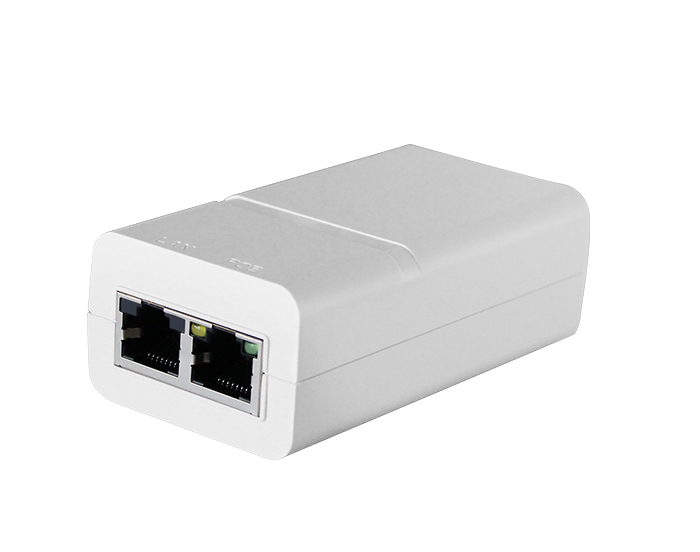

EN15GF is a single port midspan Injector with 2 Pair PoE up to 15.36 watts of power at 48 VDC at 0.32 Amp.
Designed for the PoE powered 15.36W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application and other support 802.3af input devices. The data rate is 10/100/1000Mbps. Fully comply with IEEE802.3af standard.
Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.
Enclosed in an IP40 fire retardant plastic case, designed for indoor use. It operates with a wide input voltage of 100-240VAC, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender)

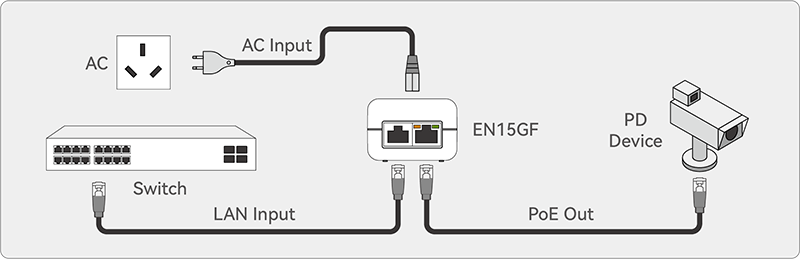

Product connection diagram：
Specifications
| Parameter | Description |
| Key Features | af standard 15W indoor PoE injector |
| Part Number | EN15GF |

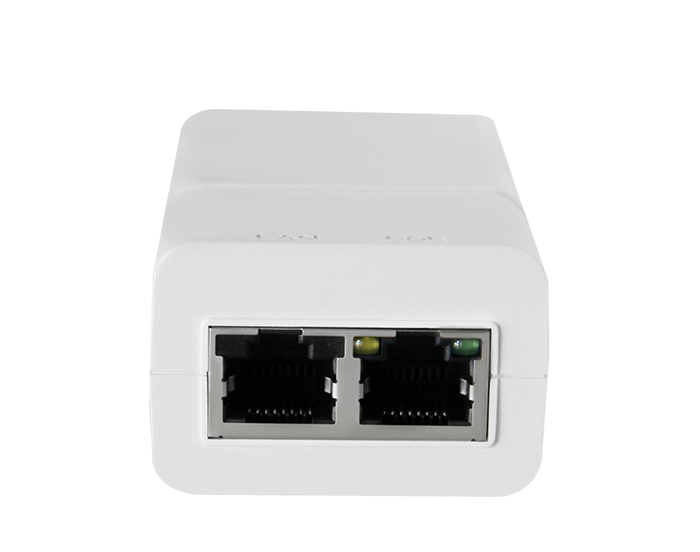

| Ports condition | LAN *1, AC Input*1, PoE Output *1 |
| PoE output | 15.36W |
| Data rates | 10/100/1000 Mbps |

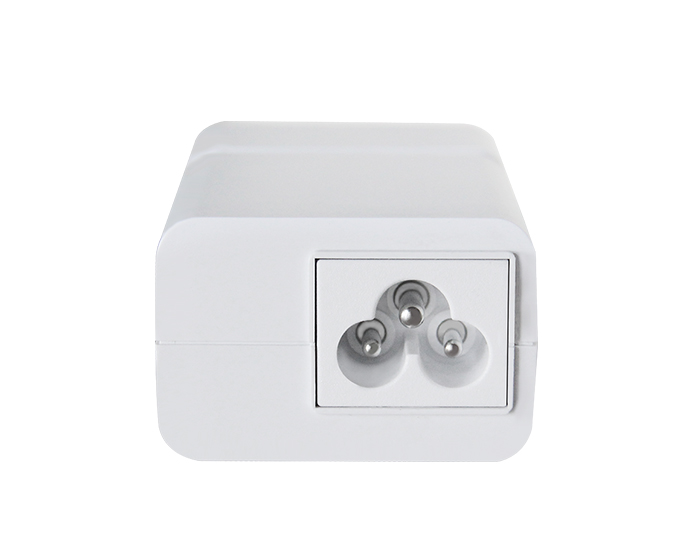

| Power input | 100-240Vac，50/60Hz Typ |
| Power output | 48Vdc 320mA 15.36W |
| Regulatory Compliance | IEEE 802.3af RoHS Compliance WEEE Compliance |
| Working Environment | Operating Temperature: 0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV |
| Mechanical Characteristics | Size: 95.3 X 51 X 34.5mm Weight: 105g(0.23lb) |
| Safety Approvals | CE, FCC |
Install Video
Standing Stock
| Product Order Info.(Model) | EN15GF |
| Stock Quantity | 500 PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | within 2-3 weeks |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty:40pcs/carton G.W.:9.9Kgs Volume:0.055 m³ Packing: Export Carton Pallet size:110 x 110cm |
