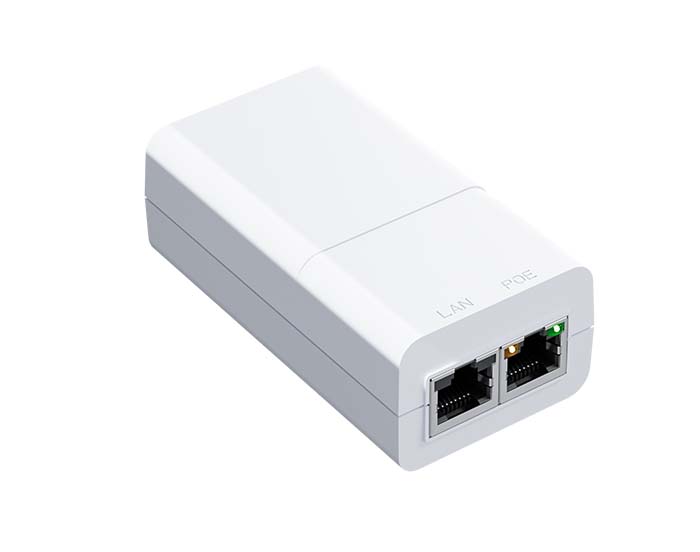

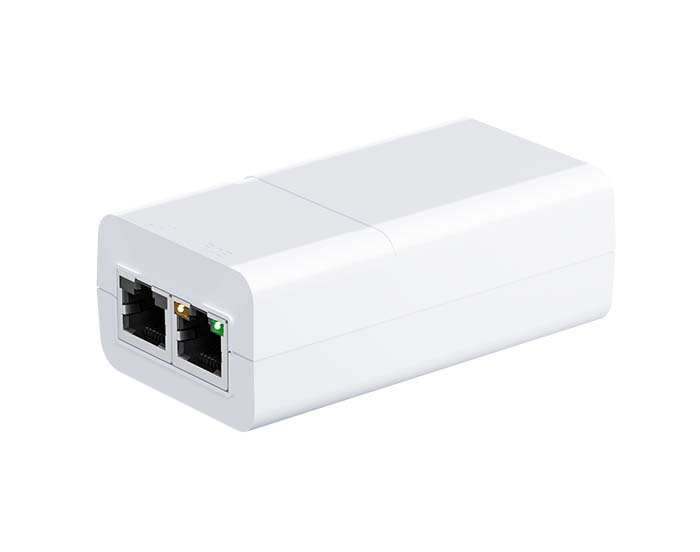

EN15G-30-3 Indoor 30V/15W PoE Injector for Cambium device

EN15G-30-3 is a single-port 15W Indoor PoE Injector with 2 Pair output at 15 watts of power at 30Vdc, 0.5Amp. It supports 10/100/1000Mbps of data rates.


Designed for the passive 30V/15W PoE Powered Devices (PDs), especially work well with ePMP MP3000 MicroPOP, ePMP3000L, Force 200, Force 180, Force 300-25, Force 300-16, Force 300 CSM, Force 200L, Force 300-13, Force 300-13L, Force 300-19, Force 300-19R, Force 300-25L, Force 300-CSML, PMP450b High/Mid/Retro/Conn.


Enclosed in an IP40 fire retardant plastic case, designed for indoor installation. It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key FeaturesAC to DC
30V, 0.5A
10/100/1000Mbps data rates
Passive PoE
Power pin: 4/5-,7/8+
Can not power 802.3af/at PDs
Power cable with all kinds of plug optional

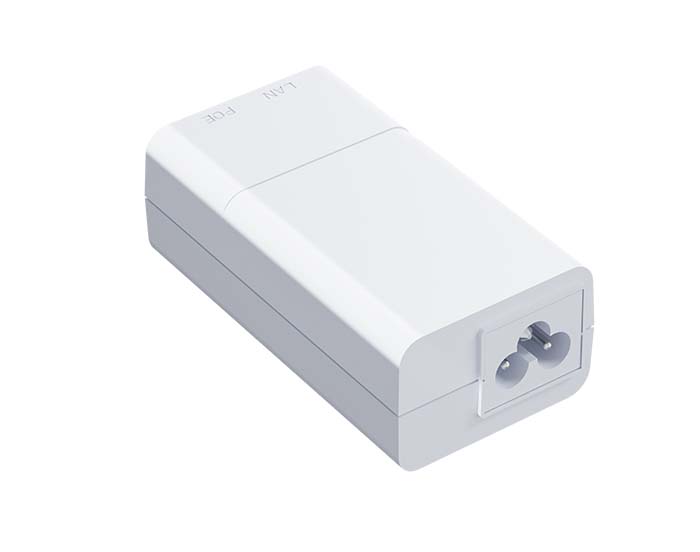

AC input: 3 wire
Can work well with Cambium ePMP line of products
Part NumberEN15G-30-3
Ports conditionLAN *1, AC Input*1, PoE Output *1
Regulatory CompliancePassive
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:
4/5(-), 7/8(+)
Output Power Voltage: 30Vdc/0.5A
User Port Power: 15W Guaranteen
InputAC Input Voltage:90 to 264Vac(100 to 240Vac Rated)
Frequency: 47 to 63Hz (50/60Hz Typ.)
Working EnvironmentOperating Temperature: 0℃ to 40℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -20℃ to 70℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 2000meters
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV
Mechanical CharacteristicsCase: Plastic
Color:White
Mounting: Place on desk or Mount with Tape
IP Rated: IP40

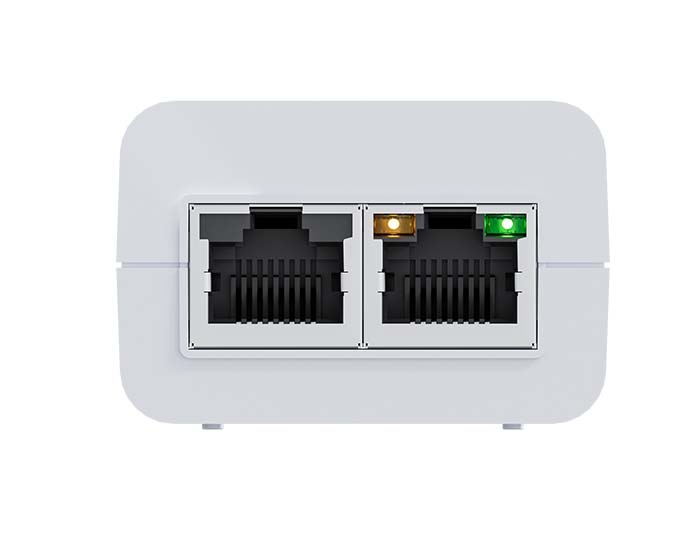

Connectors: Shielded RJ-45*2
Size:86.3mm*46mm*30.5mm
Weight: 90g(0.198lb)
