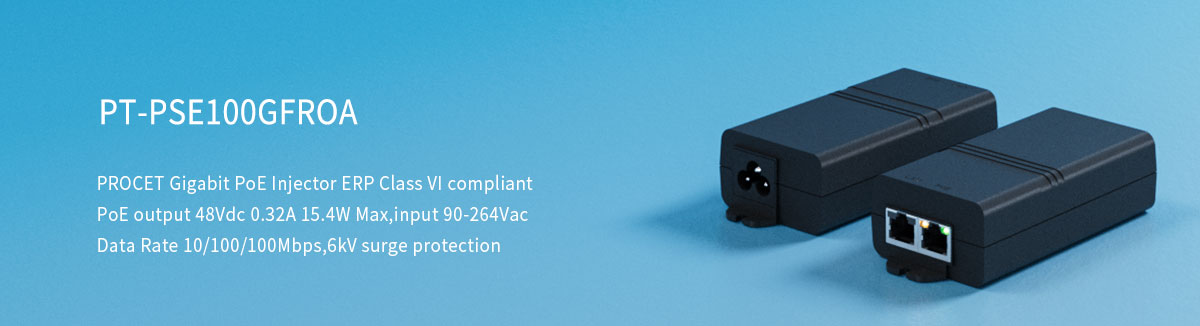

The PT-PSE100GFROA is a compact, single-port Gigabit PoE Injector delivering up to 15.4W to IEEE802.3af-compliant Powered Devices such as IP cameras, wireless APs, loT devices, POS terminals, and digital displays. It is ERP Energy Efficiency Class VI compliant for reduced power consumption and greater efficien-cy.
With an intelligent detection chip, it identifies and classifies devices before powering, protecting non-PoE equipment. It supports 100/1000Mbps data rates and transmits up to 100m over Cat5e/Cat6 cables.

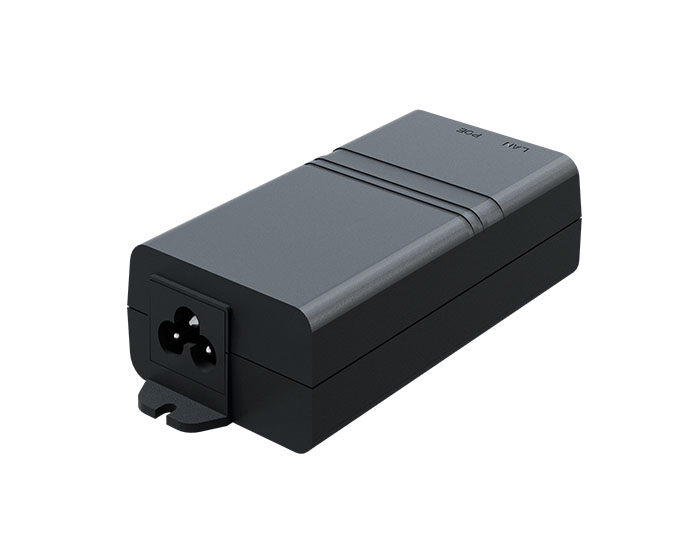

Featuring a 90-264VAC input range, 6kV surge protection, and a flame-retardant IP40 enclosure, it is designed for indoor wall-mount installation and operates in temperatures from -40°C to +65°C.
Specifications
| Item | PT-PSE100GFROA |

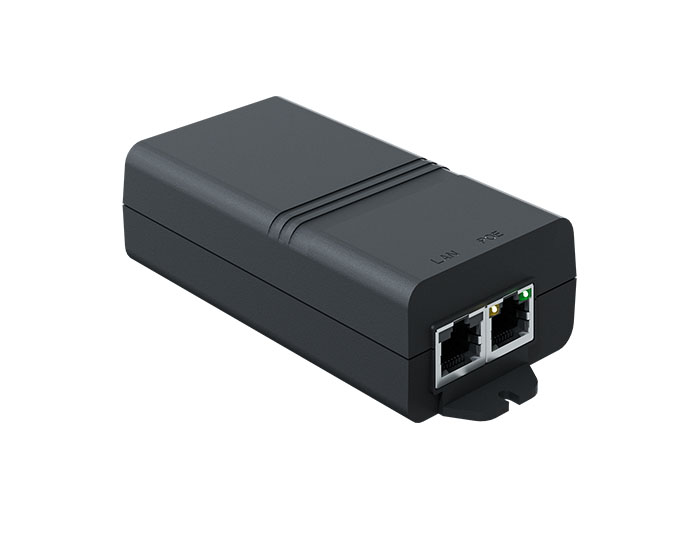

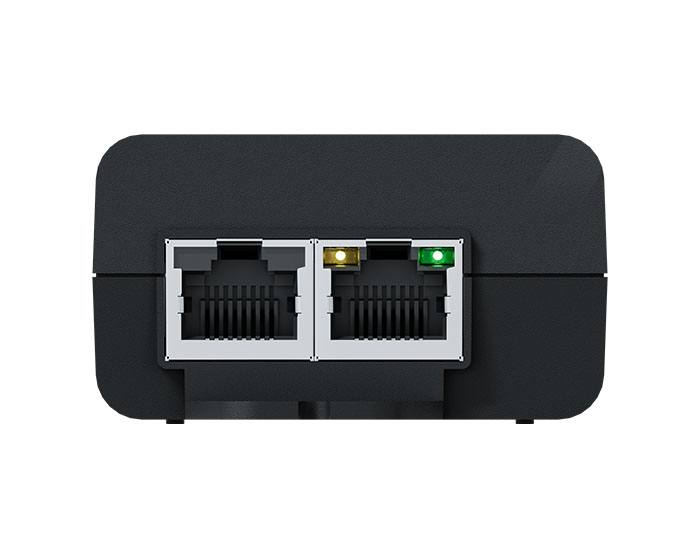

| Ports | AC Input*1 PoE*1 LAN*1 |
| PoE Standard | IEEE802.3af Power over Ethernet |

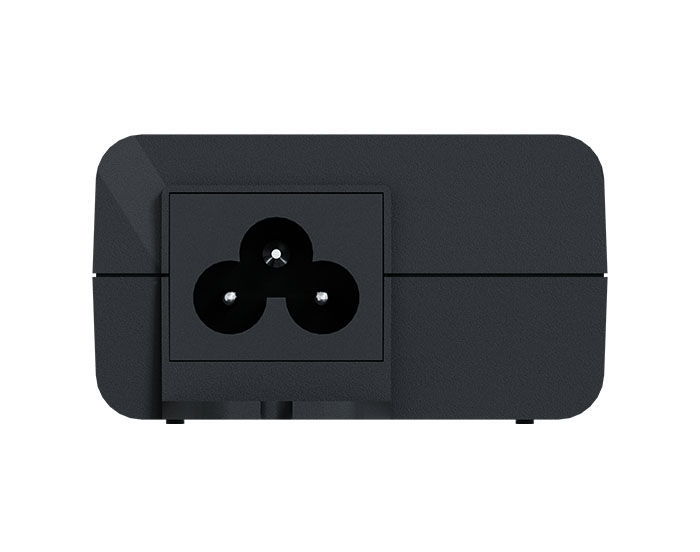

| Input | 90-264Vac |
| PoE Output | 48Vdc 0.32A 15.4W Max |
| Power Pins | 4/5(+),7/8(-) |
| Energy Effiency | ≥85% |
| NLPC | ≤0.1W |
| Surge Protection | AC Port Common Mode: 6KV Differential Mode: 4KV PoE Port Common Mode: 6KV Differential Mode: 1.5KV |
| Data Rate | 100/1000Mbps |
| Network Protocol | IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet |
| Operate Temperature | -40°C- 65°C |
| Operate Humidity | 20%-80%，non-condensing |
| Storage Temperature | -40°C- 85°C |
| Storage Himidity | 10%-90%，non-condensing |
| Enclosure | Black Plastic |
| Installation | Wall-Mounted Installation |
| IP Rate | IP40 |
| Size & Weight | 124.05mm X 56mm X 31mm(146g) |
| Certification | CE/FCC/ERP |
