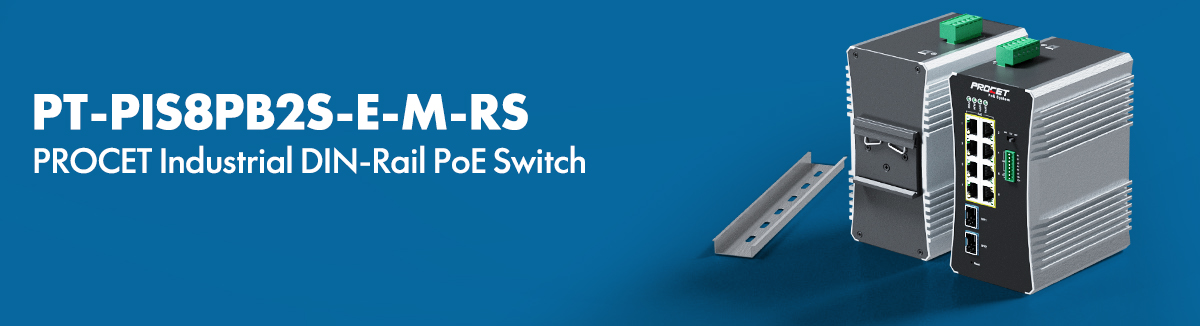

Sale Industrial DIN-Rail PoE Switch PT-PIS8PB2S-E-M-RS

This DIN-rail PoE switch includes two 2.5G/1G SFP ports and eight RJ45 ports, operating in -40C to 65C environments.It supports IEEE 802.3bt with up to 90W per port and total PoE power up to 360W at 48V input. PoE management features include remote control, power prioritization, and real-time monitoring.

It accepts 12V-55V input with boost technology, includes dual RS485 circuits for sensors, and offers a 12V/24V(2A) auxiliary output.

Layer 2 features like VLAN and port mirroring ensure stable data transmission.The compact DIN-rail design enables easy deployment in smart poles, transport systems, and energy sites.

Inquire Now

Specifications
Support & Dowload
Gallery
Test Results
Standing Stock

Specifications

Item	PT-PIS8PB2S-E-M-RS
Ports	DC IN1 SFP2 PoE8 DC & 485 port1 Grounding*1
PoE Standard	IEEE802. 3af/at/bt Power over Ethernet
Input	12~55Vdc
DC Output	12/24Vdc 2A Max
PoE Output	55Vdc 1.64A 90W Max for Single Port
Power Pins	4/5(+),7/8(-) & 3/6(+),1/2(-)
Switching Mode	Store-and-forward
VLAN	Support 4096 VLAN IDs Support 802.1Q VLAN Support VLAN based on any combination of ports across multiple chips
Backplane Bandwidth	26Gbps
Network Protocols	IEEE802.3 Ethernet IEEE802.3u Fast Ethernet IEEE802.3ab Gigabit Ethernet IEEE802.3i/IEEE802.3u/IEEE802.3ab/IEEE802.3z IEEE802.3bz
Qos	Support high-speed, non-blocking four-traffic-class QoS structure
Op Temp	-40°C-65°C
Op Humid	5%-90%,non-condensing
Op Alt	Up to 5000m
Stor Temp	-40°C-85°C
Stor Humid	5%-95%,non-condensing
Enclosure	Aluminum alloy+Steel Support Plate
Installation	DIN-Rail mount
Protection	IP40
Size & Weight	153mm X 118mm(including the buckle 129.1mm) X 80mm(1671g)
Certification

None
