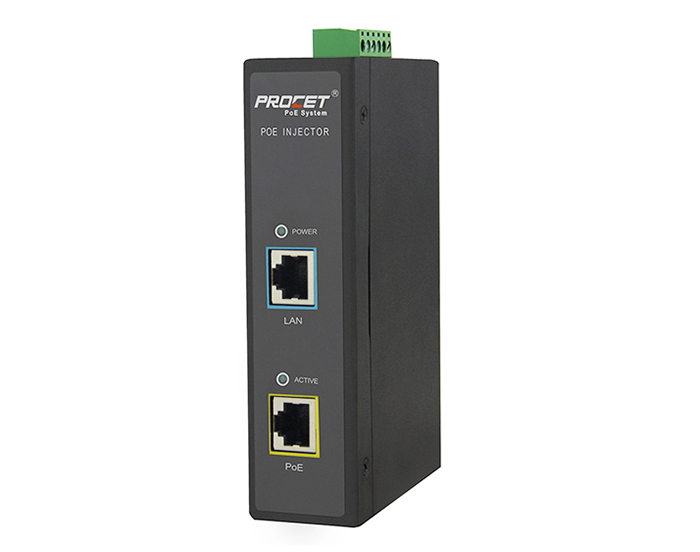

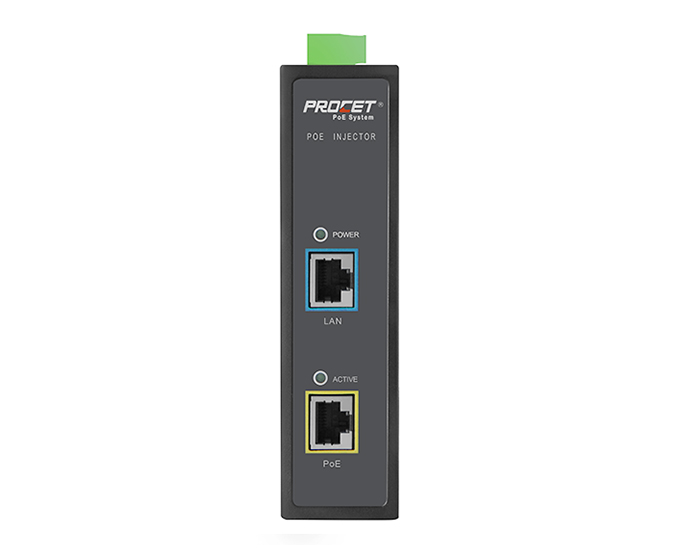

PT-PSE105GB-D DIN Rail Ultra PoE Injector with 4 Pair PoE up to 60 watts of power with 6Kv surge protection.
Designed for the IEEE802.3BT powered 95W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3BT and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.
Enclosed in an IP40 high-impact metal case with DIN Rail mount bracket, designed for indoor use but can work outdoor by covered with waterproof case. It works with a wide input voltage of 50-57Vdc, the output voltage follows input and operates under -40℃ to +65℃, For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables
Specifications
| Parameter | Description |
| Key Features | Industrial PoE can be outdoor use by covered with waterproof case Surge protection at PoE port Gigabit data rates DIN Rail mount IP40 high-impact metal enclosure Extend temperature from -40℃ to 65℃ Diagnostic LEDs |
| Part Number | PT-PSE105GB-D |
| Ports condition | LAN Port*1, PoE Output Port*1, DC input Terminal Block *1 |
| Regulatory Compliance | IEEE802.3bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5(+), 7/8(-) & 3/6(+), 1/2(-) Output Power Voltage: 48-55Vdc User Port Power: 95W Guaranteen |
Input | DC Input Voltage: 50-57Vdc |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |

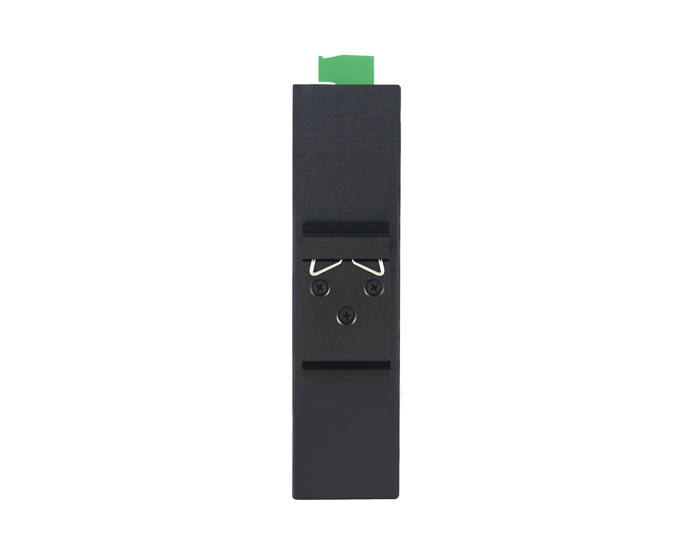

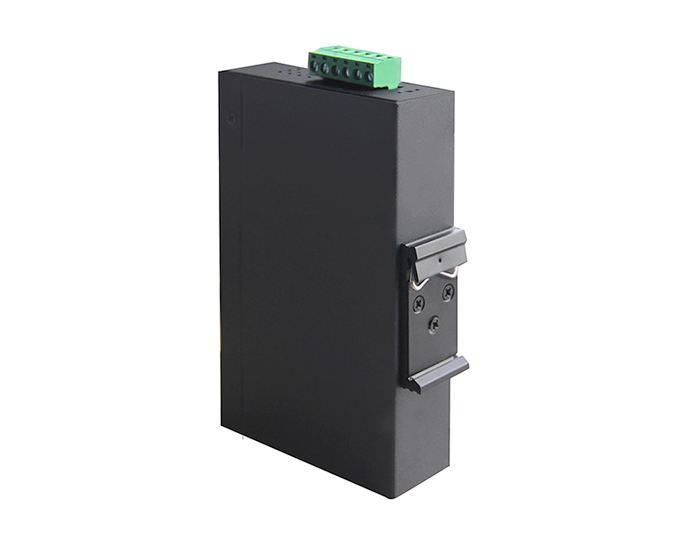

| Mechanical Characteristics | Case: Metal Color: Black Mounting: DIN-rail IP Rated: IP40 Connectors: Shielded RJ-45*2 Size:144.5 X 95 X 35.4mm Weight: 400g（0.88lb） |
| LED Indicator | Power Indicator: Green PoE Load Indicator: Yellow |
| Safety Approvals | CE |
Standing Stock
| Product Order Info.(Model) | PT-PSE105GB-D |
| Stock Quantity | 50PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty: 20pcs/carton G.W.: 12Kgs Volume: 0.03 m³ Packing: Export Carton Pallet size: 110 x 110cm |
