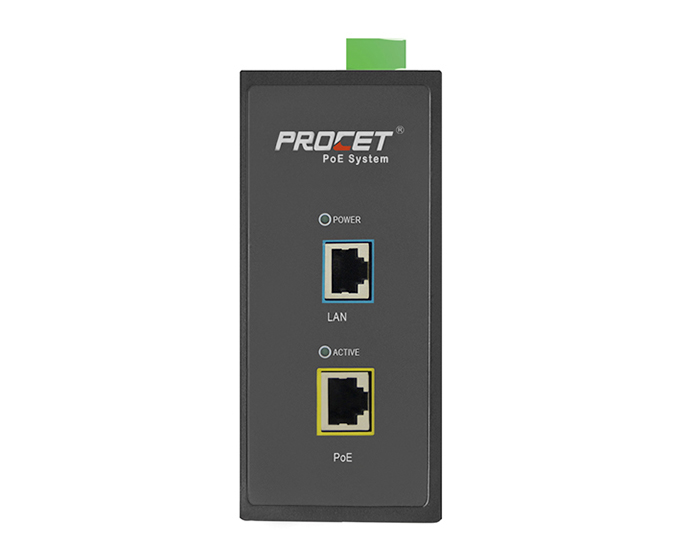

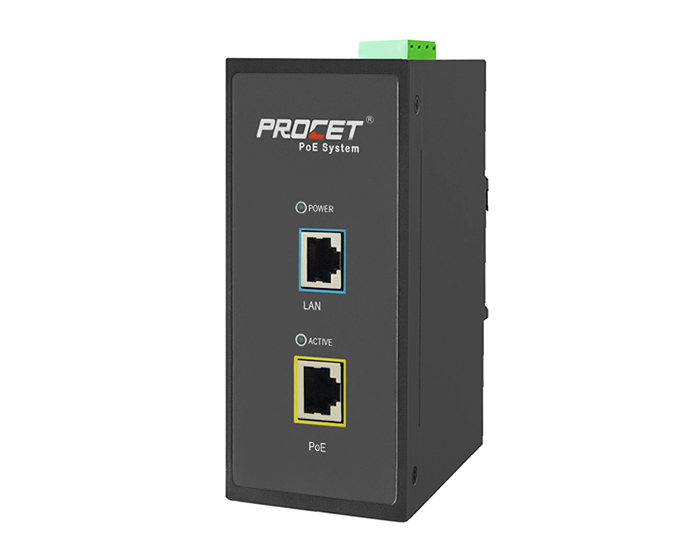

PT-PSE105GW-AC Gigabit DIN Rail PoE injector with 4 Pair PoE up to 60 watts of power at 55Vdc, at 1.1Amp with 6Kv surge protection.
Designed for the PoE++ powered 60W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks. It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

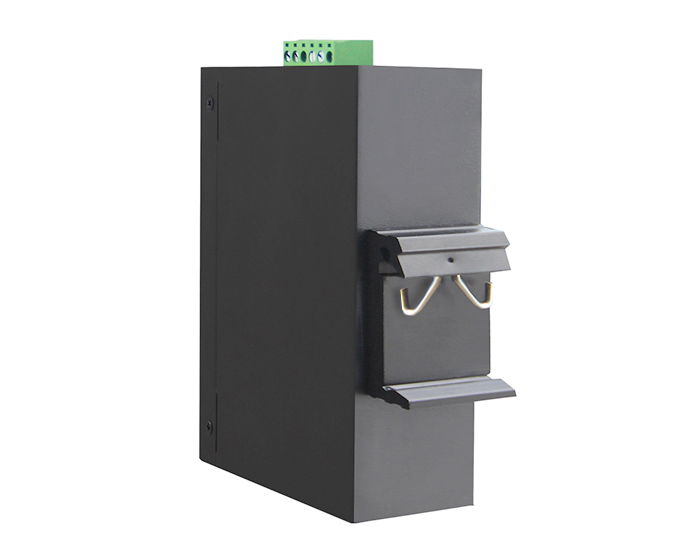

Enclosed in an IP40 high-impact metal case with DIN Rail mount bracket, designed for indoor use but can work outdoor by covered with waterproof case. It works with a wide input voltage of 100-240Vac or 44-57Vdc and operates under -40℃ to +65℃, For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.
Specifications
| Parameter | Description |
| Key Features | Industrial PoE can be outdoor use by covered with waterproof case Surge protection at PoE port Gigabit data rates DIN Rail mount IP40 high-impact metal enclosure Extend temperature from -40℃ to 65℃ Diagnostic LEDs Equipped with AC and DC input port |
| Part Number | PT-PSE105GW-AC |
| Ports condition | LAN Port*1, PoE Output Port*1, AC input Port*1, DC input Terminal Block *1 |
| Regulatory Compliance | IEEE802.3bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) & 3/6(+),1/2(-) Output Power Voltage: 55Vdc @AC input 44-57Vdc @DC input User Port Power: 60W Guaranteen |
| Input | AC Input Voltage:90 to 264Vac(100 to 240Vac Rated) Frequency: 47 to 63Hz (50/60Hz Typ.) DC Input Voltage: 44 to 57 Vdc |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| Mechanical Characteristics | Case: Metal Color: Black Mounting: DIN-rail IP Rated: IP40 Connectors: Shielded RJ-45*2 Size: 144.5mmX 104.2mmX 60mm Weight: 819g（l.8lb） |
Standing Stock
| Product Order Info.(Model) | PT-PSE105GW-AC |
| Stock Quantity | 50PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty: 20pcs/carton G.W.: 20Kgs Volume: 0.06 m³ Packing: Export Carton Pallet size: 110 x 110cm |
