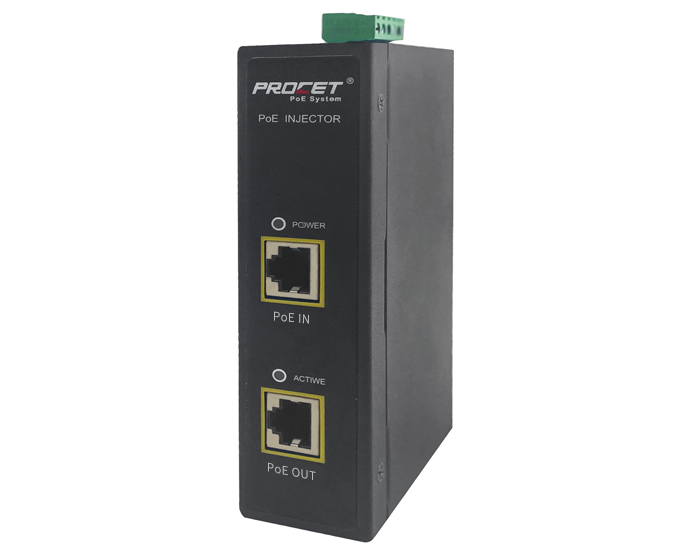

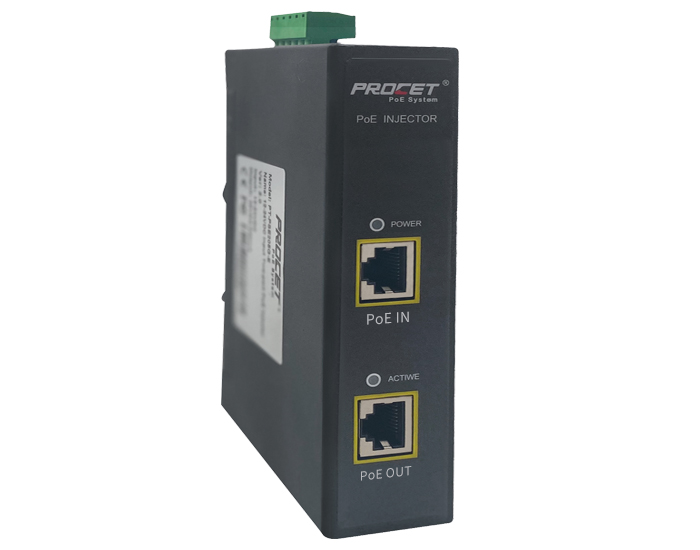

PT-PSE105G-T-24 is a Passive DIN PoE Injector with 2 Pair PoE up to 30 watts of power 24Vdc 1250mA @DC input&Output 24Vdc 1050mA @802.3at input with 6Kv surge protection.Designed for the IEEE802.3af powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.
It will directly power PD without detecting.The effective distance is 100 meters over Cat5e/Cat6 cables.

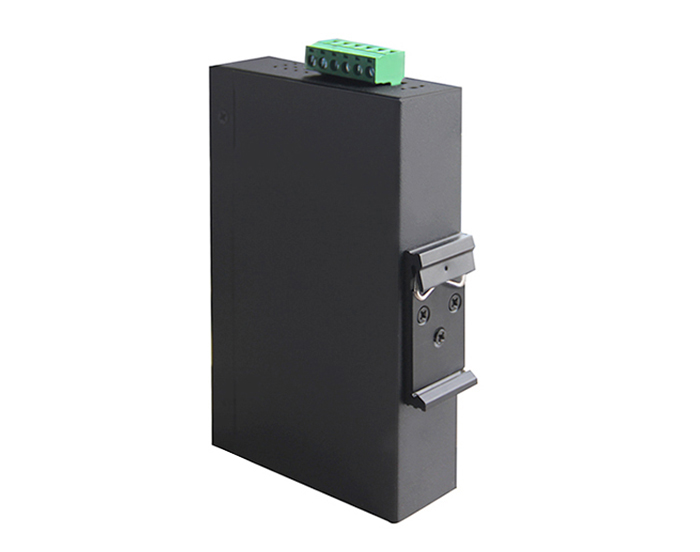

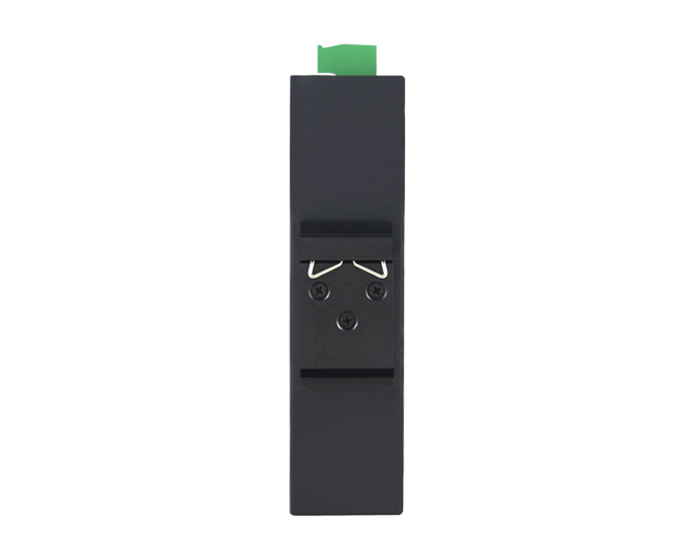

Enclosed in an IP40 high-impact metal case with DIN Rail mount bracket, designed for indoor use but can work outdoor by covered with waterproof case.It works with a wide input voltage of 44-60Vdc OR 802.3at make it possible for solar application and operates under -40℃ to +65℃, For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.
Specifications
| Parameter | Description |
| Key Features | Passive DIN Industrial PoE injector |
| Part Number | PT-PSE105G-T-24 |
| Ports condition | SFP Port*1, PoE Port*4 |
| PoE output | 25.2W |
| Data rates | 10/100/1000 Mbps |
| Power input | 44-60Vdc OR 802.3at |
| Power output | Output 24Vdc 1250mA @DC input Output 24Vdc 1050mA @802.3at input |
| Regulatory Compliance | Passive RoHS Compliance WEEE Compliance |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| Mechanical Characteristics | Size: 144.5mmX 95mmX35.4mm Weight: 400g（0.88lb） |
