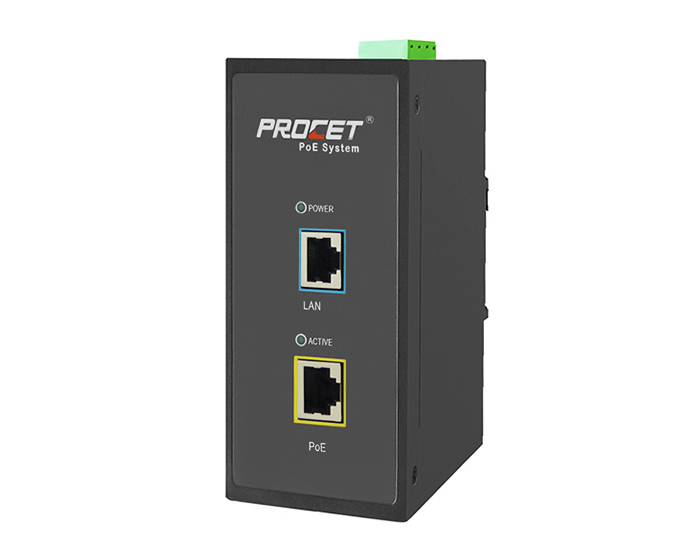

PT-PSE105GB-AC-10 Industrial Din-rail PoE++ Injector with 4 Pair PoE up to 60 watts of power at 55Vdc, at 1.1Amp with 6Kv surge protection.
Designed for the PoE++ powered 60W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10GbE of data rates. Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non-PoE device.

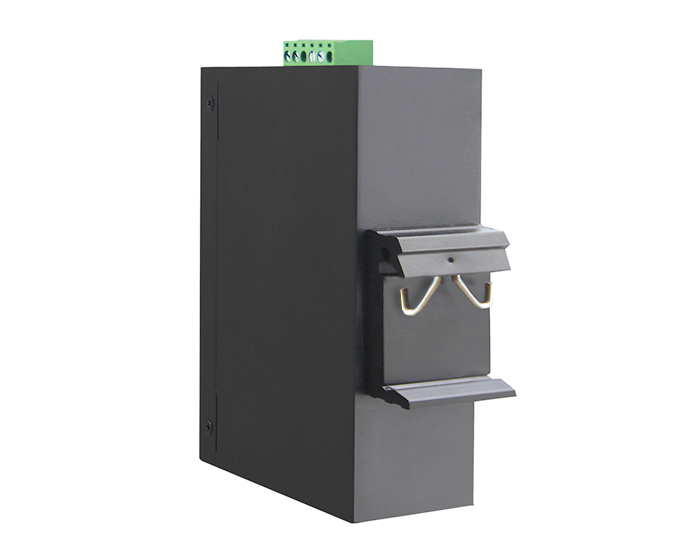

Enclosed in an IP40 high-impact metal case with DIN-Rail mount bracket, designed for indoor use but can work outdoor by covered with waterproof case. It works with a wide input voltage of 100-240Vac or 44-57Vdc and operates under -40℃ to +65℃, For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.
Specifications
| Key Features | PoE++ 60W DIN-Rail Industrial PoE injector |
| Part Number | PT-PSE105GB-AC-10 |

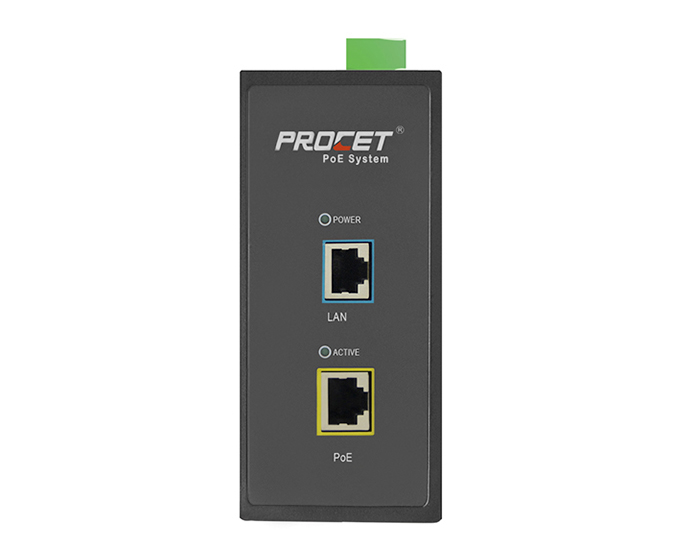

| Ports condition | LAN *1, DC Input*1, PoE Output *1 |
| PoE output | 60W |
| Data rates | 10 GbE |
| Power input | AC input 100-240Vac or DC input 44-57Vdc |
| Power output | 55Vdc/1.75A @AC input 60W 44-57Vdc@DC input |
| Regulatory Compliance | PoE++ RoHS Compliance WEEE Compliance |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| Mechanical Characteristics | Size: 144.5 X 104.2 X 60mm Weight: 819g（l.8lb） |
