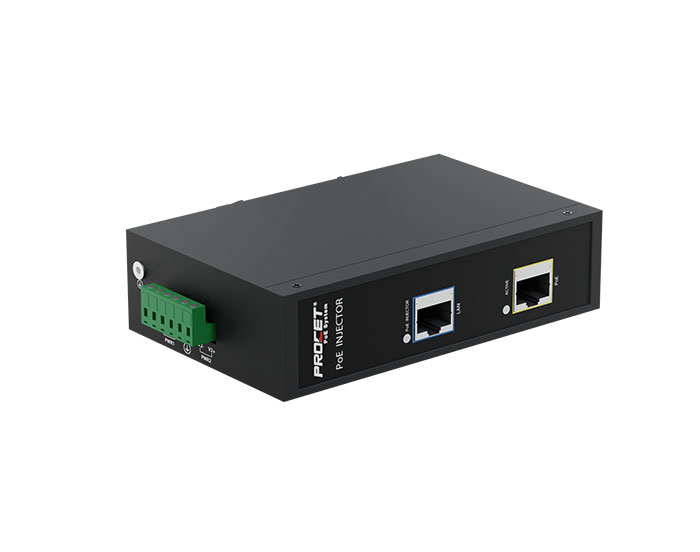

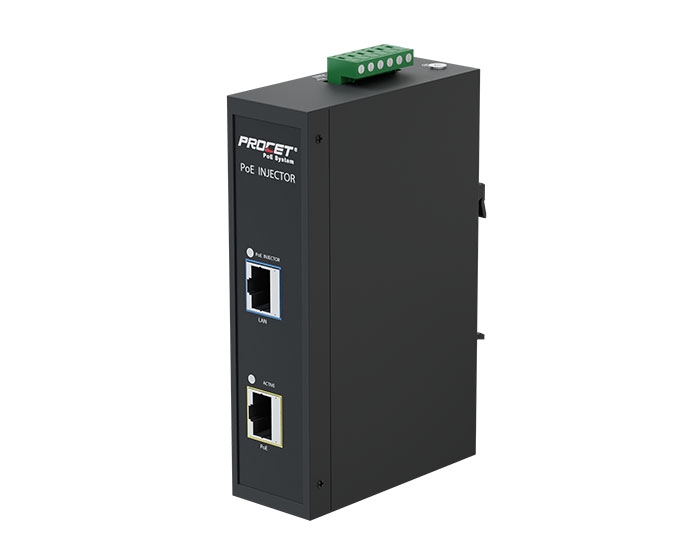

PT-PSE105GW-E-10 DIN Rail PoE injector with 2 Pair PoE up to 60 watts of power at 55Vdc, at 1.1A with 6Kv surge protection Designed for the PoE++(bt) powered 60W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 2.5GbE/5GbE/10GbE NBase-T.
Fully comply with PoE++ and remains compatible with any PoE++ compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

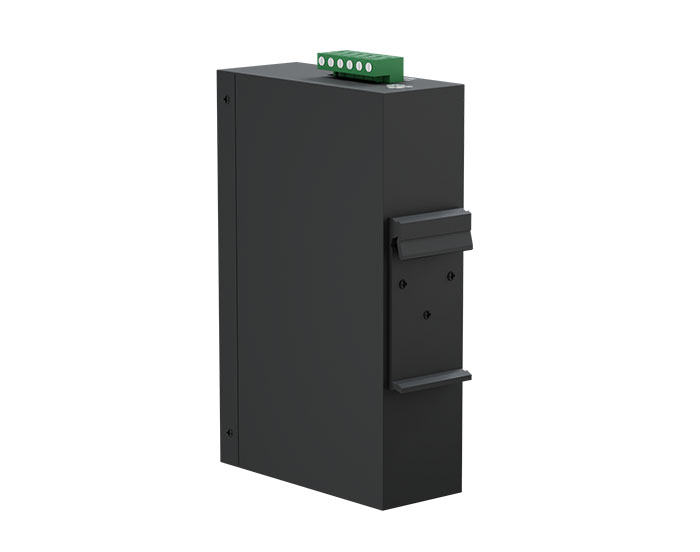

Enclosed in an IP40 high-impact metal case with DIN Rail mount bracket, designed for indoor use but can work outdoor by covered with waterproof case. It works with a wide input voltage of 12-55Vdc make it possible for solar application and operates under -40℃ to +65℃, For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.
Specifications
| Parameter | Description |
| Key Features | 60W DIN Industrial 10G PoE injector |
| Part Number | PT-PSE105GW-E-10 |

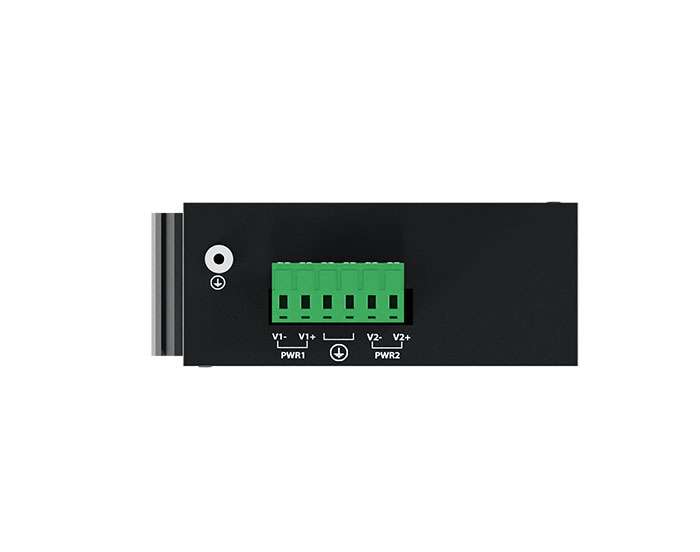

| Ports condition | LAN Port*1, PoE Output Port*1, DC input Terminal Block *1 |
| PoE output | 60W |
| Data rates | 10/100/1000 Mbps |
| Power input | 12-55Vdc,10A Max |
| Power output | 55Vdc1.1A 60W |
| Regulatory Compliance | PoE++ RoHS Compliance WEEE Compliance |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| Mechanical Characteristics | Size: 144.5mmX 95mmX35.4mm Weight: 400g（0.88lb） |
| Safety Approvals | CE |
