Outdoor 8 Port PoE Switch with 2 SFP 485/232 Communication Interfaces PT-POS8PB2SM-OT

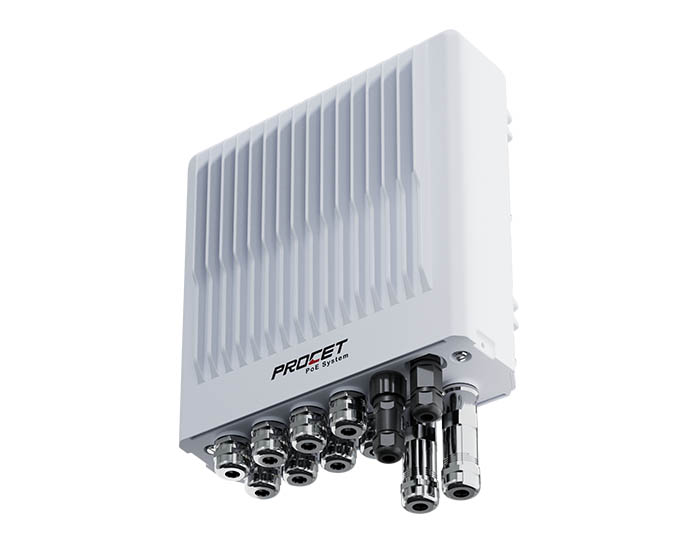

PT-POS8PB2SM-OT is an outdoor-rated PoE switch. Enclosed in an IP67 Reflective metal case with a sealing gasket that passes tension, bearing, corrosion, and aging tests for IP67 applications. Pass the salt spray resistance test. Including 1 AC input port, 2 SFP 1G/2.5G fiber slot, 1 multi-function interface, and 8 PoE output port with 6KV (10/700us) surge protection, provides 55Vdc, 1.64A power for remote PDs over 4 pairs at 10/100/1000Mbps. The total output power budget is 350W.


It works with a wide input voltage of 100-240Vac with 6KV surge protection and operates from -40℃ to +65℃. Equipped with a detecting chip inside which makes the PoE identification handshake with IEEE802.3af/at/bt PDs,  can power PTZ cameras, wireless APs, base stations, and other PoE-powered devices. Protect non-PoE standard devices. The effective distance is 100 meters over Cat5e/Cat6 cables. Easily to install with installation kit (Sold separately), no need to open the equipment.


The PoE switch can power external devices with selectable 24V/12V output, and its 485/232 interface supports communication with external devices.


Models with an “M” in the P/N include Ethernet and PoE management functionalities. It can be accessed and managed via a web browser, supporting configurations such as IP settings, port settings, VLAN settings, PoE settings, and factory reset. Users can also view device information, including switch status, port status, and PoE status. Additionally, the PoE ports allow for scheduling timed power on/off operations.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key Features8-Port high power 90W PoE Switch, Total 350W
AC to DC
Outdoor IP67 protect rated waterproof
2 SFP slot and one 485/232 Communication Interface
Flexible 12/24VAC Power Options output via 485/232 port
1000/2500Base-FX to 10/100/1000Base-TX
SFP slot for Multi mode or Single mode SFP transceiver
6KV PoE Surge protection, 6KV AC surge protection

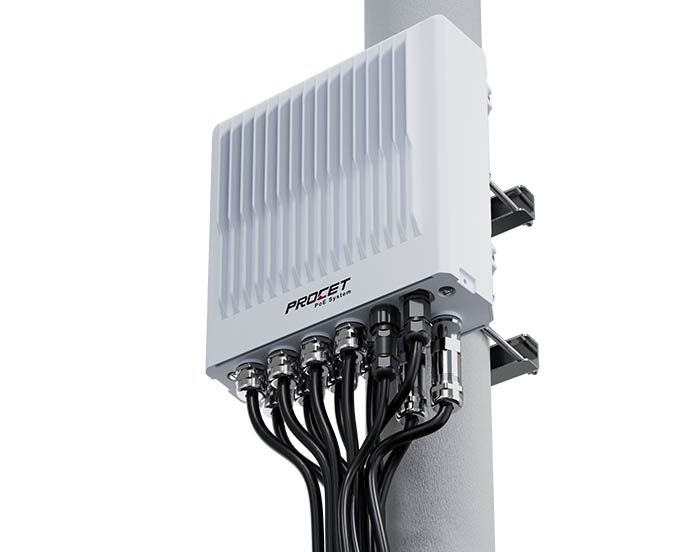

Pole mounted

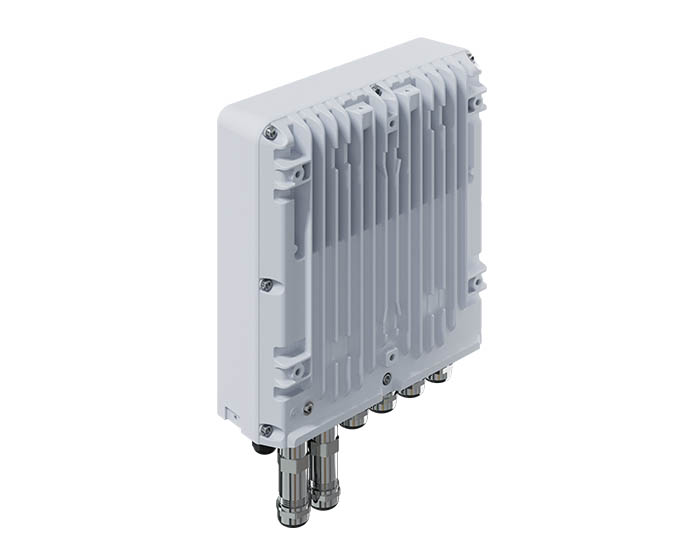

IP67 Die-Casting Aluminum shell
Extend temperature from -40℃ to 65℃

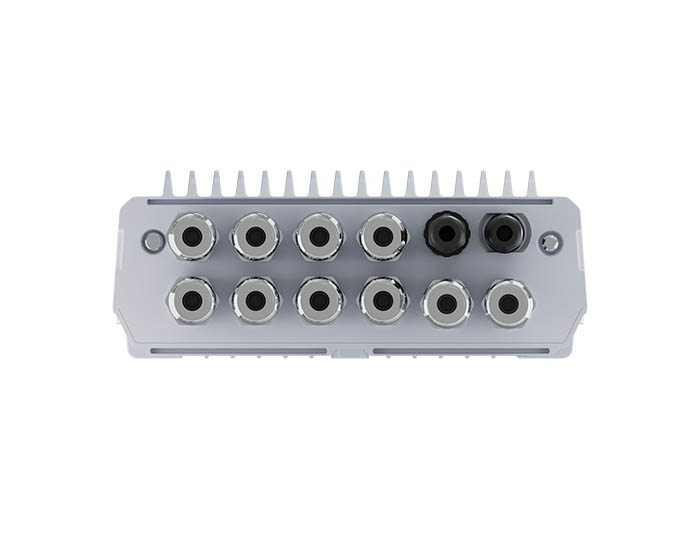

IP67 waterproof metal cable glands
Part NumberPT-POS8PB2SM-OT
Ports conditionSFP Fiber Port*2, PoE Output Port*8, AC Input Screw Terminal Connector *1, 485/232 Output Interface*1
Regulatory ComplianceIEEE802.3af/at/bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000BASE-T RJ45 Interfaces
1000/2500BASE-X SFP Interfaces
OutputPin Assignment and Polarity:
3/6(+), 1/2(-),4/5(+), 7/8(-)
Output Power Voltage: 55Vdc/1.64A
User Port Power: 90W Guaranteen per port *8, Total power budget 350W
InputAC Input Voltage:110 to 240Vac
Frequency: 47 to 63Hz (50/60Hz Typ.)
Working EnvironmentOperating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 90%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 95%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 6KV
Line-Line 1.2/50us (8/20us): 4KV
Mechanical CharacteristicsCase: Aluminum Alloy
Color: White
Mounting: Pole Mounted/Wall Mounted
IP Rated: IP67
Connectors: Shielded RJ-45*8, SFP Slot*2, 485/232 Interface*1
Size: 337mmX 235mmX  93mm
Exchange ModeStore-and-Forward
Backplane Bandwidth26Gbps
MAC Address Capacity16K
