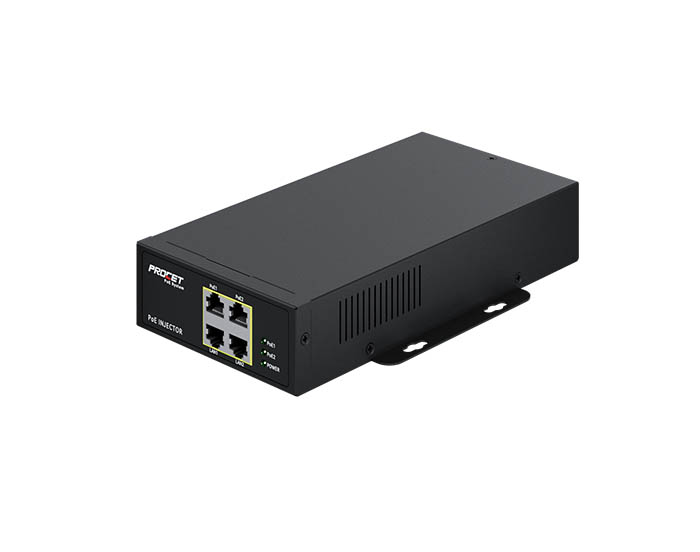

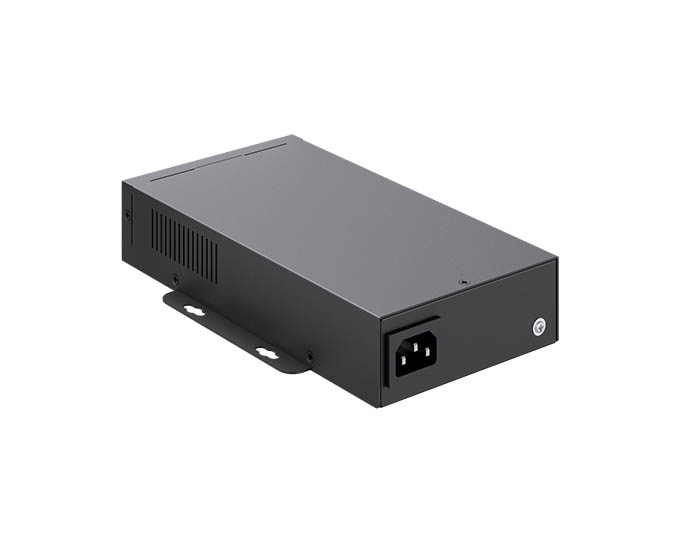

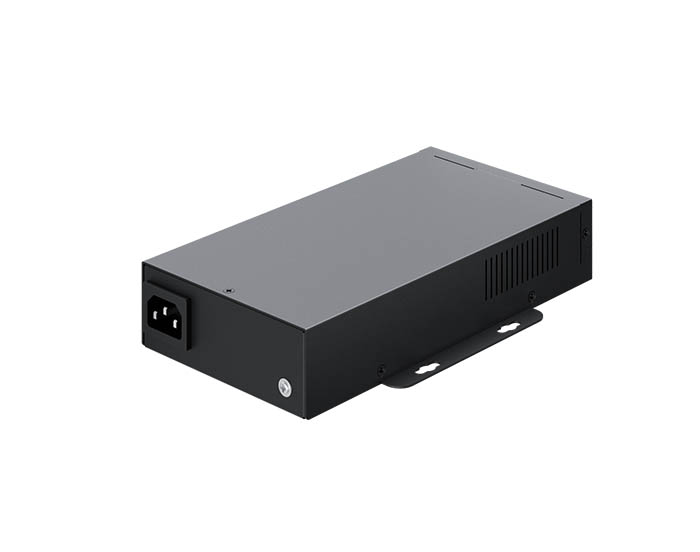

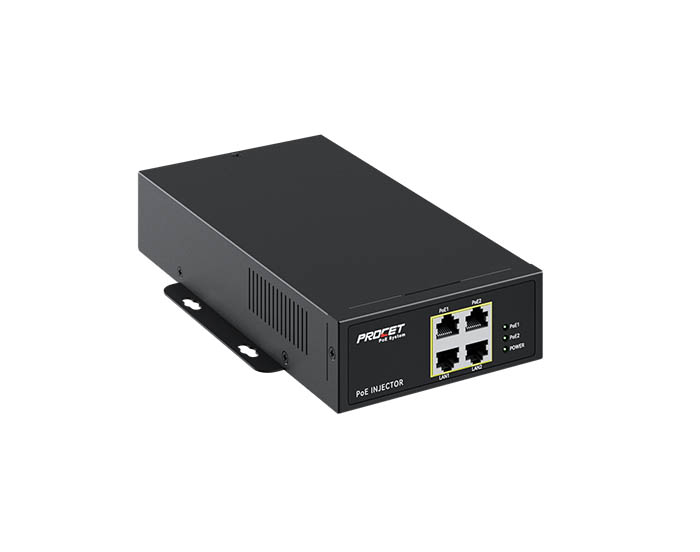

PT-PSE209GRO-A High power Gigabit PoE Injector

PT-PSE209GRO-A  High power Gigabit PoE Injector specially designed for complex backhaul and networking applications. Enclosed in an IP20 high-impact metal case.

After negotiating IEEE802.3af/at/PoE++ standard PoE, the two PoE output port simultaneously delivers 55Vdc, up to 0.928A at 51W power for remote PDs over 4 Pairs at 10/100/1000Mbps data rates. It doesn’t have switch board inside, but data can convert between the two PoE ports. It can be also used as single port PoE which delivers 55Vdc, 1.75A up to 95W for remote PD.


It works with a wide input voltage of 100-240VAC, 50 or 60 Hz and operates under -40℃ to +65℃. It fully complies with IEEE802.3 PoE++ and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks. For planning purposes, the effective distance is 100 meters

over Cat5e/Cat6 cables.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key FeaturesIndustrial PoE can be outdoor use by covered with waterproof case
Extend temperature from -40℃ to 65℃
6KV Lightning Protection on both PoE and AC ports
Two PoE Ports with power and data and data converts between them
Two Gigabit RJ45 LAN data Uplink
Two PoE Ports can work simultaneously at 55Vdc/0.928A/51W
Single-port can be up to 95W
IP20 high-impact metal enclosure
Diagnostic LEDs
Part NumberPT-PSE209GRO-A
Ports conditionAC Input Port*1,  LAN Port*2, PoE Output Port*2
Regulatory ComplianceIEEE802.3af/at/PoE++
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000Mbps
OutputPin Assignment and Polarity:
4/5 (+), 7/8 (–) & 3/6(+),1/2(-)
Output Power Voltage: 55Vdc/0.928A per Port*2
User Port Power: 51W per port, Total Power budget 95W
InputAC Input Voltage:90 to 264Vac(100 to 240Vac Rated)
AC Input Current: 2.0A
Frequency: 47 to 63Hz (50/60Hz Typ.)
Working EnvironmentOperating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV
Mechanical CharacteristicsCase: Metal
Color: Black
Mounting: Wall-mounted
IP Rated: IP20
Connectors: Shielded RJ-45*4
Size: 214mmX 134mmX 41mm
Weight: 1070g(2.36lb)
LED IndicatorPower indicator: Green
Load active Indicator: Green
