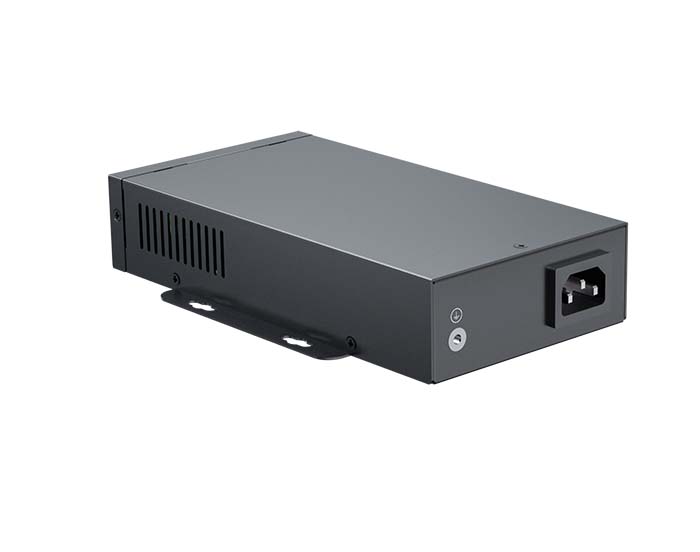

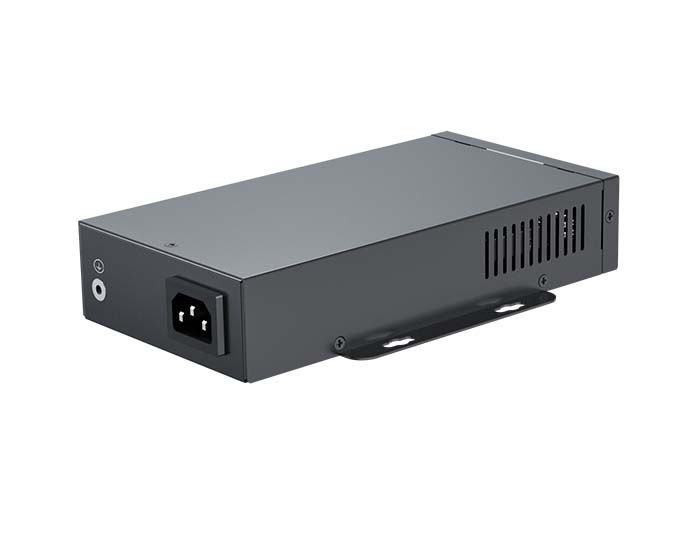

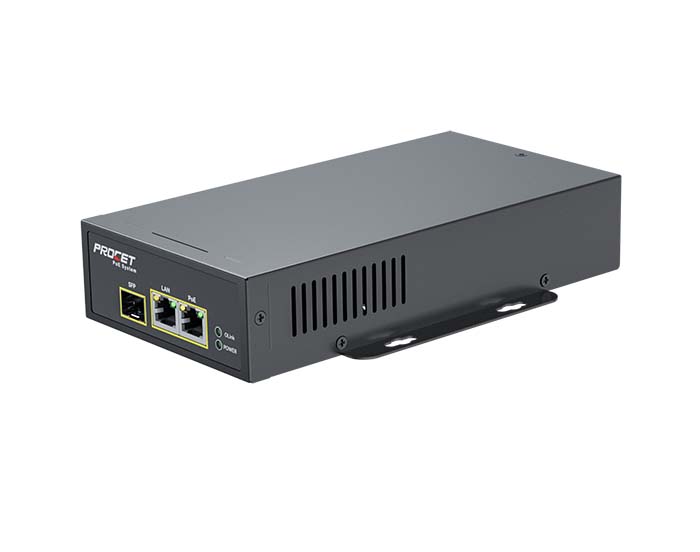

PT-PSE109GMN-A-S 121W Managed Fiber to PoE Injector

PT-PSE109GMN-A-S, a single port fiber PoE Injector with Managed Ethernet function. Supports IEEE 802.1Q VLAN and port-based VLAN. We can access and manage the device via web browser, including IP configuration, port configuration, VLAN configuration, PoE configuration, device control, etc. We can also view device information such as switch status, port status, and PoE status etc. In addition, the PoE port enables remote control of the device' on/off and reset status.


This model has a 1000BASE-X SFP Interfaces, offers a unique solution to powering long range installations, where the data input comes over fiber.


The PoE output port delivers 55V/2.2A power up to 121W(max) for remote PD viafull 4 pairs with 4KV surge protection at 10/100/1000Mbps of data speed. It supports terminal equipments with IEEE802.3af/at, PoE++, IEEE802.3bt standard. such as wireless APs, IP cameras, base stations, gateways, and other high-power Ethernet backhaul devices. Industrial design, when cover with waterproof case can be used for outdoor application. It works like a switch, the data is interoperable among LAN port, PoE port and SFP port.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

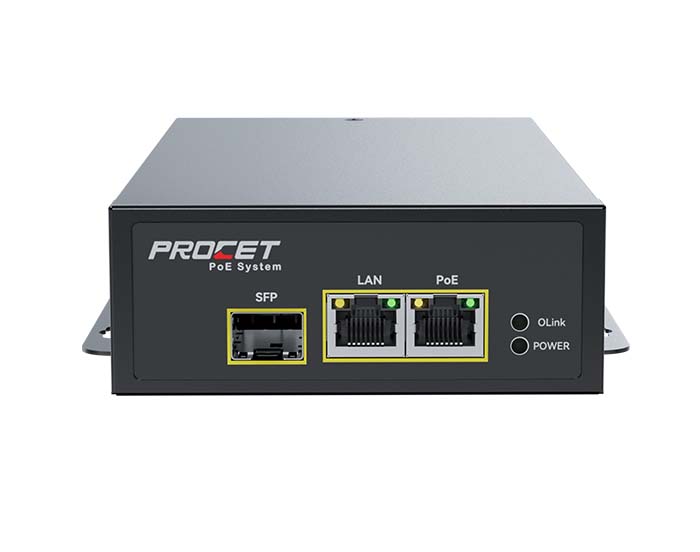

InterfacePoE*1 LAN*1 SFP*1 AC*1 GND*1
Power Pins1/2/3/6(+) & 4/5/7/8(-)
Data RatesRJ45:10/100/1000Mbps SFP:1G
Network ProtocolIEEE802.3i/IEEE802.3u /IEEE802.3ab /IEEE802.3z
StandardIEEE802.3i 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet
IEEE802.3ab 1000Base-T Gigabit Ethernet IEEE802.3z 1000Base-X SFP+Fiber Gigabit Ethernet
Input & OutputRoHS.WEEE Interface. PoE*1 LAN*1 SFP*1 AC*1 GND*1
Input: 100-240Vac 2.0A 50/60Hz Power Pins: 1/2/3/6(+)& 4/5/7/8(-)
Output: 55Vdc 2200mA Data rates: LAN: 10 / 100 / 1000Mbps SFP:1G
Operating Temp.0℃ to 40℃
Operating Humidity20%-80%, non-condensation
Operating AltitudeUp to 5000 meters
Storage Temp.-20℃ to 70℃
Storage Humidity10%-90%. non-condensation
Mechanical CharacteristicsCase: Metal Color: Black
Dimensions: 213.9mm X 134.0mm X 41.0mm Weight: 1104g
PoE Surge ProtectionProtected line:1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 4kV
Differential mode surge protection (10/700us): 1.5KV
IP RatedIP20
Dimensions213.9mm×134mm×41mm (1104g)
EMCEN 55032:2015/A11:2020
EN 55035:2017/A11:2020
