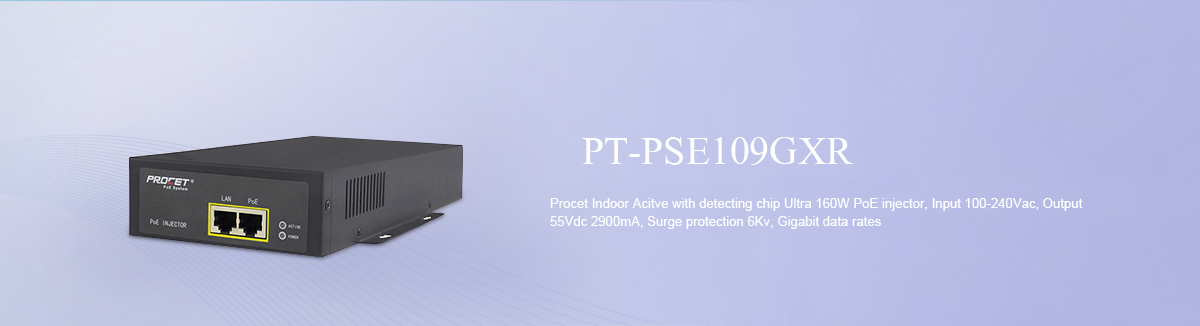

PT-PSE109GXR 160W High Power PoE Injector with 4 Pair PoE up to 160 watts of power at 55 Vdc at 2.9 Amp with 6Kv surge protection.
Designed for the PoE++ powered 160W PoE Powered Devices (PDs), such as wireless APs, base stations, high power cameras, door locks, displays, information kiosks and other high power Ethernet terminals. It is also compatible and safe to use with any IEEE802.3af/at/bt compliant terminals. It supports 10/100/1000Mbps of data rates. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.
Enclosed in an IP20 high-impact metal case, designed for indoor use. It works with a wide input voltage of 100-240VAC, 50 or 60 Hz. The effective distance limitation is 100 meters over Cat5e/Cat6 cables.
Specifications
| Parameter | Description |
| Key Features | Lighting Protection at PoE port Gigabit data rates IP20 high-impact metal enclosure AC power cord with optional US or EU plug or other standard plug Diagnostic LEDs High power of 160 Watts Detecting chip |
| Part Number | PT-PSE109GXR |

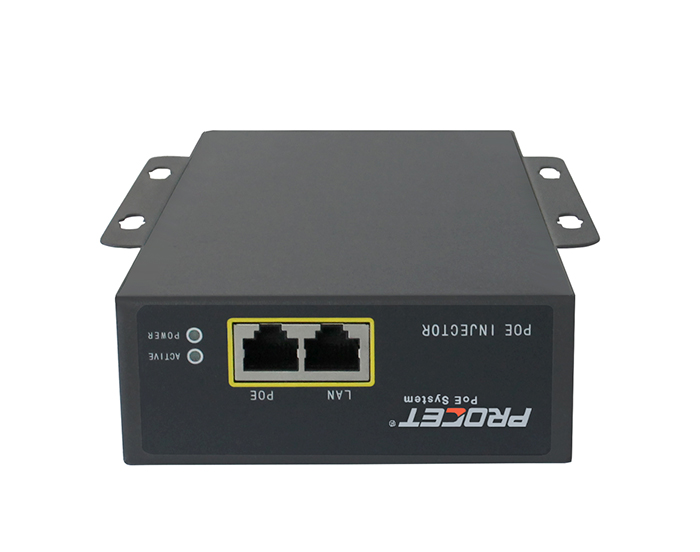

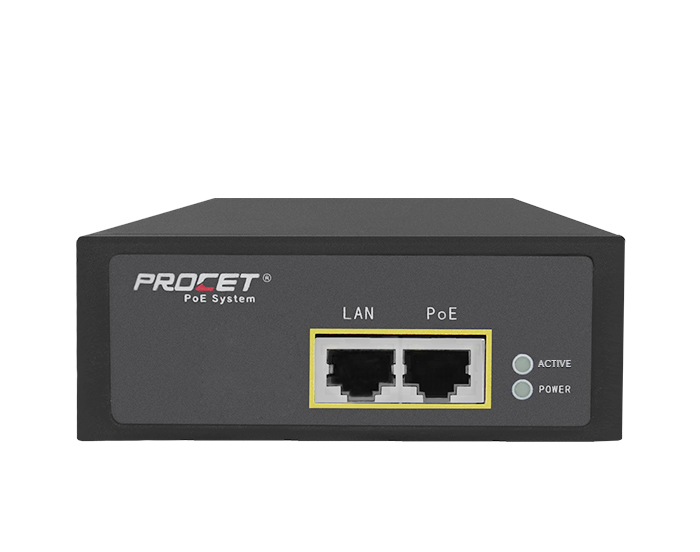

| Ports condition | LAN Port*1, AC Input Port*1, PoE Output Port*1 |
| Regulatory Compliance | RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) and 3/6(+),1/2(-) Output Power Voltage: 55Vdc Output Current: 2.9A User Port Power: 160W Guaranteen |

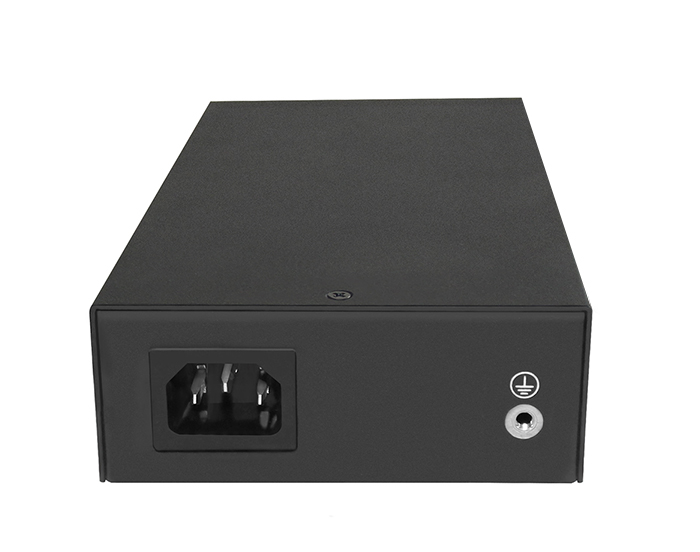

| Input | AC Input Voltage: 90 to 264Vac(100 to 240Vac Rated) AC Input Current: 3.0A Frequency: 47 to 63Hz (50/60Hz Typ.) |
| Working Environment | Operating Temperature: 0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV |

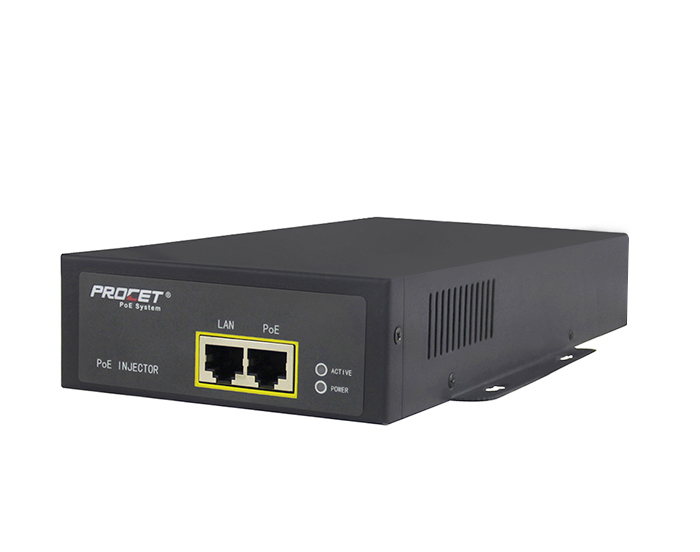

| Mechanical Characteristics | Case: Metal Color: Black Mounting: Wall-mounted IP Rated: IP20 Connectors: Shielded RJ-45*2 Size: 214mmX 134mmX 41mm Weight: 1070g（2.36lb） |
| LED Indicator | Power Indicator: Green PoE Load Indicator: Green |
Standing Stock
| Product Order Info.(Model) | PT-PSE109GXR |
| Stock Quantity | 100PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty: 10pcs/carton G.W.: 16Kgs Volume: 0.06 m³ Packing: Export Carton Pallet size: 110 x 110cm |
