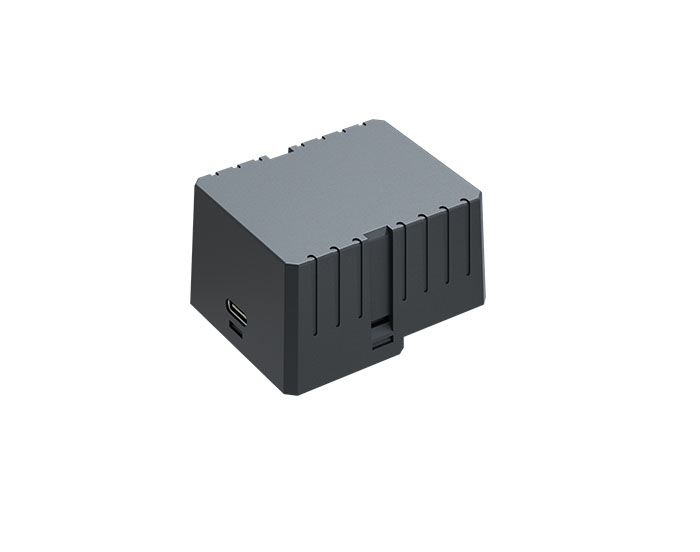

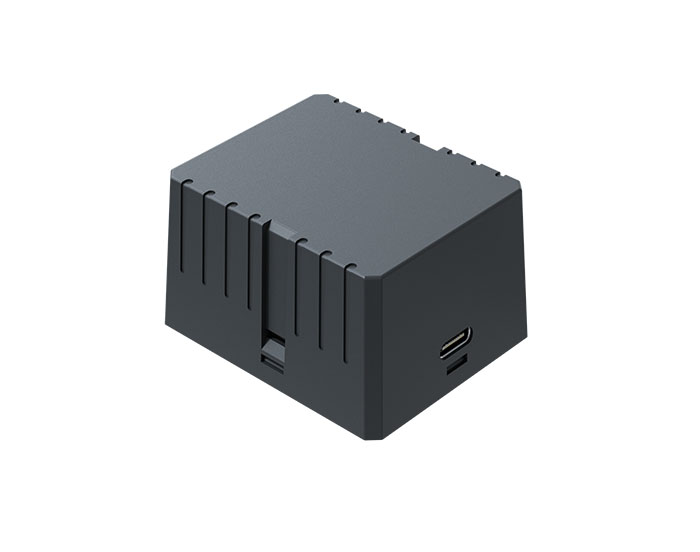

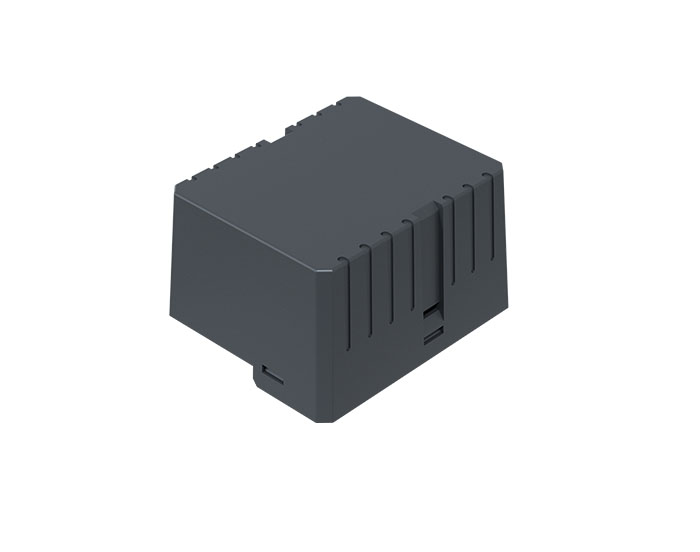

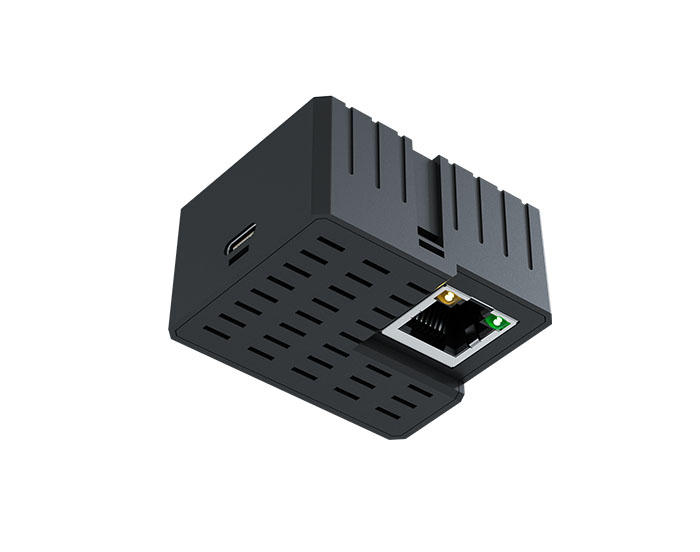

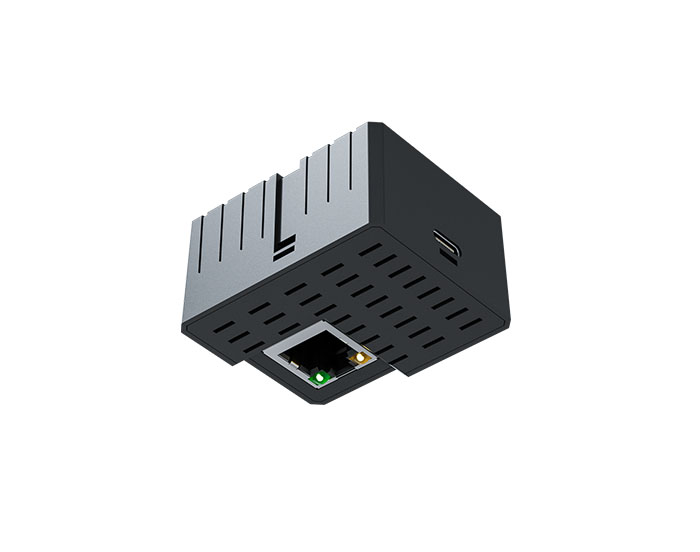

The PT-PGC-WAT delivers both power and connectivity in one streamlined solution. It converts IEEE802.3at PoE power and data from a PoE injector or switch into reliable USB-C PD output-while
simultaneously providing a stable 10/100/1000Mbps Ethernet connection for your device.

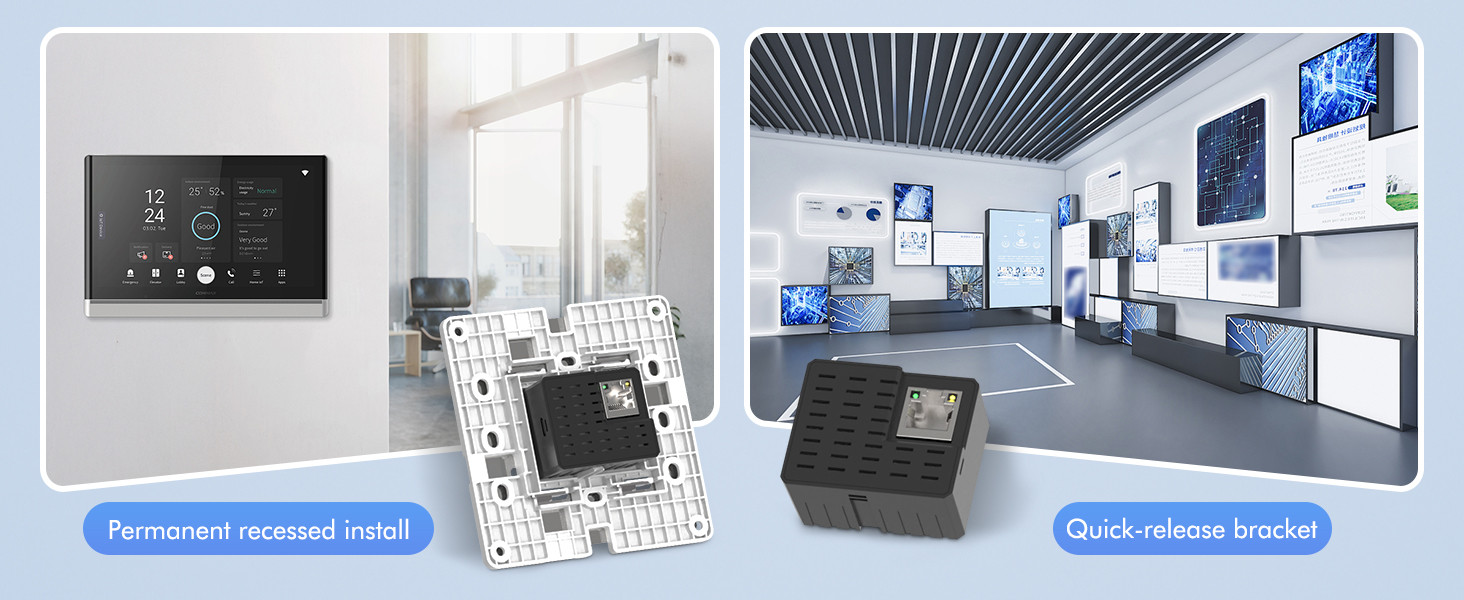

Housed in a sleek black plastic casing and paired with a dedicated wall-mount kit, it offers secure,space-saving installation. With safe input support up to 57V and 27W maximum USB-C output, it
ensures dependable performance over distances up to 100m via Cat5e/Cat6 cabling.
Compatible with most tablets,Android smartphones, and the latest USB-C Apple devices, the PT-PGC-WAT is an ideal choice for powering and networking your smart space-simply and efficiently.
Specifications
| Item | PT-PGC-WAT |
| Input Port | RJ45 |
| Input | 44-57Vdc 0.55AMax |
| Input Standard | IEEE 802.3at |
| Output Port | USB Type-C Female Connector |
| Output | 20V/1.15A 15V/1.37A 12V/1.45A 9V/3A 5V/2.6A |
| Output Power | 27W Max |
| Output Ripple | <100mV |
| Data Rate | 100/1000Mbps |
| USB Standard | USB3.0/USB2.0/USB1.1 |
| EMS | IEC61000-4-2(ESD),IEC61000-4-3(RS),IEC61000-4-4(EFT) |
| OCP | Hiccup mode |
| SCP | Hiccup mode |
| MTBF | 200000 Hours |
| Enclosure | Black Plastic |

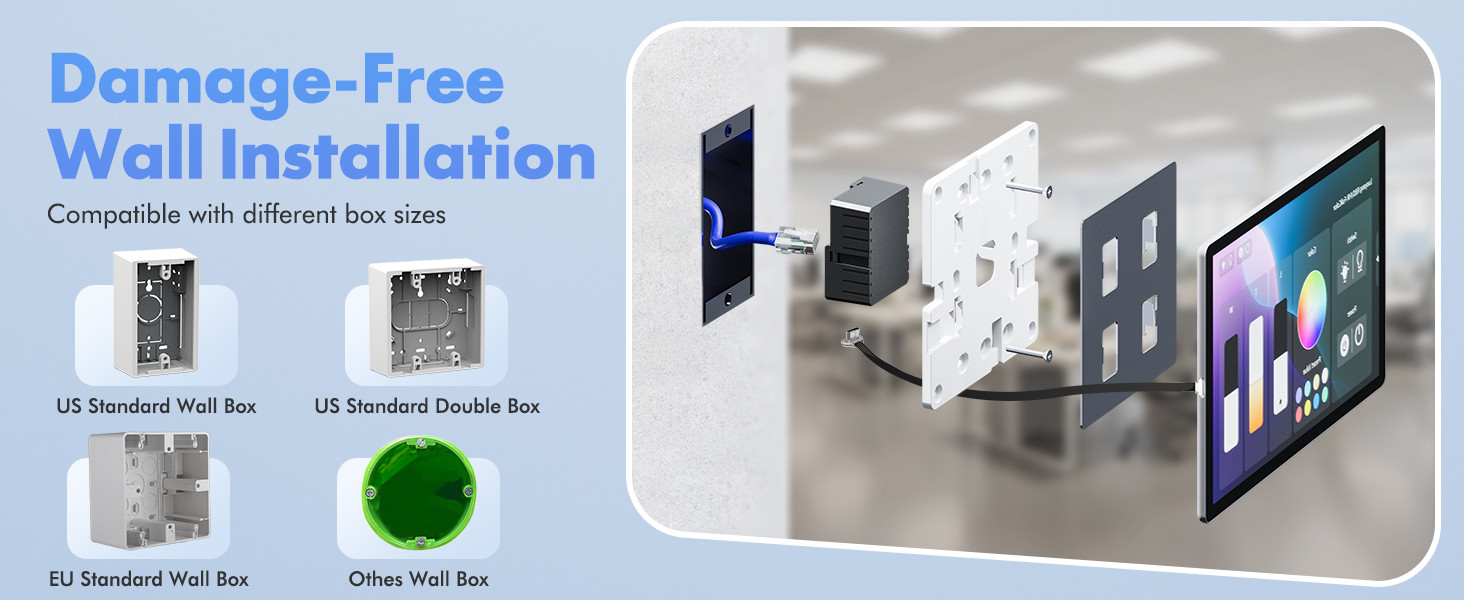

| Installation | Wall Box Installation |
| IP Rate | IP40 |
| OpTemp | 0C~40C |
| Op Humid | 20%-80%,non-condensing |
| Op Alt | Up to 2000m |
| Stor Temp | -20C~60C |
| Stor Humid | 10%-90%,non-condensing |

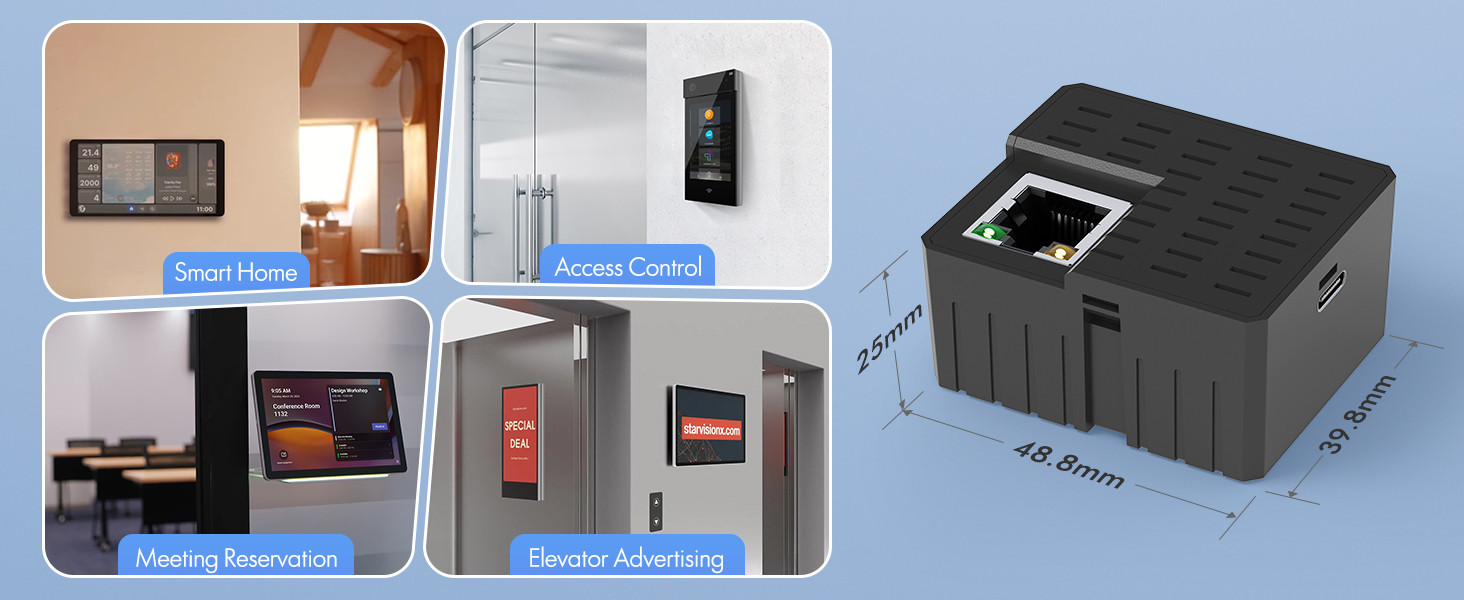

| Size | 50.1mmX41.0mmX25.2mm |
| Certification | CE FCC |
