PT-PSE106GRO is Wide Temp 30W PoE Injector specially designed for complex backhaul and networking applications. Enclosed in an IP40 fire retardant plastic case.
After negotiating IEEE802.3at standard PoE, the single PoE output port delivers 55Vdc, 0.55A up to 30W power with 6KV surge protection for remote PDs over 2 Pair at 10/100/1000Mbps data rates. It works with a wide input voltage of 100-240VAC, 50 or 60 Hz and operates under -40℃ to +65℃. It fully complies with IEEE802.3at and remains compatible with any IEEE802.3af compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks.
For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.
Specifications
Parameter | Description |
Key Features | Wide temperature at -40℃ to 65℃ make it possible for industrial use Lighting Protection Gigabit data rates AC power cord with optional US or EU plug or other standard plug Diagnostic LEDs |
Part Number | PT-PSE106GRO |

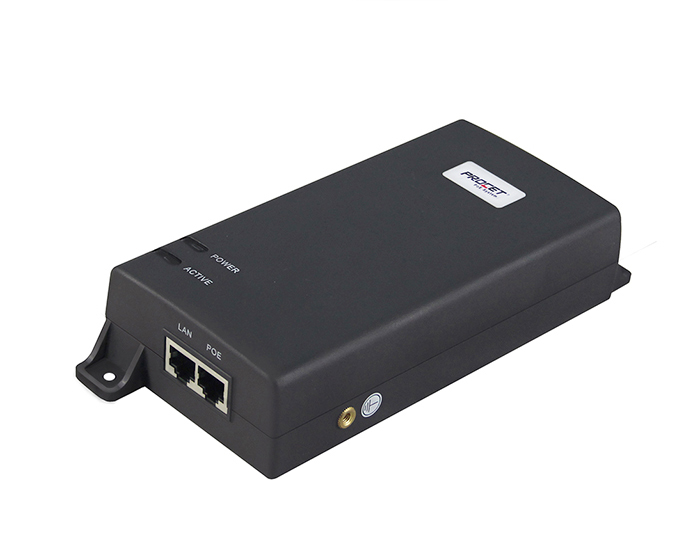

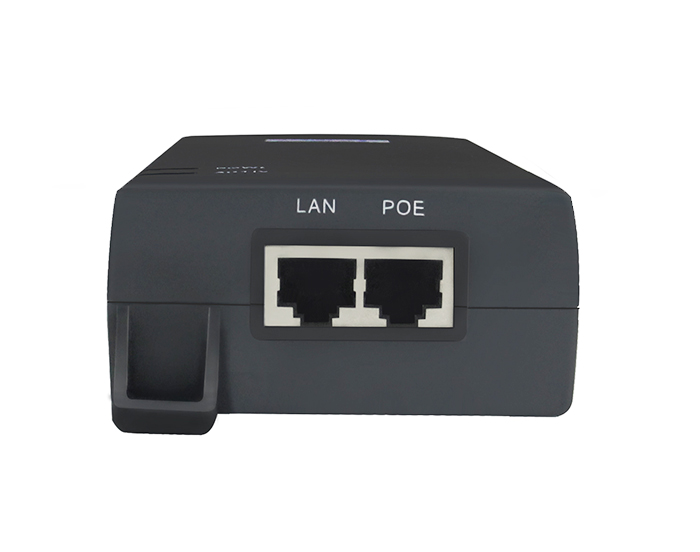

Ports condition | LAN Port*1, AC Input Port*1, PoE Output Port*1 |
Regulatory Compliance | IEEE802.3at RoHS Compliance WEEE Compliance |
Pass Through Data Rates | 10/100/1000 Mbps |
Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) Output Power Voltage: 55Vdc User Port Power: 30W Guaranteen |

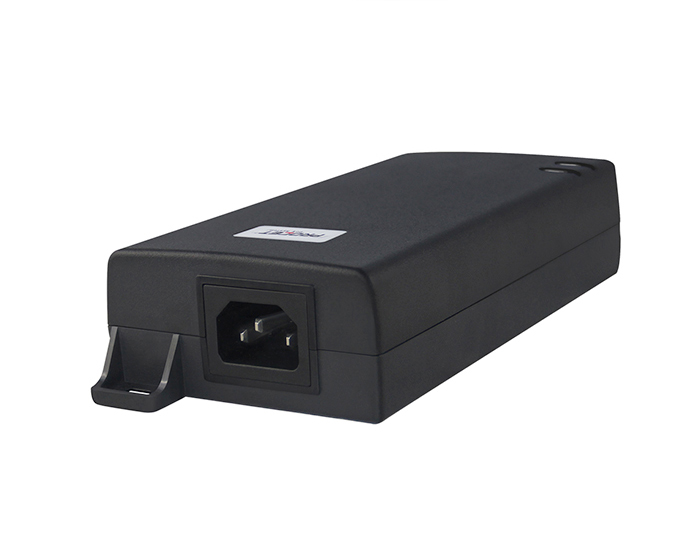

Input | AC Input Voltage:90 to 264Vac(100 to 240Vac Rated) Frequency: 47 to 63Hz (50/60Hz Typ.) |
Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV |
Mechanical Characteristics | Case: Plastic Color: Black Mounting: Wall-mounted IP Rated: IP40 Connectors: Shielded RJ-45 Size: 193mm X 85mm X 41mm Weight: 425g(0.94lb) |

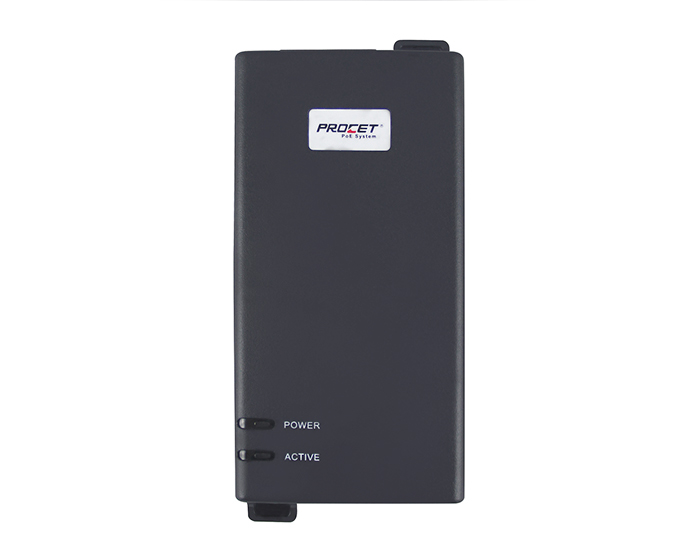

LED Indicator | Power Indicator: Green PoE Load Indicator: Green |
Safety Approvals | CE, FCC |
Standing Stock
Product Order Info.(Model) | PT-PSE106GRO |
Stock Quantity | 200PCS |
Warehouse Location | Dongguan China |
Sample Delivery Time | Within 24H |
Bulk Stock Delivery Time | Within 48H |
Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |

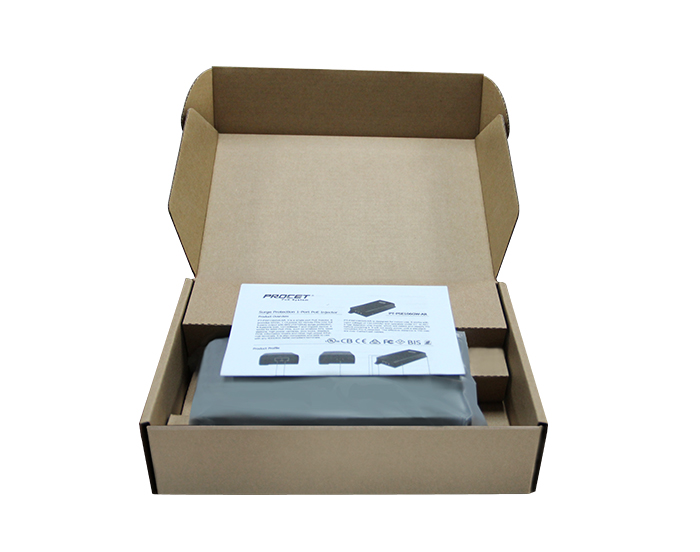

Packing Size | Qty: 20pcs/carton G.W.: 16Kgs Volume: 0.06 m³ Packing: Export Carton Pallet size: 110 x 110cm |
