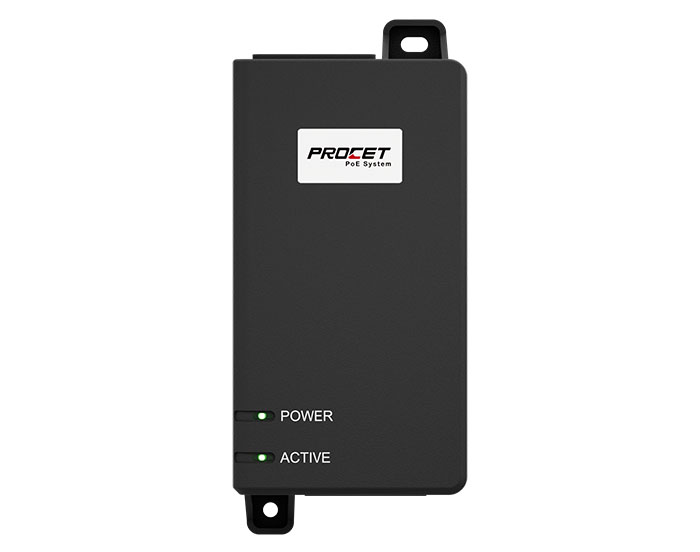

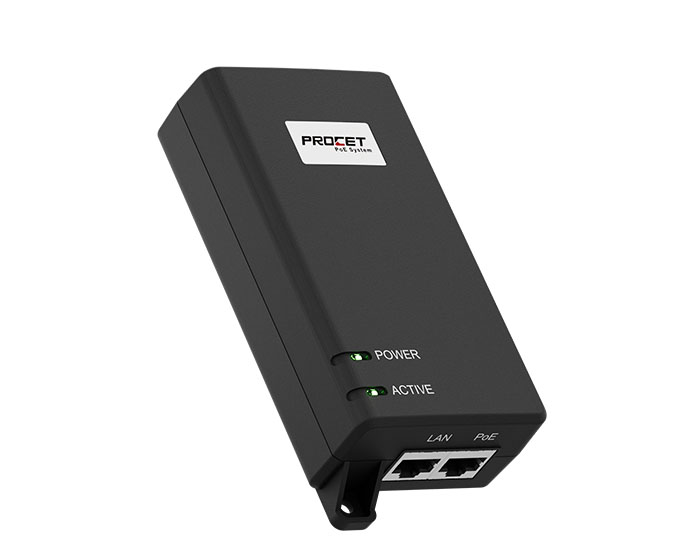

This single-port high-power PoE injector is ERP Class VI compliant and designed for indoor use. It supports100-240Vac input and delivers 55Vdc (1.1A) output, with a wide temperature range of -40°C to 40°C.
Supporting 10/100/1000Mbps data rates, it transmits data and power up to 100m via Cat5e/Cat6 cable susing 4,5(+)/7,8(-) and 3,6(+)/1 ,2(-) wiring. It's ideal for 60W devices such as wireless APs, IP cameras, and IP phones.
Fully compliant with IEEE802.3af/at/bt, it features intelligent power management for auto PD detection, power matching, and plug-and-play setup. It powers only standard-compliant devices, ensuring safety and simplifying installation without socket constraints.
Specifications
| Item | PT-PSE104GB-VI |

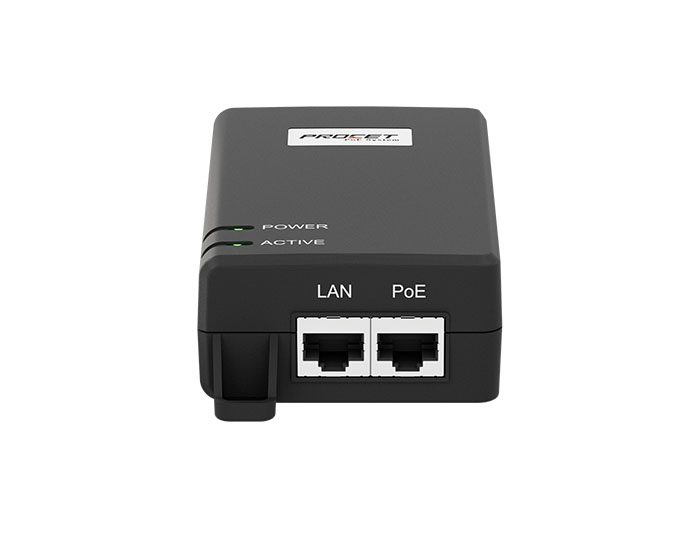

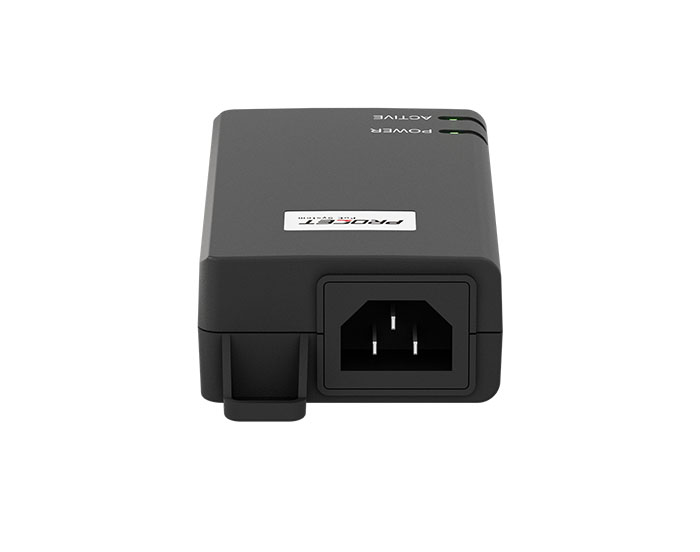

| Ports | AC Input*1 PoE*1 LAN*1 |
| PoE Standard | IEEE802.3af/at/bt Power over Ethernet |
| Input | 100-240Vac 47-63Hz, 115VAC: 1 5A Max 230VAC: 0.75A Max |
| PoE Output | 55Vdc 1.1A 60W Max |
| Power Pins | 4/5(+),7/8(-) and 3/6(+),1/2(-) |
| Energy Effiency | ≥88% |
| NLPC | ≤0.21W |
| Protections | Overvoltage Protection: ＜60V Overcurrent Protection:≤1.3A Short-circuit Protection: Automatic recovery after output shutdown |
| Surge Protection | AC Port Common Mode: 2KV Differential Mode: 1KV |
| Network Protocol | IEEE802.3 Ethernet IEEE802.3u Fast Ethernet IEEE802.3ab Gigabit Ethernet |
| Data Rate | 100/1000Mbps |
| Operate Temperature | -40°C- 40°C |
| Operate Humidity | 20%-80%，non-condensing |
| Operate Altitude | Below 5000 meters |
| Storage Temperature | -40°C- 70°C |
| Storage Himidity | 10%-90%，non-condensing |
| Enclosure | Plastic |
| Installation | Wall-Mounted Installation |
| IP Rate | IP40 |
| Size & Weight | 145.5mm X 65.8mm X 33.5mm(262.1g) |
| Certification | CE/FCC/ERP |
