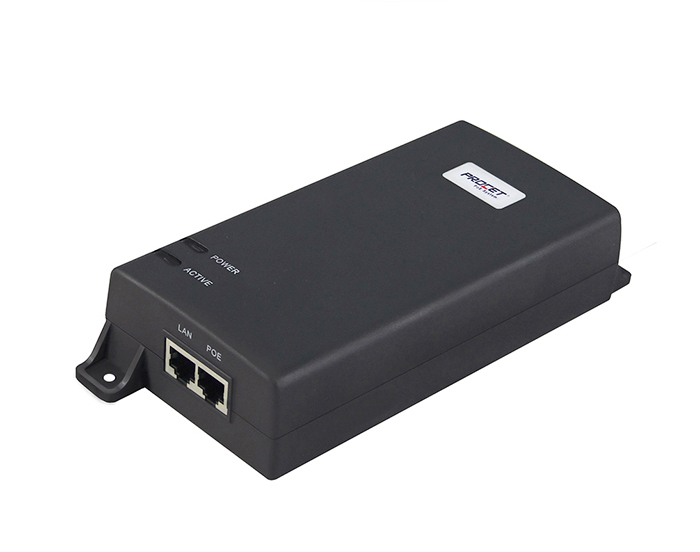

PT-PSE106GW is a 60W Gigabit PoE Injector with 4 Pair PoE up to 60 watts of power at 55 VDC at 1.1 amp.
Designed for the PoE++ powered 60W PoE Powered Devices (PDs), such as wireless APs, base stations, high power cameras, door locks, displays, POS, information kiosks and other high power Ethernet terminals. It is also compatible and safe to use with any IEEE802.3af/at compliant terminals. It supports 10/100/1000Mbps of data rates. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.
Enclosed in an IP40 plastic case, designed for indoor use. It operates with input voltage of 100-240 Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.Can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).
Specifications
| Parameter | Description |
| Key Features | Wall-mounted |
| Part Number | PT-PSE106GW |

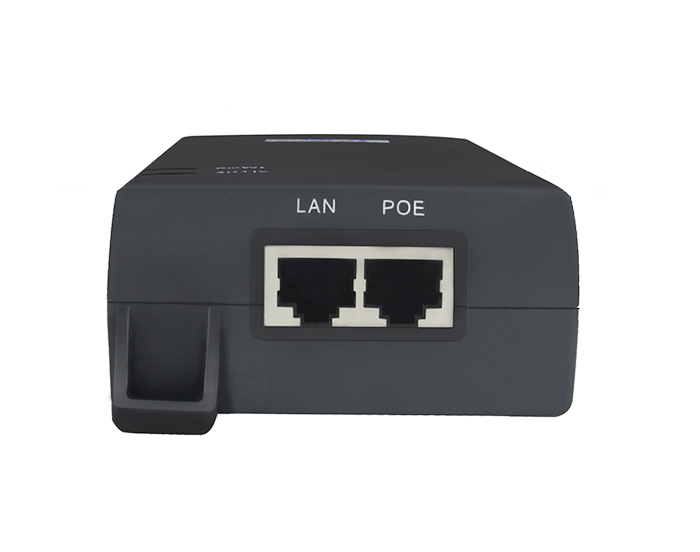

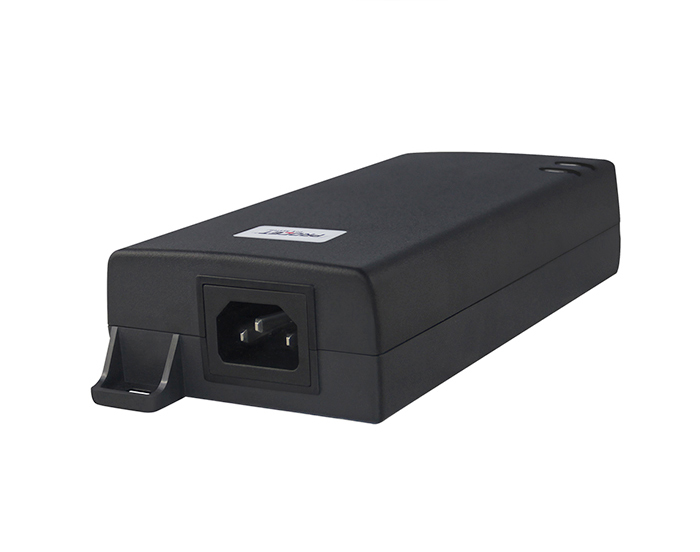

| Ports condition | LAN Port*1, AC Input Port*1, PoE Output Port*1 |
| Regulatory Compliance | IEEE802.3af/at PoE++ RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) & 3/6(+),1/2(-) Output Power Voltage: 55Vdc Output Power Current: 1100mA User Port Power: 60W Guaranteen |
| Input | AC Input Voltage: 100 to 240 Vac AC Input Current: 1.5A Frequency: 47 to 63Hz (50/60Hz Typ.) |
| Working Environment | Operating Temperature: 0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV |
| Mechanical Characteristics | Case: Plastic Color: Black Mounting: Wall-mountedIP Rated: IP40 Connectors: Shielded RJ-45*2 Size: 193mmX 85mmX 41mm Weight: 415g（0.88lb） |
| LED Indicator | Power Indicator: Green PoE Load Indicator : Green @≤30W Blue @>30W ≤60W |
| Safety Approvals | CE/FCC/UL/SAA/RCM/PSE |
Standing Stock
| Product Order Info.(Model) | PT-PSE106GW |
| Stock Quantity | 200PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |

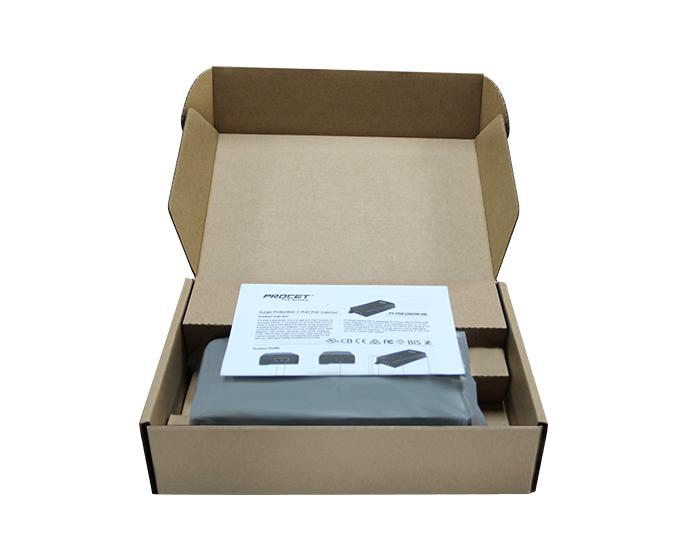

| Packing Size | Qty: 20pcs/carton G.W.: 16Kgs Volume: 0.06 m³ Packing: Export Carton Pallet size: 110 x 110cm |
