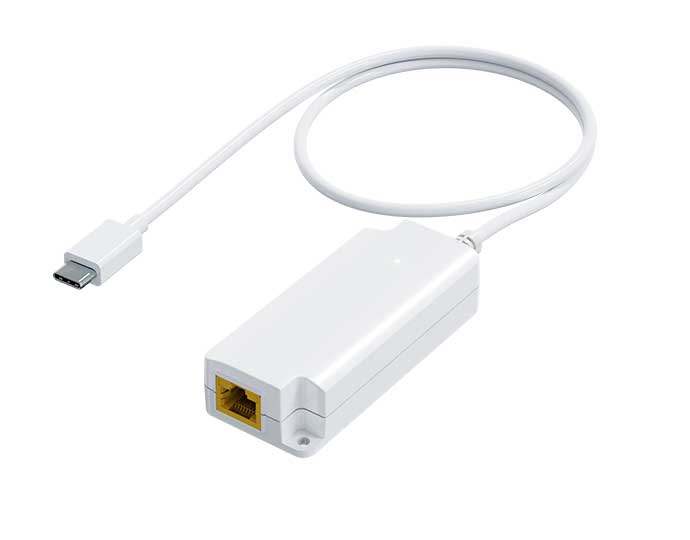

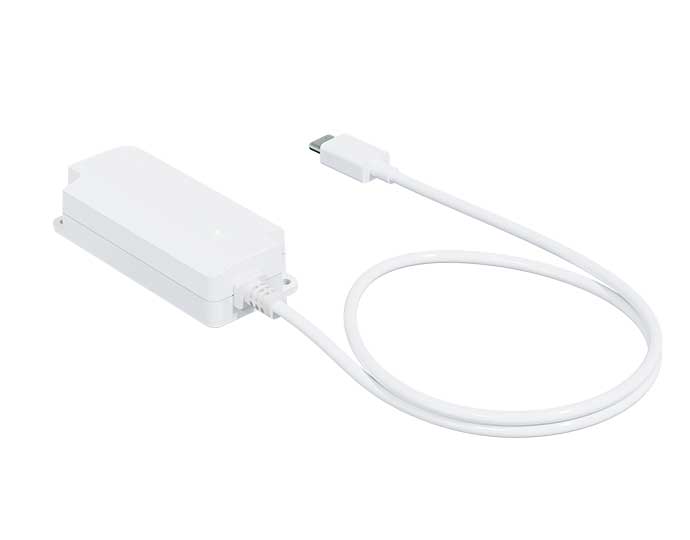

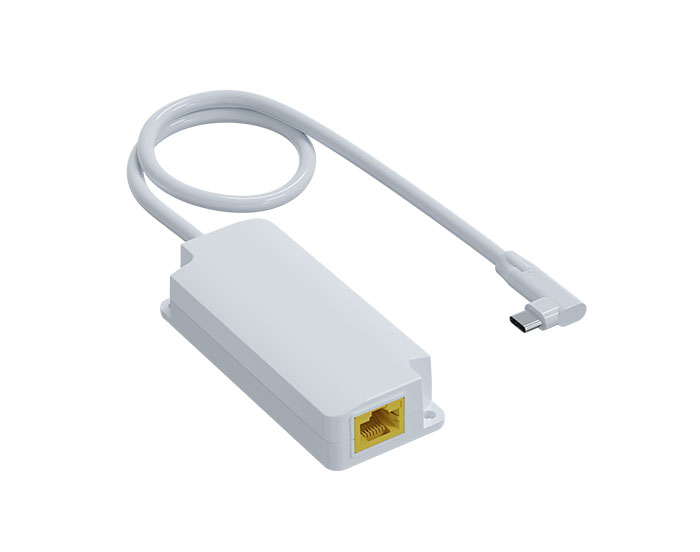

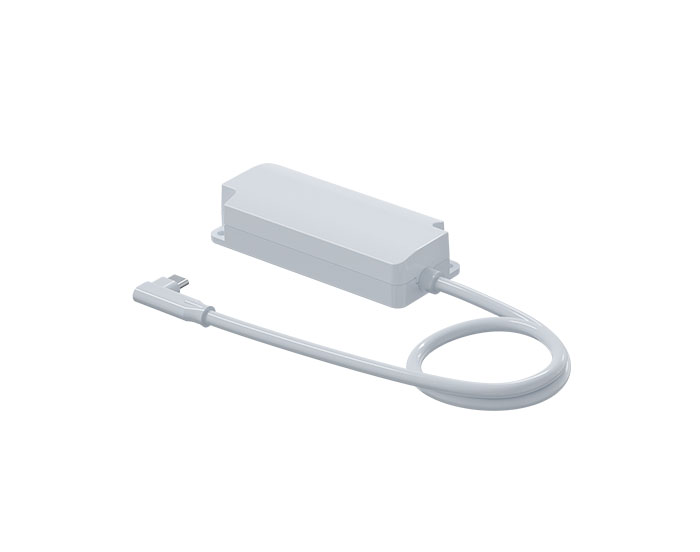

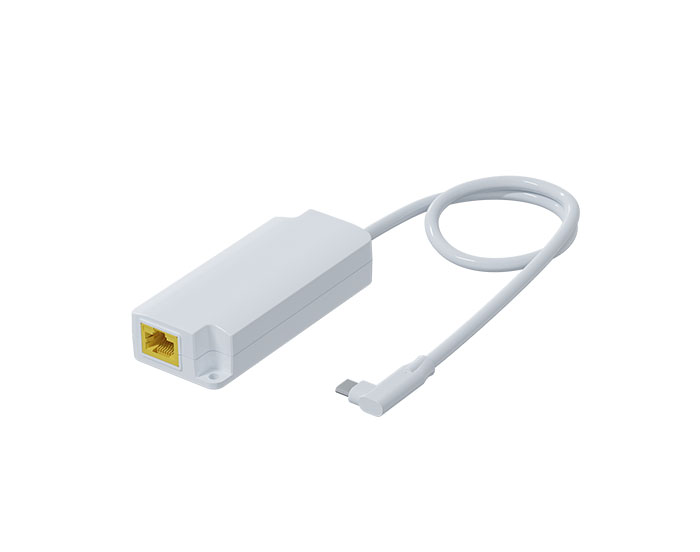

PT-PGC-AF  Gigabit PoE to USB-C Adapter

PT-PGC-AF is Gigabit PoE to USB-C Adapter. It allows power and data obtained from an IEEE802.3af  PoE injector or PoE switch to be provided to USB-C PD and network connectivity through the adapter.



PT-PGC-AF features a white plastic housing design, making it portable for on-the-go use or for fixed installations. The device operates within a safe voltage input of up to 57V and provides a power output  of 5V/2A and network data at 10/100/1000Mbps. The effective distance for PoE transmission via Cat5e/Cat6 Ethernet cable is 100 meters.


PT-PGC-AF is compatible with most tablets, Android smartphones, and the latest Apple smartphones with USB-C interface. When no PoE power source is fed, it can be regarded as a Gigabit Ethernet converter. That is Ethernet signal can be transmitted through two connected devices.


  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key Features1.802.3af PoE Injector/Switch input
2. Data Speed: 10/100/1000Mbps
3.Compact design
4. Compatible with most tablets, Android smartphones, and the latest Apple smartphones with USB-C interface.
Part NumberPT-PGC-AF
Regulatory ComplianceIEEE802.3 i/u/ab
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000Mbps
Output5Vdc 2.0A
User Port Power: 10W
InputPin Assignment and Polarity:
4/5(+),7/8(-) or 3/6(+),1/2(-) or 3/6(-),1/2(+)
DC Input Voltage: 40-57Vdc
PoE injector or PoE Switch 802.3af
Working EnvironmentOperating Temp.:0℃ to 40℃
Operating Altitude:
Operating Humidity:20% to 80%,non-condensation
Up to 2000 meters
Storage Temp:-20℃ to 85℃
Storage Humidity:10% to 90%,non-condensation
Mechanical CharacteristicsCase:Plastic (white)
IP Rated:IP40
Dimensions: (81.3 + 500)mm X 34.7mm X 19mmS
Weight:51.4g
