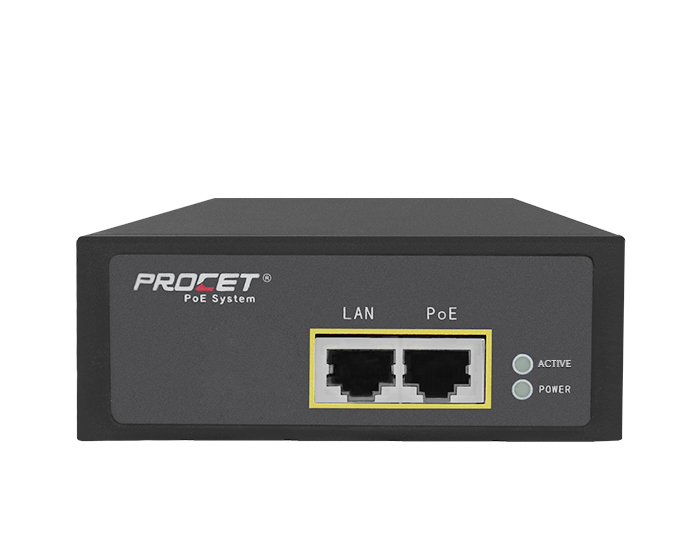

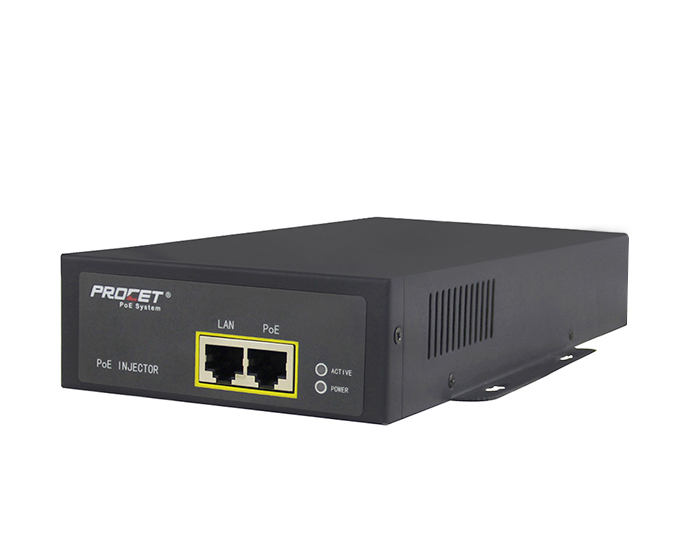

PT-PSE109GBRO 95W Gigabit Surge PoE Injector

PT-PSE109GBRO 95W Gigabit Surge PoE Injector with 4 Pair PoE up to 95 watts of power at 55 Vdc at 1.75 Amp.


Designed for the PoE++ powered 95W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.


Enclosed in an IP20 high-impact metal case, designed for indoor use but can work outdoor by covered with waterproof case. It works with a wide input voltage of 100-240VAC with 6KV surge protection, 50 or 60 Hz and operates under -40℃ to +65℃. The effective distance limitation is 100 meters over Cat5e/Cat6 cables.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key FeaturesIndustrial PoE can be outdoor use by covered with waterproof case
Extend temperature from -40℃ to 65℃
Lighting Protection at PoE port
Gigabit data rates
IP20 high-impact metal enclosure

AC power cord with optional US or EU plug or other standard plug

Diagnostic LEDs

Part NumberPT-PSE109GBRO
Ports conditionLAN Port*1, AC Input Port*1, PoE Output Port*1
Regulatory ComplianceIEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:
4/5(+), 7/8(-) and 3/6(+),1/2(-)
Output Power Voltage: 55Vdc
User Port Power: 95W Guaranteen

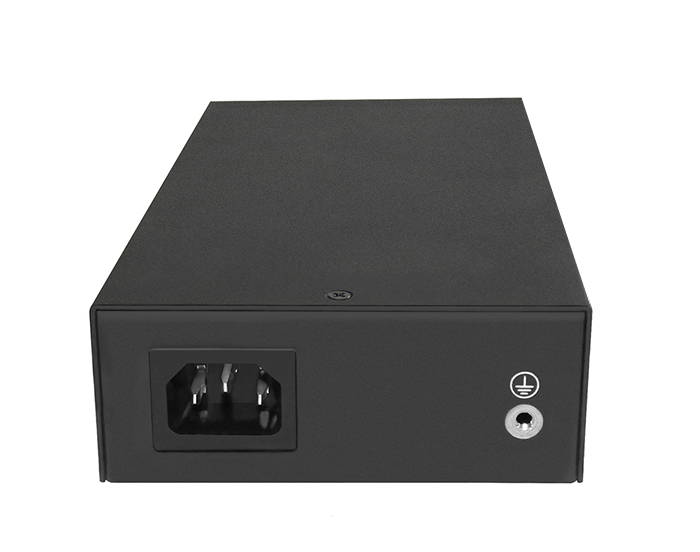

InputAC Input Voltage:90 to 264Vac(100 to 240Vac Rated)
AC Input Current: 2.0A
Frequency: 47 to 63Hz (50/60Hz Typ.)
Working EnvironmentOperating Temperature: -40 to 65
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40
to 85
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV
Mechanical CharacteristicsCase: Metal
Color: Black
Mounting:Wall-mounted
IP Rated: IP20
Connectors: Shielded RJ-45*2
Size: 214 X 134 X 41mm
Weight: 1070g
2.36lb
LED IndicatorPower Indicator: Green
PoE Load Indicator: Green
Safety ApprovalscUL/UL, CE, CB, FCC, RCM, NOM


Install Video

None

Standing Stock

Product Order Info.(Model)PT-PSE109GBRO
Stock Quantity100PCS
Warehouse Location Dongguan China
Sample Delivery TimeWithin 24H
Bulk Stock Delivery TimeWithin 48H
Shipping WayDHL,UPS,FedEx,TNT,
By SEA/AIR
Customer Nominated Forwarder
Packing SizeQty: 10pcs/carton
G.W.: 15.5Kgs
Volume: 0.04 m³

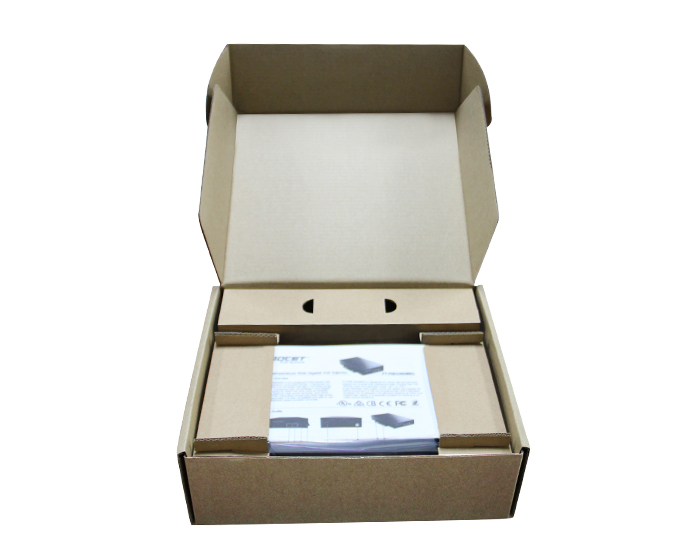

Packing: Export Carton
Pallet size: 110 x 110cm
