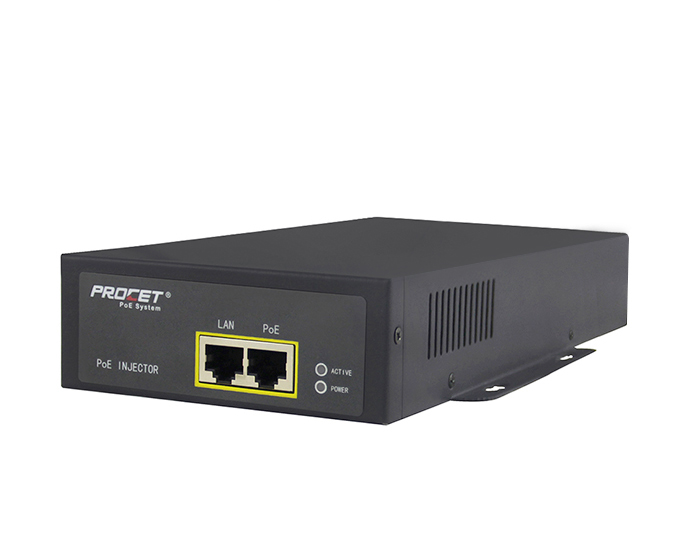

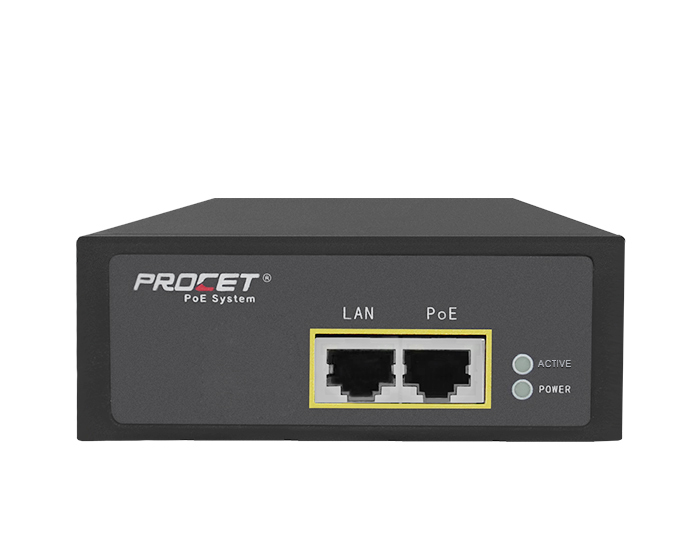

PT-PSE107GRO-A PoE RJ45 surge protector specially designed for complex industrial backhaul and networking applications. Enclosed in an IP20 high-impact metal case.
After negotiating IEEE802.3bt standard PoE, the single PoE output port delivers 55Vdc, 1.1A up to 60W power with 6KV surge protection for remote PDs over 4 Pair at 10/100/1000Mbps data rates. It works with a wide input voltage of 100-240VAC with 6KV surge protection, 50 or 60 Hz and operates under -40℃ to +65℃. It fully complies with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks.
For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.
Specifications
| Parameter | Description |
| Key Features | Industrial PoE can be outdoor use by covered with waterproof case Extend temperature from -40℃ to 65℃ Lighting Protection Gigabit data rates AC power cord with optional US or EU plug or other standard plug Diagnostic LEDs |
| Part Number | PT-PSE107GRO-A |
| Ports condition | LAN Port*1, AC Input Port*1, PoE Output Port*1 |
| Regulatory Compliance | IEEE802.3bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (–) and 3/6(+),1/2(-) Output Power Voltage: 55Vdc User Port Power: 60W Guaranteen |

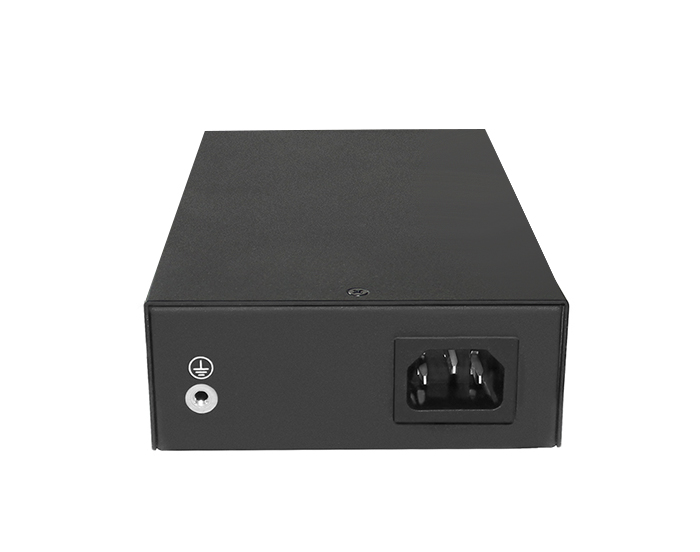

| Input | AC Input Voltage:90 to 264Vac(100 to 240Vac Rated) Frequency: 47 to 63Hz (50/60Hz Typ.) |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 6KV Line-Line 1.2/50us (8/20us): 4KV |
| Mechanical Characteristics | Case: Metal Color: Black Mounting: Wall-mounted IP Rated: IP20 Connectors: Shielded RJ-45 Size: 204mm X 130mm X 41mm Weight: 737g（1.6lb） |
| LED Indicator | Power Indicator: Green PoE Load Indicator: Green |
| Safety Approvals | CE, FCC |
Standing Stock
| Product Order Info.(Model) | PT-PSE107GRO-A |
| Stock Quantity | 100PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 2-3weeks |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |

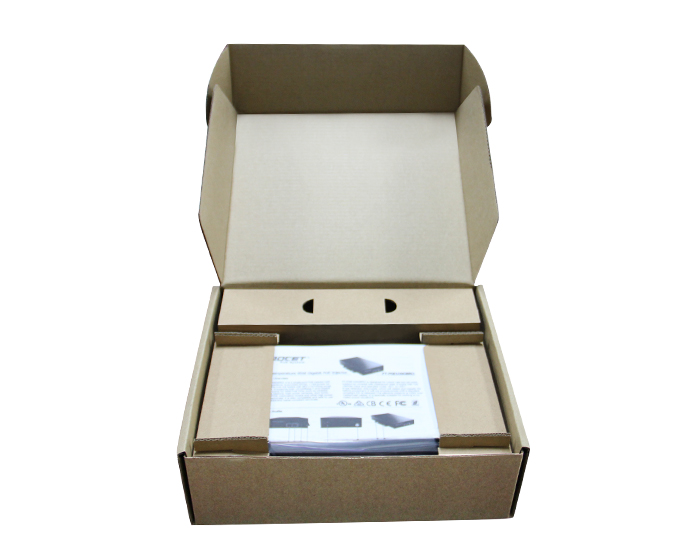

| Packing Size | Qty: 10pcs/carton G.W.: 13Kgs Volume: 0.04 m³ Packing: Export Carton Pallet size: 110 x 110cm |
