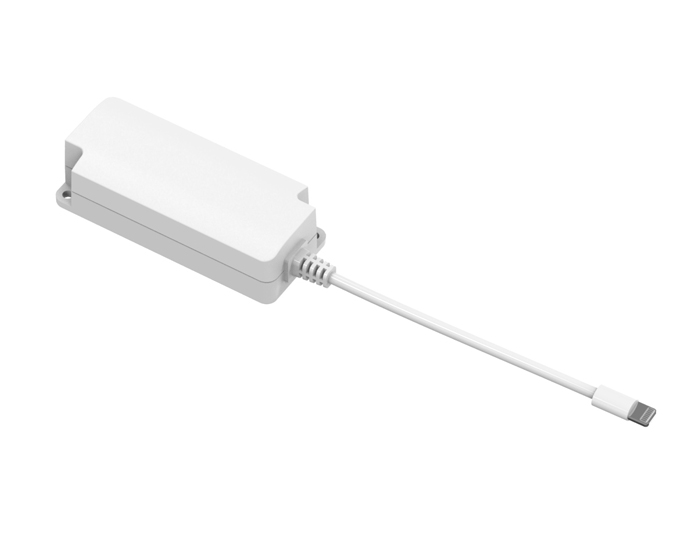

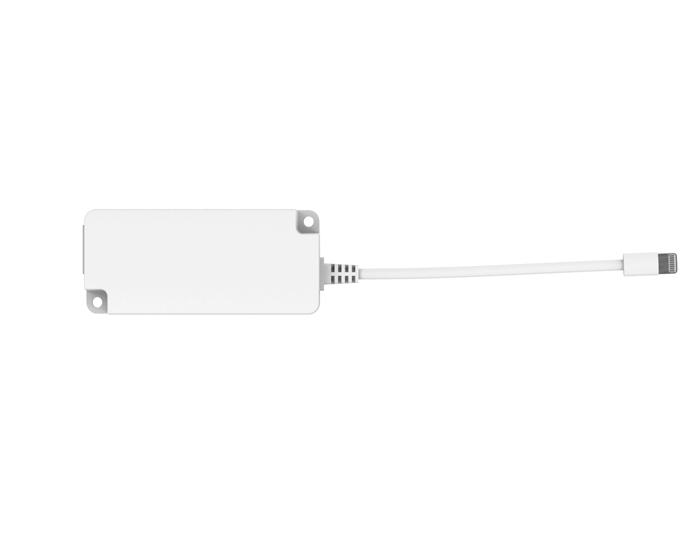

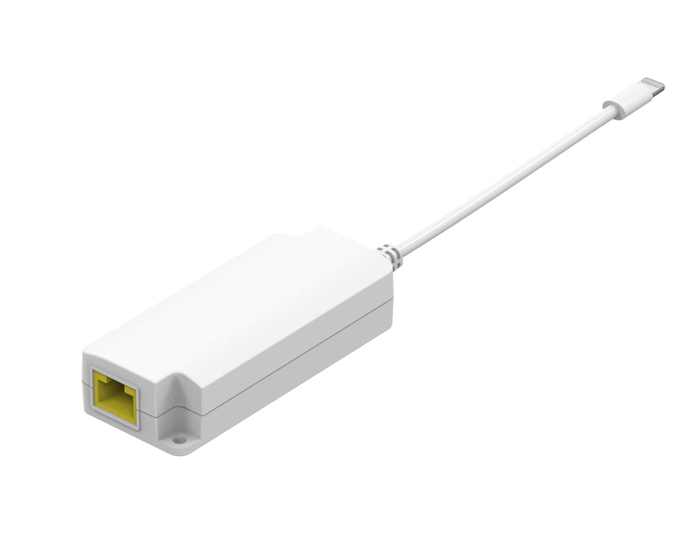

PTAP-AF PoE to Apple Lightning Adapter

PTAP-AF is a single port splitter with 2 Pairs PoE up to 12.5 watts of power at 5VDC.



It works as a converter separating power and data from the PoE injector and delivering power and data to non-PoE devices. It supports 10/100/1000Mbps of data speed. It works for 12.5W non-PoE PDs, such as high power communication stations, wireless APs, network cameras and other non-PoE terminals. It is an isolated design inside to avoid high current input damage. Innovative technology increase energy-efficient up to 93%.


Enclosed in a high-impact metal shell, designed for indoor installation. It operates with input voltage of 40-57 VDC. The effective distance limitation of 100 meters over Cat5e/Cat6 cables. The model is easy to install with four mounting holes.



  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key Featuresaf standard 12.5W indoor PoE Splitter
Part NumberPTAP-AF

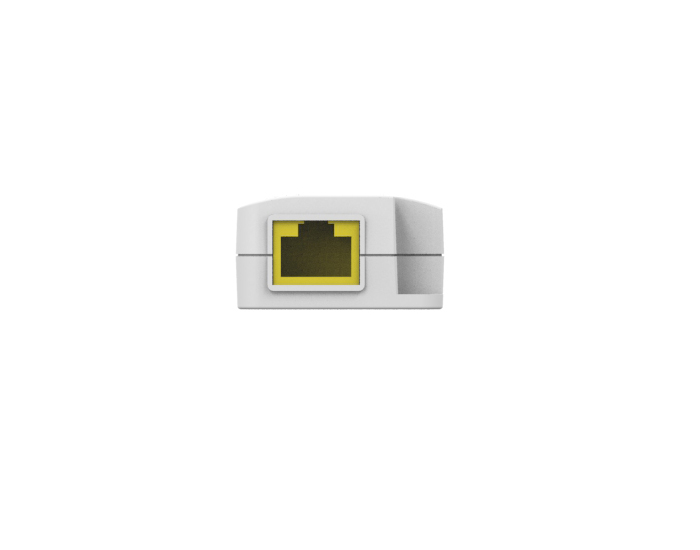

Ports  conditionRJ45 Female*1,
Apple Lightning Male*1
PoE output12.5 W
Data rates10/100Mbps
Power input40-57Vdc PoE injector/PoE Switch 802.3af/at
Power output5Vdc 2.0A @0 to 55℃,
5Vdc 2.5A(max) @0 to40℃
Regulatory ComplianceIEEE 802.3af
RoHS Compliance
WEEE Compliance
Working EnvironmentOperating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 2000meters
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV
Mechanical Characteristics - Size: (81.3+130.9)mm X 34.7mm X 19mm
 - Weight: 200g
Safety  ApprovalsCE, FCC
