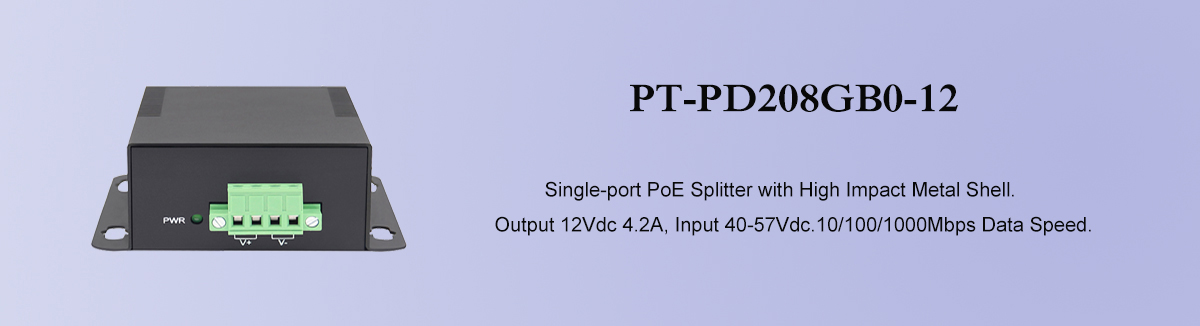

PT-PD208GBO-12  Single-port Splitter

PT-PD208GBO-12 is a single port splitter with 4 Pair PoE up to 60 watts of power at 55 VDC

It works as a converter separating power and data from the PoE injector and delivering power and data to non-PoE devices. It supports 10/100/1000Mbps of data speed. It works for 60W non-PoE PDs, such as high power communication stations, wireless APs, network cameras, and other non-PoE terminals. It is an isolated design inside to avoid high current input damage. Innovative technology increase energy-efficient up to 93%.

Enclosed in a high-impact metal shell, designed for indoor installation. It operates with input voltage of 40-57 VDC. The effective distance limitation of 100 meters over Cat5e/Cat6 cables. The model is easy to install with four mounting holes.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock


Key Featuresbt standard 51W indoor PoE Splitter
Part NumberPT-PD208GBO-12
Ports  conditionLAN Port*1, Input PoE  Port*1, DC Output Port*1
PoE output25.8W
Data rates10/100/1000Mbps
Power inputPoE++OR BT 40-57Vdc 2.0A Max
Power output12V/4.25A
Regulatory ComplianceIEEE 802.3bt
RoHS Compliance
WEEE Compliance
Working EnvironmentOperating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 2000meters
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV
Mechanical CharacteristicsSize: 128mm X 89mm X 36mm
Weight: 350g
Safety  ApprovalsCE, FCC
