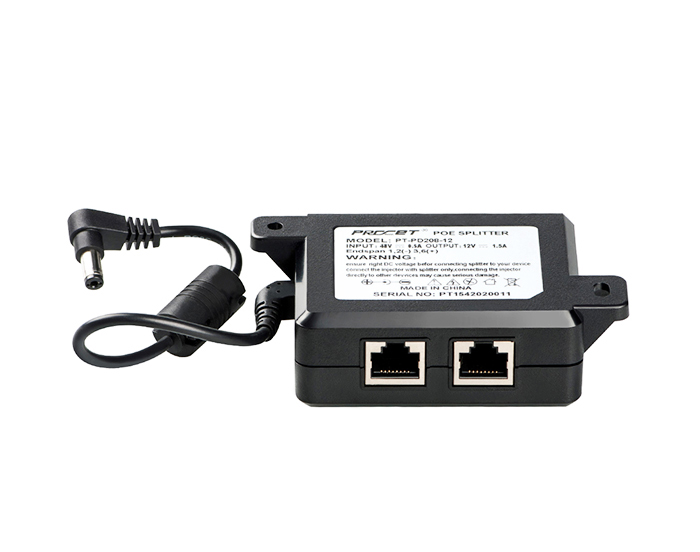

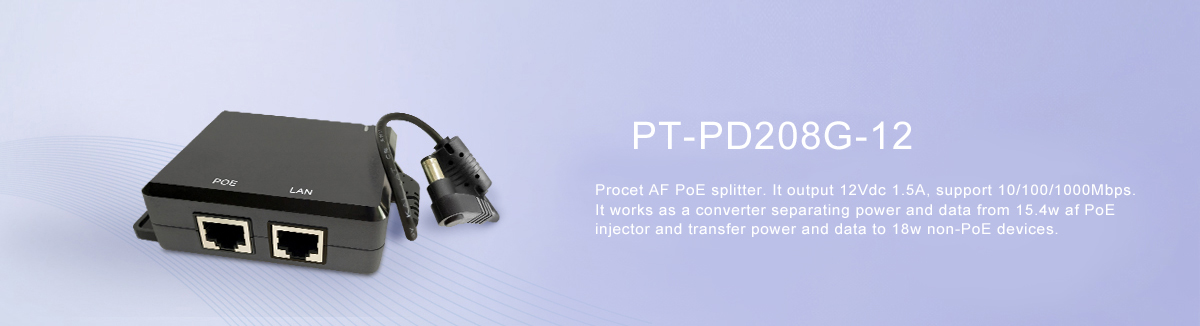

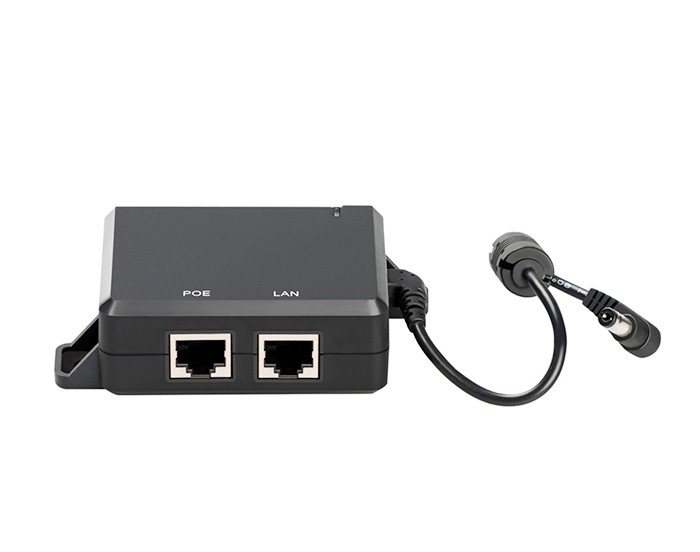

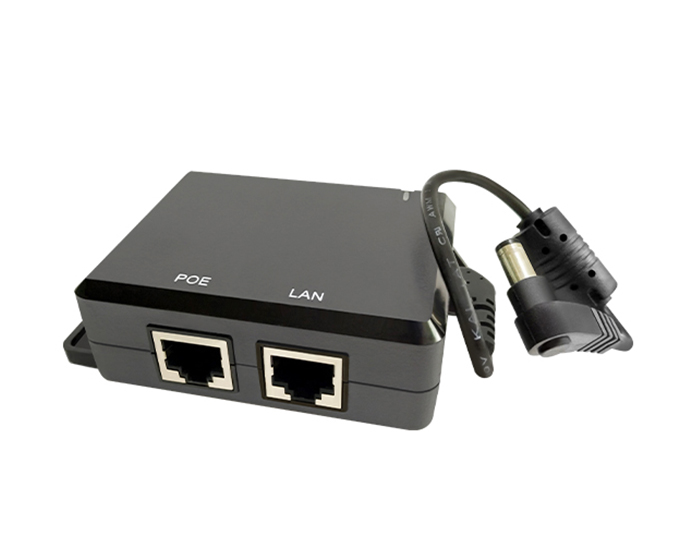

PT-PD208G-12 12V PoE splitter

PT-PD208G-12,  IEEE802.3af PoE splitter. It works for 18W non-PoE PDs, such as network phone, wireless AP, network camera ONU (Optical Network Unit).

Its output power is 12Vdc 1.5A. It supports 10/100/1000Mbps of data speed. The power pin: 4/5(+), 7/8(-) or 3/6(+),1/2(-)

PT-PD208G-12 is designed for indoor use. It works with input voltage of 36-57Vdc from PoE injector. The effective distance is 100 meters over Cat5e/Cat6 cables. The model is small in size and easy to install with two mounting holes.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock


Key FeaturesEconomic
af PoE splitter
Pin 4/5(+), 7/8(-) or 3/6(+),1/2(-)
Part NumberPT-PD208G-12
Ports conditionLAN Port*1, Input PoE    Port*1, DC Output Port*1
Regulatory ComplianceIEEE802.3at
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:
4/5(+), 7/8(-) or 3/6(+),1/2(-)
DC Power Voltage: 12Vdc
DC Power Current: 0.5A
User Port Power: 18W Guaranteen
InputDC Power Voltage: 36-57Vdc (Typical 48V)
DC Power Current : 0.5A
Working EnvironmentOperating Temperature: 0 to 40
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -20
to 70
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 2000meters
Mechanical CharacteristicsCase: Plastic
Color: Black
Mounting: Wall-mounted
IP Rated: IP40
Connectors: Shielded RJ-45*2, Tuning fork interface* 1
Size: 101mm X 61mm X 29mm
Weight: 119g
LED IndicatorPower Indicator: Green
Warranty2 year
Safety ApprovalsCE


Standing Stock

Product Order Info.(Model)PT-PD208G-12
Stock Quantity100PCS
Warehouse Location Dongguan China
Sample Delivery TimeWithin 24H
Bulk Stock Delivery TimeWithin 48H
Shipping WayDHL,UPS,FedEx,TNT,
Customer Nominated Forwarder
Packing SizeQty: 20pcs/carton
G.W.: 16Kgs
Volume: 0.06 m³
Packing: Export Carton
Pallet size: 110 x 110cm
