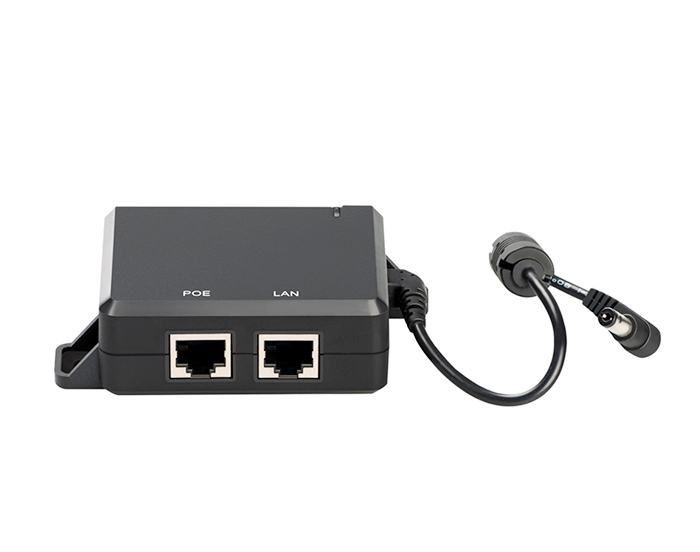

PT-PD208GMO-5/12/24Vdc Input

PT-PD208GMO-5/12/24,  IEEE802.3 at PoE splitter with  isolated design. It works for 20/25.8/25.2W non-PoE PDs, such as network phone, wireless AP, network camera ONU (Optical Network Unit).

Its output power is 5Vdc 4A or 12Vdc 2.15A or 24Vdc 1.05A. It supports 10/100/1000Mbps of data speed. The power pin: 4/5(+), 7/8(-) .It is an isolated design inside to avoid high current input damage.

PT-PD208GMO-5/12/24 is designed for indoor use with matel shell. It works with input voltage of 40-57Vdc from PoE injector and operates under -40℃ to 65 ℃. The effective distance is 100 meters over Cat5e/Cat6 cables. The model is small in size and easy to install with four mounting holes.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock


Key FeaturesMatel shell
Isolated design
Pin 4/5(+), 7/8(-)
Part NumberPT-PD208GM-5/9/12/24
Ports conditionLAN Port*1, Input PoE  Port*1, DC Output Port*1
Regulatory ComplianceIEEE802.3at
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:
 4/5(+), 7/8(-)
Power Voltage: 5Vdc or 12Vdc or 24Vdc
Power Current: 4A or 2.15A or 1.05A
User Port Power:20/25.8/25.2W Guaranteen
InputOperating Voltage: 40-57Vdc (Typical 55V)
Power Current:  1.0A
Working EnvironmentOperating Temperature: -40 to 65
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40
to 85
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 2000meters
Mechanical CharacteristicsCase: Metal
Color: Black
Mounting:  Wall-mounted
IP Rated: IP20
Connectors: Shielded RJ-45*2, DC Terminal*1
Size: 128mm X 89mm X 36mm
Weight: 350g
LED IndicatorPower Indicator: Green
Warranty2 year
Safety ApprovalsCE/FCC


Standing Stock

Product Order Info.(Model)PT-PD208GMO-5
Stock Quantity100PCS
Warehouse Location Dongguan China
Sample Delivery TimeWithin 24H
Bulk Stock Delivery TimeWithin 48H
Shipping WayDHL,UPS,FedEx,TNT,
Customer Nominated Forwarder
Packing SizeQty:20pcs/carton
Volume:0.06 m³
Packing: Export Carton
Pallet size:110 x 110cm
