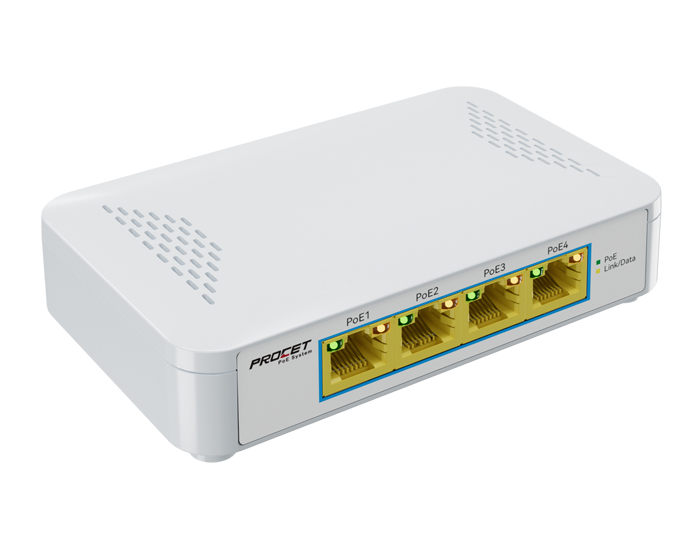

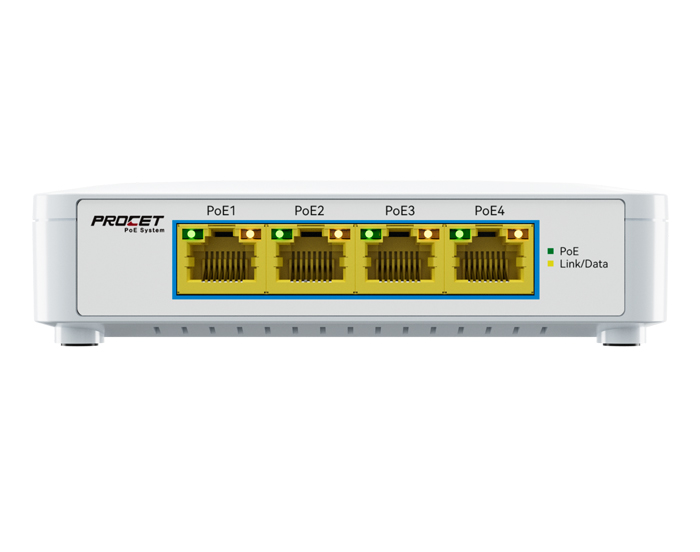

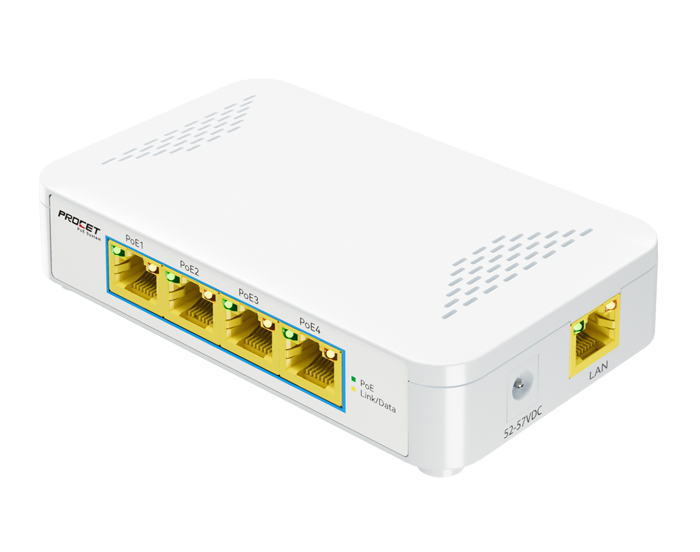

EN-S4P is a 4-port Gigabit PoE switch with an uplink RJ45 LAN data port, can deliver power and transmit data to 4 802.3af/at PDs simultaneously, total power budget is 60W. Come with an AC to DC power supply at Level 6 energy efficiency. Good heat dissipation with ventilation holes to ensure long-term stable operation.
Specifications
| Parameter | Description |
| Model | EN-S4P |
| PoE Power Pins | 3/6(+)，1/2(-) |
| Class Level | Class 4 |
| Standard | IEEE802.3i 10Base-T Ethernet |
| IEEE802.3u 100Base-Tx Fast Ethernet | |
| IEEE802.3ab 1000Base-T Gigabit Ethernet | |
| CE | |
| PoE standard：IEEE802.3 af / at | |
| Input & Output | Interfaces：LAN*1，PoE*4，DC*1 |
| LAN Input：RJ45 Ethernet | |
| DC Input：55Vdc 1.1A | |
| PoE Total Power：60W | |
| PoE Output：802.3af/at, 30W(max)*4 Ports | |
| Output:802.3af/at, 30W(max)*4 Ports, total 60W | |
| Data Speed：10 / 100 / 1000Mbps | |
| Operating Environment | Work Temp.：0℃ to 40℃ |
| Operating Humidity: 20% to 80%, non-condensation | |
| Storage Humidity：10%-90%，non-condensation | |
| Storage Temp：-20℃ to 70℃ | |
| Operating Altitude：Up to 2000 meters | |
| Mechanical Characteristics | Case: Plastic |
| Color: White | |
| IP Rated：IP20 | |
| Dimensions： 116.4mm X 71.3mm X 30.5mm | |
| Weight：151.3g | |
| Network Protocol | IEEE802.3i |
| IEEE802.3u | |
| IEEE802.3ab | |
| EMC | EN 55035:2017/A11:2020 |
| EN 55032:2015/A11:2020 | |
| PoE Load Indicator （Green） | Solid Light：PD is powered(Default/Normal) |
| Light Off：No connection to PD | |
| Data Indicator （Yellow） | Flashing Light：Data available(Normal) |
| Light Off：No Data transmission | |
| Light Off | PoE Switch is powered off/defective. |
