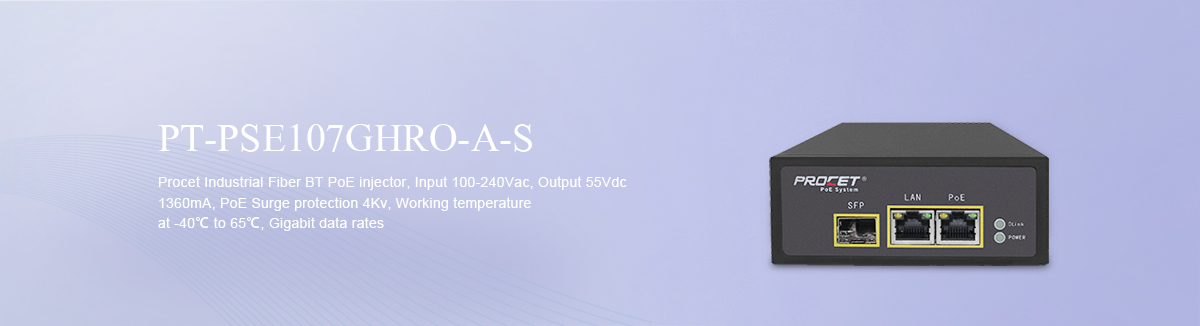

PT-PSE107GHRO-A-S 75W SFP PoE Converter

PT-PSE107GHRO-A-S is an industrial rated fiber PoE midspan converter specially designed for complex industrial backhaul and networking applications, special scenarios, like highway side, exurb, etc.. Enclosed in an IP20 high-impact metal case but can work outdoor by covered with waterproof case.

After negotiating IEEE802.3bt standard PoE, the single PoE output port delivers 55Vdc, 1.36A up to 75W power with 4KV surge protection for remote PDs over 4 Pair at 1000Mbps data rates.  It works with a wide input voltage of 100-240VAC with 6KV surge protection, 50 or 60 Hz and operates under -40℃ to +65℃. It fully complies with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks.

For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock


Key FeaturesIndustrial Fiber PoE can be outdoor use by covered with waterproof case
Extend temperature from -40 to 65
Lighting Protection both at AC and PoE port
SFP fiber Optical Slot: 1000Base-FX to 1000Base-TX,  support single-mode or multi-mode transceivers
RJ45 Port: 1000Mbps(Gigabit), supports Full/Half Duplex auto-negotiation and MDI/MDIX auto-crossover
IP20 high-impact metal enclosure
AC power cord with optional US or EU plug or other standard plug
Diagnostic LEDs
Equipped both with LAN and SFP  slot
Part NumberPT-PSE107GHRO-A-S
Ports conditionLAN Port*1, AC Input   Port*1, PoE Output Port*1, SFP Port*1
Regulatory ComplianceIEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:
4/5(+), 7/8(-) and 3/6(+),1/2(-)
Output Power Voltage: 55Vdc
User Port Power: 75W Guaranteen
InputAC Input Voltage:90 to 264Vac(100 to 240Vac Rated)
AC Input Current: 1.5A
Frequency: 47 to 63Hz (50/60Hz Typ.)
Working EnvironmentOperating Temperature: -40 to 65
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40
to 85
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 4KV
Differential mode surge protection (10/700us): 1.5KV
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 6KV
Line-Line 1.2/50us (8/20us): 4KV
Mechanical   CharacteristicsCase: Metal
Color: Black
Mounting: Wall-mounted
IP Rated: IP20
Connectors: Shielded RJ-45*2, SFP slot*1
Size:204 X 130 X 41mm
Weight: 737g1.62lb
LED IndicatorPower Indicator : Green
PoE Load Indicator : Green
SFP fiber indicator: Green
PoE data indicator: Yellow
Warranty2 year


Standing Stock

Product Order Info.(Model)PT-PSE107GHRO-A-S
Stock Quantity100PCS
Warehouse Location Dongguan China
Sample Delivery TimeWithin 24H
Bulk Stock Delivery TimeWithin 48H
Shipping WayDHL,UPS,FedEx,TNT,
Customer Nominated Forwarder
Packing SizeQty: 10pcs/carton
G.W.: 13Kgs
Volume: 0.04 m³
Packing: Export Carton
Pallet size: 110 x 110cm
