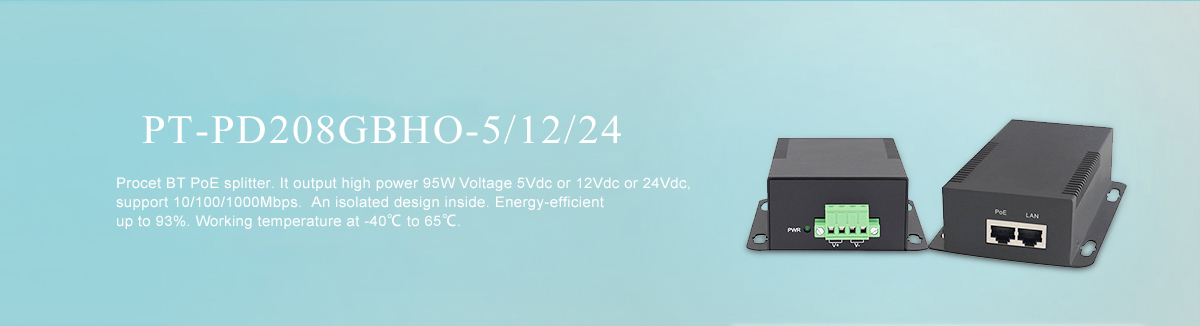

PT-PD208GBHO brings the power of PoE++ to a single port PoE splitter with high-impact metal case. It takes 95W power and data from PoE injector or switch, and delivers power and data to non-PoE devices. It outputs power 5Vdc/12Vdc/24Vdc(optional) and supports 10/100/1000Mbps of data rates. It is capable of powering 82.5 watt non-PoE Powered Devices (PD’s), such as wireless APs, network cameras, digital signage, LED Lighting and other high power non-PoE terminals.
Designed for indoor use, it works with an input voltage range of 40-57Vdc and operates under -40℃ to +65 ℃. The effective distance is 100 meters over Cat5e/Cat6 cables.
It is an isolated design inside to avoid high current input damage. Innovative technology increase energy-efficient up to 94%. The wall mounting case and screw terminal connectors make this device easy to deploy
Specifications
| Parameter | Description |
| Key Features | High efficiency up to 94% High power PoE++ 95W Input High-impact metal case Wide temperature at -40℃ to 65℃ Plug and play with screw terminal connectors Isolated design inside to avoid high current input damage Equipped bridge rectifiers(electronic component) inside to compatible with different Pin assignment and Polarity for Passive PSE Gigabit data rates |
| Part Number | PT-PD208GBHO-5/12/24 |
| Ports condition | PoE Input Port*1, LAN Output Port*1, DC Output Port*1 |
| Regulatory Compliance | RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Output | Pin Assignment and Polarity: 4/5(+), 7/8(-) & 3/6(+),1/2(-) Output Power Voltage: 5/12/24Vdc(optional) User Port Power: 82.5W Guaranteen |
| Input | Input: IEEE802.3bt ,40-57Vdc (Typical 48V), 95W |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| Mechanical Characteristics | Case: Metal Color: Black Mounting: Wall-mounted IP Rated: IP20 Connectors: Shielded RJ-45 and Block terminal Size: 128mm X 89mm X 36mm Weight: 490g（1.08lb） |
| LED Indicator | Power Output Indicator : Green |
| Warranty | 2 year |
Standing Stock
| Product Order Info.(Model) | PT-PD208GBHO-5/12/24 |
| Stock Quantity | 100PCS |
| Warehouse Location | Dongguan China |
| Sample Delivery Time | Within 24H |
| Bulk Stock Delivery Time | Within 48H |
| Shipping Way | DHL,UPS,FedEx,TNT, By SEA/AIR Customer Nominated Forwarder |
| Packing Size | Qty: 20pcs/carton G.W.: 16Kgs Volume: 0.06 m³ Packing: Export Carton Pallet size: 110 x 110cm |
