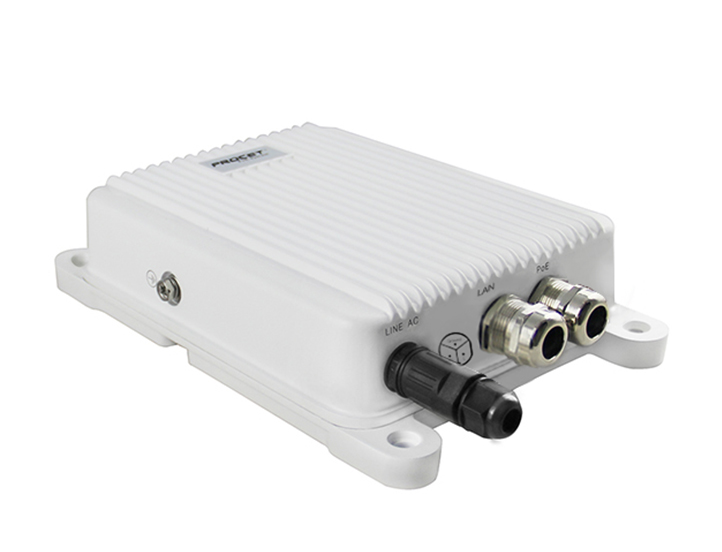

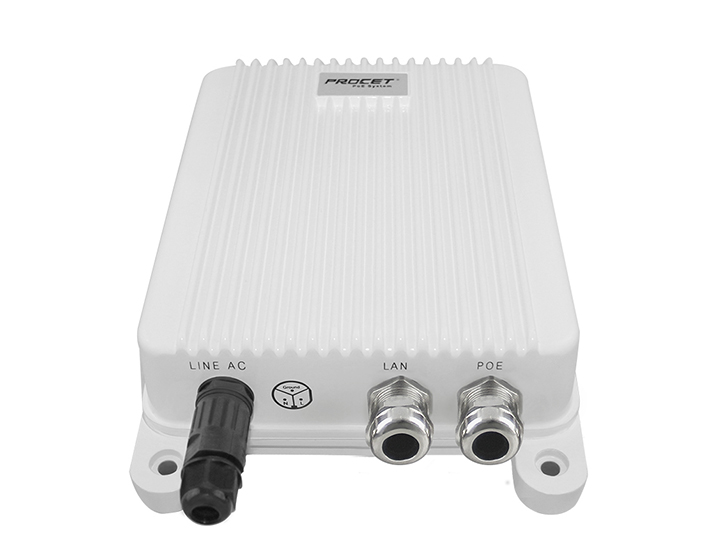

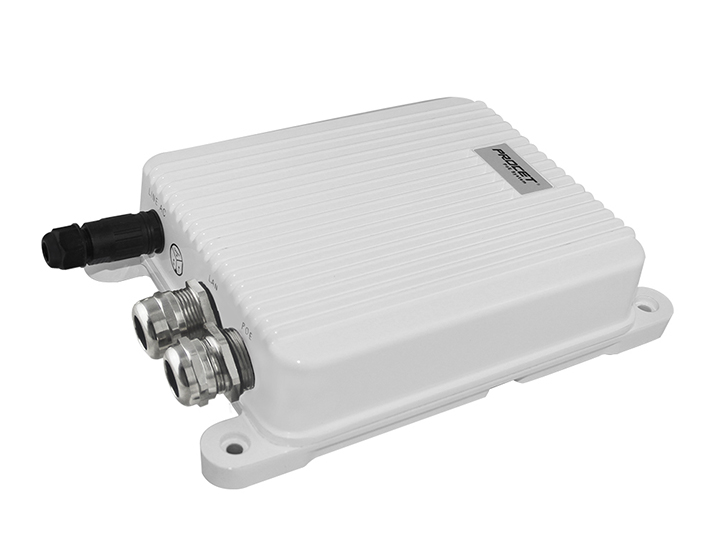

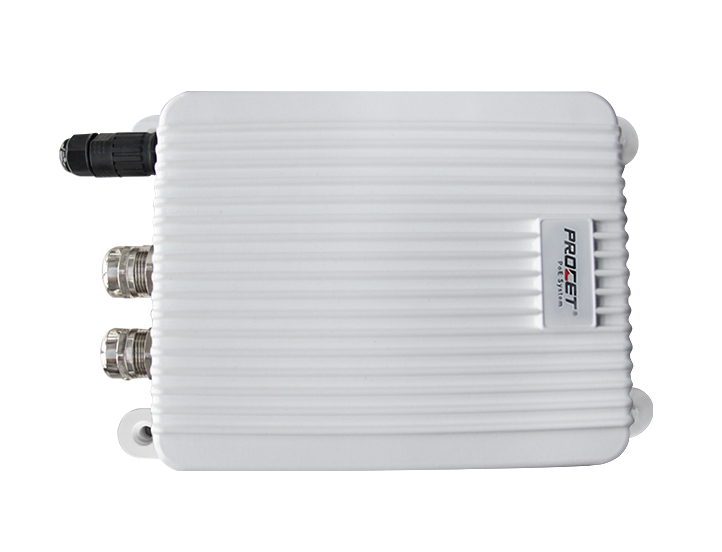

PT-PSE108GXR-OT 120W outdoor PoE injector

PT-PSE108GXR-OT belongs to 120W PoE Injector(Outdoor PoE Injector,), is a single port midspan Injector with 4 Pair PoE up to 95 watts of power at 55 VDC at 1.75 amp.


Designed for the PoE++ powered 120W PoE Powered Devices (PDs), such as wireless APs, network camera, VoIP phone, base stations, and other high power Ethernet terminals. It is also compatible and safe to use with any IEEE802.3af/at compliant terminals, It supports 10/100/1000 Mbps of data rates.  It has a detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected.


Enclosed in an IP66 fire retardant metal case, designed for outdoor installation with installation kit PT-POT-MBK, no need to open the equipment. It operates with an input voltage of 100-240 Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.


  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key FeaturesPoE++ 120W outdoor PoE injector
Part NumberPT-PSE108GXR-OT
Ports  conditionLAN *1, AC Input*1, PoE Output *1
PoE output120W
Data rates10/100/1000 Mbps
Power input100-240Vac 2.0A
Power output55Vdc 2.2A
Regulatory CompliancePoE++
RoHS Compliance
WEEE Compliance
Working EnvironmentOperating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 95%, non-condensation
Operating Altitude: up to 5000meters
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 6KV
Line-Line 1.2/50us (8/20us):4KV
Mechanical CharacteristicsSize: 176X 269 X 65mm
Weight: 1.8kg(3.97lb)
Safety  ApprovalsCE, FCC
