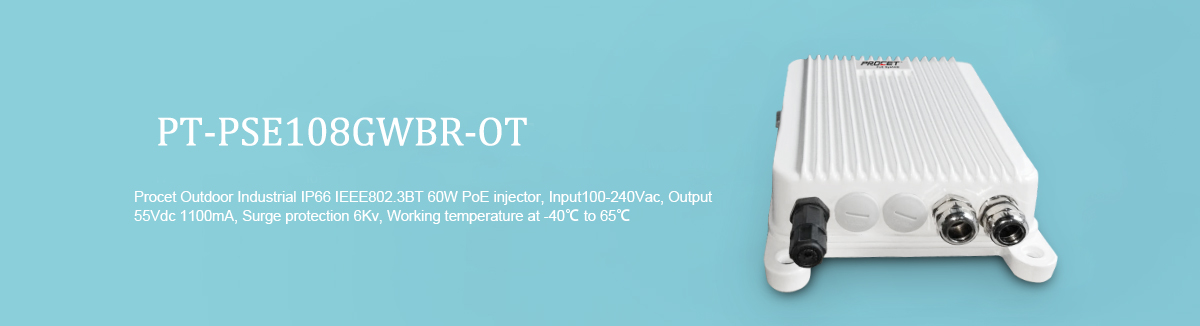

PT-PSE108GWBR-OT Outdoor PoE Injector

PT-PSE108GWBR-OT is an outdoor PoE injector specially designed for exterior, complex backhaul and networking applications. Enclosed in a IP66 Reflective metal case with a sealing that gasket passes tension, bearing, corrosion, and aging test for IP66 applications. After negotiating IEEE802.3bt standard PoE, the single PoE output port delivers 55Vdc, 1.1A up to 60W power with 6KV surge protection for remote PDs over full 4 Pair at 10/100/1000Mbps data rates.

It works with a wide input voltage of 100-240VAC with 6KV surge protection, 50 or 60 Hz and operates under -40℃ to +65℃. It fully complies with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks.

For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. It is easy to install with installation kit PT-POT-MBK(Sold separatly), no need to open the equipment.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock


Key Features

Industrial Outdoor IP66 PoE

Extend temperature from -40℃ to 65℃, even to 75℃

Lighting Protection

Gigabit data rates

Diagnostic LEDs

IEEE802.3BT 60W

Part NumberPT-PSE108GWBR-OT
Ports conditionLAN Port*1, AC Input Port*1, PoE Output Port*1
Regulatory ComplianceIEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000 Mbps
OutputPin Assignment and Polarity:
4/5 (+), 7/8 (–) and 3/6(+),1/2(-)
Output Power Voltage: 55Vdc
User Port Power: 60W Guaranteen
InputAC Input Voltage:90 to 264Vac(100 to 240Vac Rated)
Frequency: 47 to 63Hz (50/60Hz Typ.)
Working EnvironmentOperating Temperature: -40 to 65
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40
to 85
Storage Humidity: 10% to 95%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
AC Surge ProtectionLine-Earth 1.2/50us (8/20us): 6KV
Line-Line 1.2/50us (8/20us): 4KV
Mechanical CharacteristicsCase: Metal
Color: White
Mounting: Wall-mounted or Pole-mounted
IP Rated: IP66
Connectors: Shielded RJ-45
Size: 176mm X 269mm X 65mm
Weight: 1.8kg
Warranty2 year
Safety ApprovalscUL/UL,  CE


Standing Stock

Product Order Info.(Model)PT-PSE108GWBR-OT
Stock Quantity50PCS
Warehouse Location Dongguan China
Sample Delivery TimeWithin 24H
Bulk Stock Delivery TimeWithin 48H
Shipping WayDHL,UPS,FedEx,TNT,
Customer Nominated Forwarder
Packing SizeQty: 5pcs/carton
G.W.: 12.2Kgs
Volume: 0.056m³
Packing: Export Carton
Pallet size: 110 x 110cm
