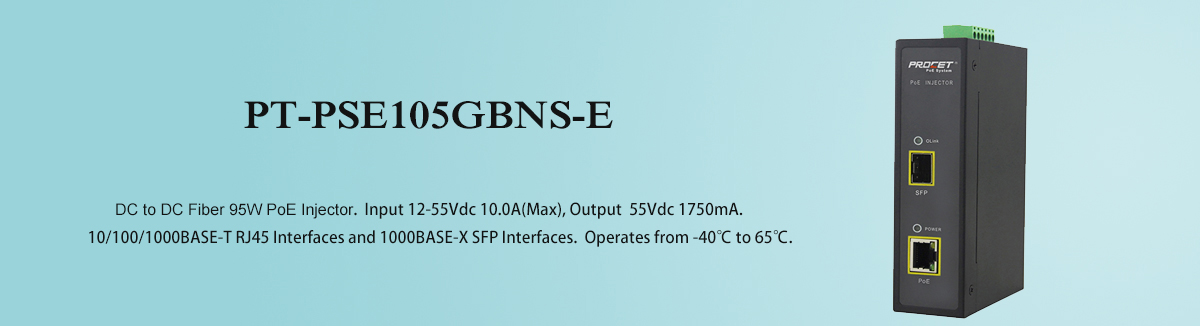

PT-PSE105GBNS-E DC Fiber 95W PoE Injector

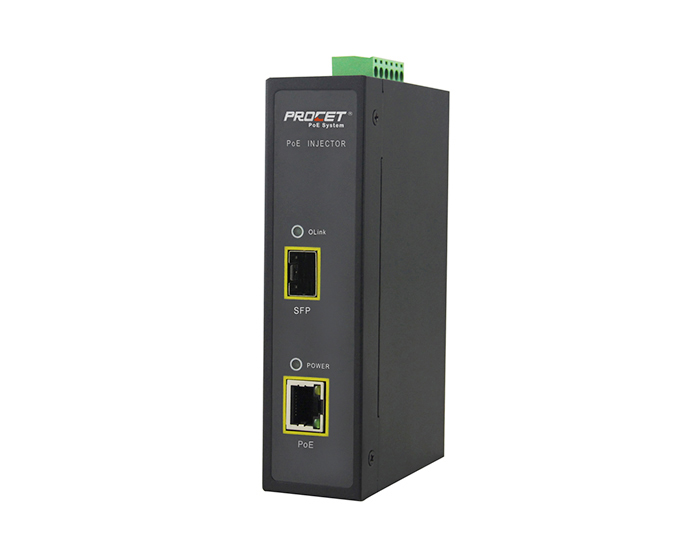

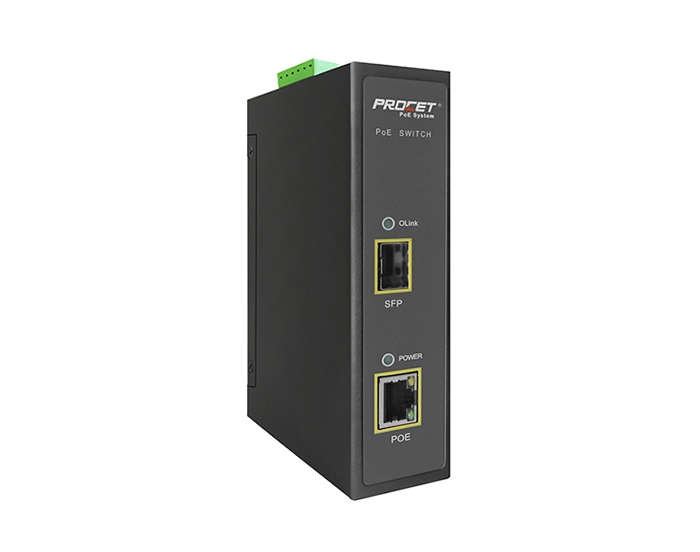

More and more people are cutting the cord and going solar, Solar to PoE++ 95W: Whether you have a remote PTZ Camera or Wifi, this injector can take a wide range of input power and deliver constant PoE++ 95W with surge protection. An industrial-rated PoE injector/midspan specially designed for complex backhaul and networking applications. Enclosed in a  high-impact IP40 metal case. 1000Base-X to 10/100/1000Base-T. The single output port delivers 55V, 1.75A power via 4 pairs for remote PD with 6KV (10/700us) surge protection.

It works with input voltage of 12-55Vdc making it possible for solar application. The output voltage is a fixed one at 55 Volts. Wide temperature extends from -40℃ to +65℃. It will directly power PDs without detecting, but it also supports terminal equipment with IEEE802.3af/at/bt standard, such as wireless APs, IP cameras, Microwave radio, base stations, and other power Ethernet backhaul devices.

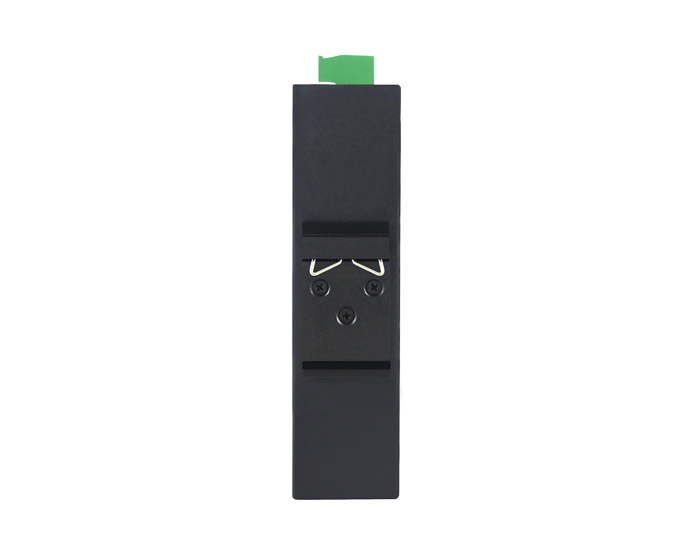

This model is equipped standard DIN rail mounting bracket, which can easily jam into the guide rail.

  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock


Key FeaturesPoE++ 60W Industrial DIN Rail PoE injector
Part NumberPT-PSE105GBNS-E
Ports  conditionSFP Fiber *1, DC Input*1, PoE Output *1
PoE output95W
Data rates10/100/1000BASE-T RJ45 Interfaces
1000BASE-X SFP Interfaces
Power input12-55Vdc,10.0A Max
Power output55Vdc 1750mA 95W
Regulatory CompliancePassive PoE support 802.3bt
RoHS Compliance
WEEE Compliance
Working EnvironmentOperating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
Mechanical CharacteristicsSize: 144.5X 95X 35.4mm
Weight:  400g(0.88lb)
Safety  ApprovalsCE
