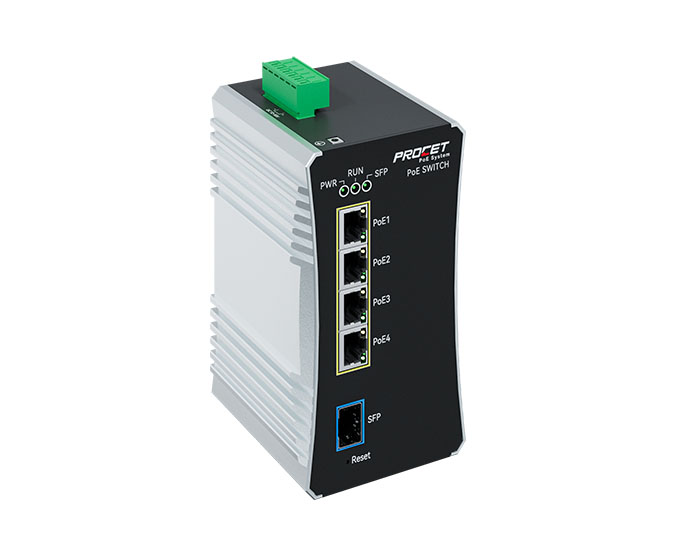

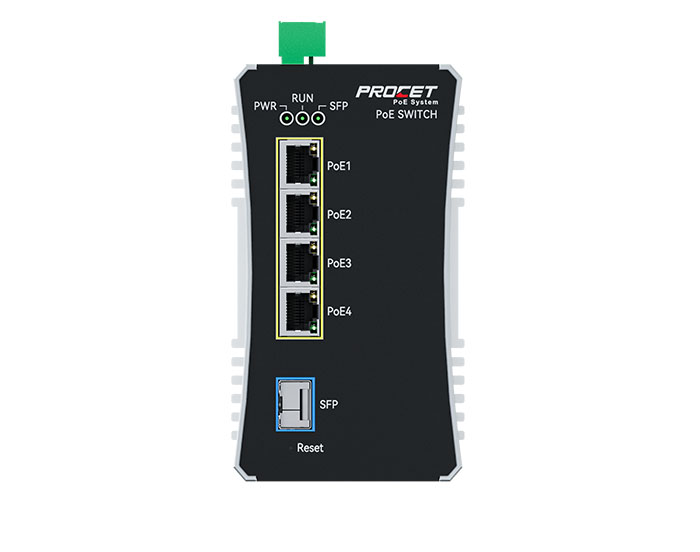

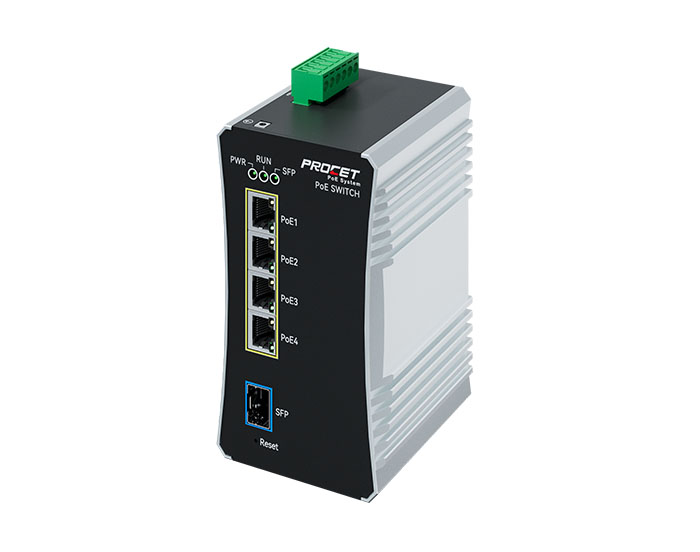

PT-PIS4PB1S-E-M Managed 24VDC 90W PoE Switch with SFP Fiber Uplink

PT-PIS4PB1S-E-M is an industrial-rated 4-port PoE switch with management function. It has one SFP uplink offers a unique solution to powering long-range installations, where the data input comes over fiber, such as special scenarios, like highway side, exurb applications.  Enclosed in an IP40 high-impact metal case but can work outdoor by being covered with a waterproof case. All the Ethernet copper ports have 4KV surge protection.


It works with a wide input voltage of 12-55Vdc and operates under -40℃ to 75℃. This model includes 1 SFP fiber slot at 1000BASE-X, 1 power input terminal block and 4 PoE ports, provides 90W each port power for remote PDs over 4 pairs output at 10/100/1000Mbps of data speed. Each PoE port is compliant with BT standard and backward compatible with 802.3af/at. Such as power for Pan Tilt Zoom cameras/IP cameras, VoIP video phones, building/access control equipment, WiFi access devices, POS terminals, thin clients, kiosks, and IP print servers.


The power input terminal block has 6-pin wires which support two DC connectors. The other DC connector only supports 48-55Vdc. You can choose either one to go ahead. Do not connect both DC powers simultaneously, otherwise, there will be a risk of damage to the unit.


Supports IEEE 802.1Q VLAN and port-based VLAN. We can access and manage the device via web browser, including IP configuration, port configuration, VLAN configuration, PoE configuration, device control, etc. We can also view device information such as switch status, port status, PoE status, etc. In addition, the PoE port enables remote control of the device' on/off and reset status.

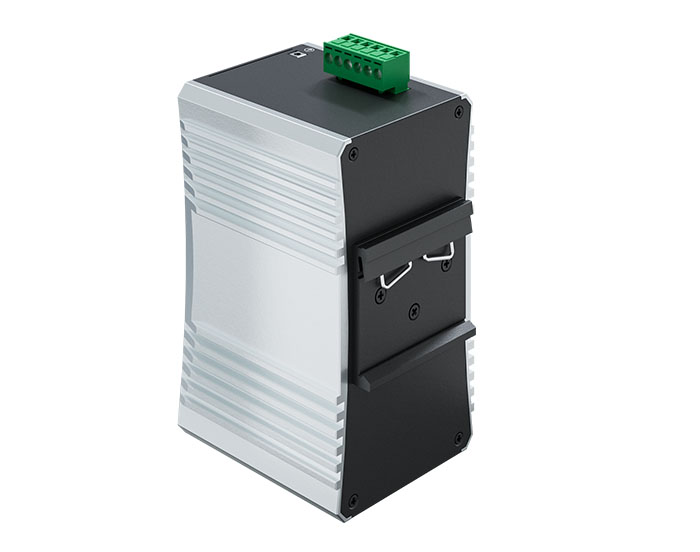

For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. This model is equipped with a standard DIN rail mounting bracket, which can easily jam into the guide rail.


  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key FeaturesManagement function
4-Port BT 90W PoE Switch,
12-55Vdc can match soloar power system
Industrial Fiber PoE can be outdoor use by covered with waterproof case
1000Base-FX to 10/100/1000Base-TX
SFP slot for Multi mode or Single mode SFP transceiver
Gigabit data rates for Ethernet Copper
DIN Rail mount
Surge protection at all 4 PoE ports
IP40 high-impact metal enclosure
Extend temperature from -40℃ to 75℃
Diagnostic LEDs
Part NumberPT-PIS4PB1S-E-M
Ports conditionSFP Port*1, PoE Output Port*4, DC input Terminal Block *1, Reset *1
Regulatory ComplianceIEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000BASE-T RJ45 Interfaces
1000BASE-X SFP Interfaces
Output 1Pin Assignment and Polarity:
3/6(+), 1/2(-),4/5(+), 7/8(-)
Output Power Voltage: 55Vdc/1.64A
User Port Power: 90W Guaranteen per port*4,
Total power budget 120W(max) @12Vdc input
Total power budget 240W(max) @24Vdc input
Total power budget 360W(max) @48Vdc input
Input 1DC Input Voltage:12 to 55 Vdc, 10.0A
Output 2Output Power Voltage:  48-55Vdc, 1.64A
User Port Power: 90W Guaranteen per port*4,
Total power budget 360W(max)
Input 2DC Input Voltage:48 to 55 Vdc, 7.5A
Working EnvironmentOperating Temperature: -40℃ to 75℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 4KV
Differential mode surge protection (10/700us): 1.5KV
Mechanical CharacteristicsCase: Metal
Color: Black and Silver
Mounting: DIN-rail
IP Rated: IP40
Connectors: Shielded RJ-45*4, SFP slot *1
Size: 76mmX 95.1mmX 146mm
Weight: 1230 g(2.71 lb)
LED IndicatorPower Indicator : Green
PoE Load Indicator : Yellow
SFP fiber indicator:Green
Lan data indicator: Yellow
