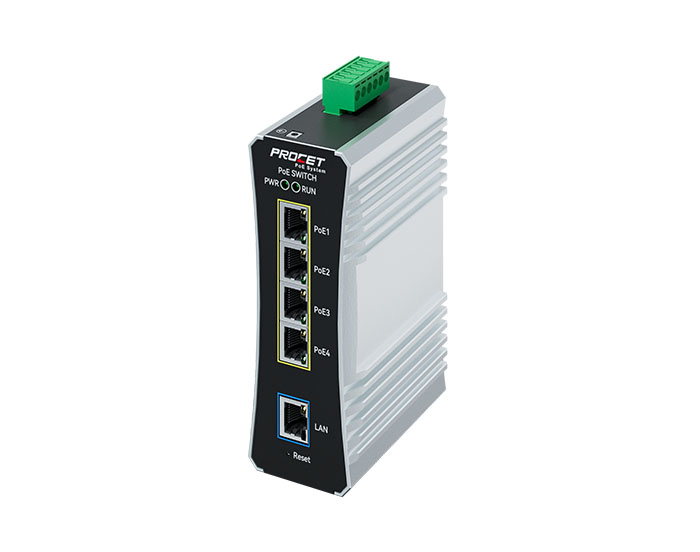

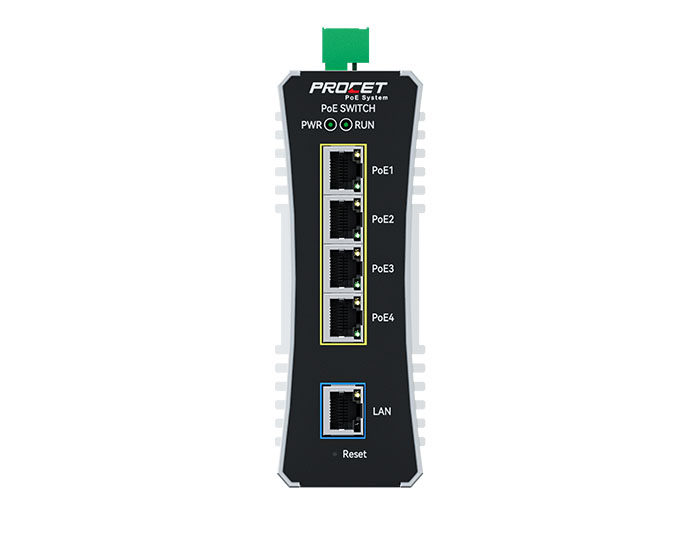

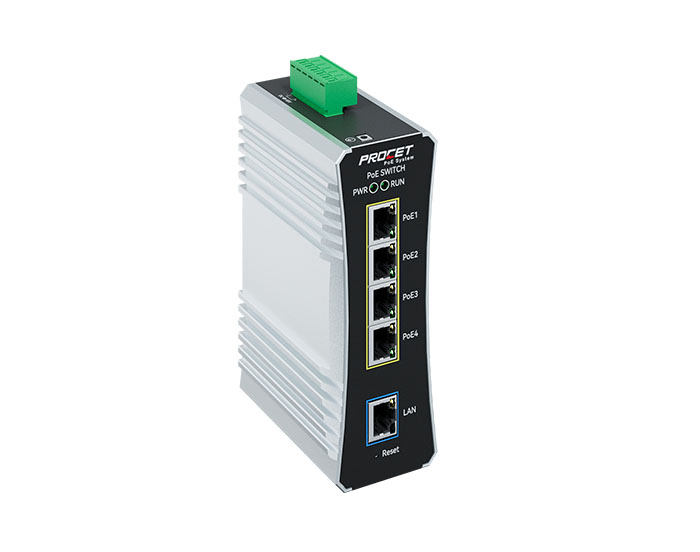

PT-PIS4PB1T-M Hardened 5-Port Gigabit Managed PoE++ DIN-Rail Switch

PT-PIS4PB1T-M is a managed industrial-rated 4-port PoE switch that has one LAN Data uplink.  Enclosed in an IP40 high-impact metal case but can work outdoor by being covered with a waterproof case. All the PoE ports have 4KV surge protection.


It works with an input voltage of 48-55 and operates under -40℃ to 75℃. This model includes 1 LAN data uplink, 1 power input terminal block and 4 PoE ports, provides 90W per port power for remote PDs over 4 pairs output at 10/100/1000Mbps of data speed. Each PoE port is compliant with BT standard and backward compatible with 802.3af/at. Such as power for Pan Tilt Zoom cameras/IP cameras, VoIP video phones, building/access control equipment, WiFi access devices, POS terminals, thin clients, kiosks, and IP print servers.


The power input terminal block has 6-pin wires which support two DC connectors. The other DC connector also supports 48-55Vdc. You can choose either one to go ahead. Do not connect both DC powers simultaneously, otherwise, there will be a risk of damage to the unit.


Supports IEEE 802.1Q VLAN and port-based VLAN. We can access and manage the device via web browser, including IP configuration, port configuration, VLAN configuration, PoE configuration, device control, etc. We can also view device information such as switch status, port status, PoE status, etc. In addition, the PoE port enables remote control of the device' on/off and reset status.

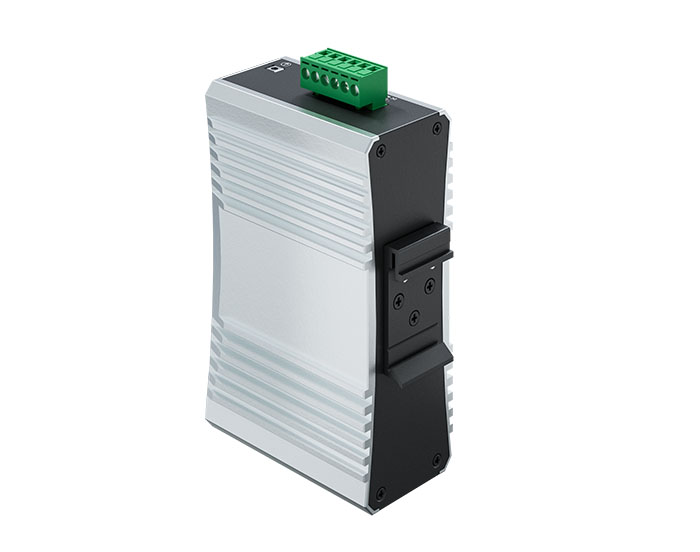

For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. This model is equipped with a standard DIN rail mounting bracket, which can easily jam into the guide rail.


  • Specifications
  • Support & Dowload
  • Gallery
  • Test Results
  • Standing Stock

Specifications

ParameterDescription
Key FeaturesManagement function
4-Port BT 90W PoE Switch
Industrial PoE can be outdoor use by covered with waterproof case
10/100/1000Mbps
Surge protection at PoE port
DIN Rail mount
IP40 high-impact metal enclosure
Extend temperature from -40℃ to 75℃
Diagnostic LEDs
Part NumberPT-PIS4PB1T-M
Ports conditionLAN Port*1, PoE Output Port*4, DC input Terminal Block *1, Reset *1
Regulatory ComplianceIEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates10/100/1000Mbps
OutputPin Assignment and Polarity:
4/5 (+), 7/8 (–) & 3/6(+),1/2(-)
Output Power Voltage: 48-55Vdc
User Port Power: 90W Guaranteen per port, Total Power budget 360W
InputDC Input Voltage:48 to 55 Vdc, 7.5A(Max)
Working EnvironmentOperating Temperature: -40℃ to 75℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionProtected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 4KV
Differential mode surge protection (10/700us): 1.5KV
Mechanical CharacteristicsCase: Metal
Color: Black and Silver
Mounting: DIN-rail
IP Rated: IP40
Connectors: Shielded RJ-4554
Size: 49mmX 96mmX 146mm
Weight: 404 g(0.89 lb)
LED IndicatorPower Indicator : Green
PoE Load Indicator : Yellow
SFP fiber indicator:Green
Lan data indicator: Yellow
