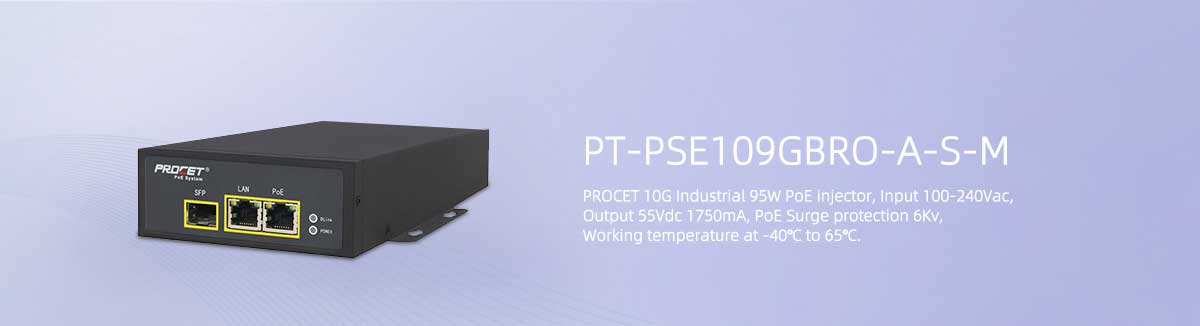

PT-PSE109GBRO-A-S-M, single port Fiber PoE Injector with Managed Ethernet function. Supports IEEE 802.1Q VLAN and port-based VLAN. We can access and manage the device via web browser, including IP configuration, port configuration, VLAN configuration, PoE configuration, device control, etc
It complies to IEEE802.3af/at/bt standard making it compatible with PoE, PoE+, PoE++ devices, such as wireless APs, IP cameras, base stations, gateways, and other high-power Ethernet backhaul devices.Industrial design, when cover with waterproof case can be used for outdoor application under -40℃ to +65℃. It works with wide input voltage of 100-240Vac with 6KV surge protection. Auto-negotiate 802.3af/at/bt PoE powered device, no worry about powering a non-standard device. It works like a switch, the data is interoperable among LAN port, PoE port and SFP port.
For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.
Specifications
| Parameter | Description |
| Key Features | Industrial 95W Managed single port Fiber PoE Injector Industrial Fiber PoE can be outdoor use by covered with waterproof case Surge protection both at PoE port and AC port1000Base-FX to 1000Base-TX SFP slot for Multi mode or Single mode SFP transceiver Gigabit data rates AC power cord with optional US or EU plug or other standard plug IP20 high-impact metal enclosure Extend temperature from -40℃ to 65℃ Diagnostic LEDs |
| Part Number | PT-PSE109GBRO-A-S-M |

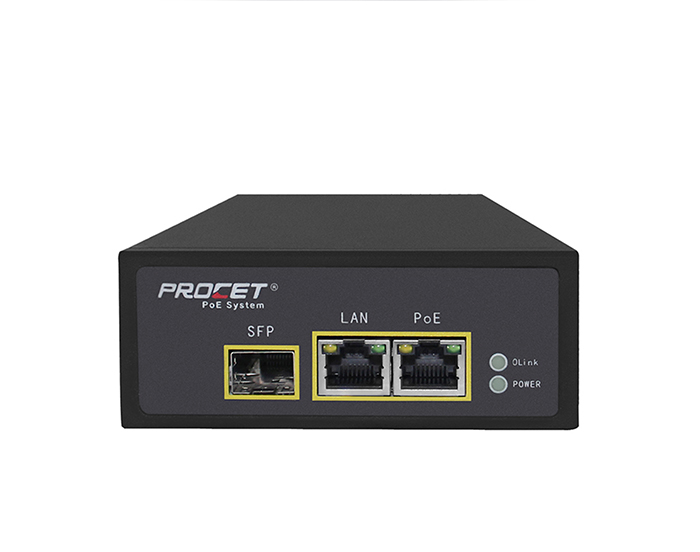

| Ports condition | SFP Port*1, LAN Port*1, AC Input Port*1, PoE Output Port*1 |
| Regulatory Compliance | IEEE802.3bt RoHS Compliance WEEE Compliance |
| Pass Through Data Rates | 10/100/1000Mbps |
| Output | Pin Assignment and Polarity: 4/5(+), 7/8(-) and 3/6(+),1/2(-) Output Power Voltage: 55Vdc User Port Power: 95W Guaranteen |

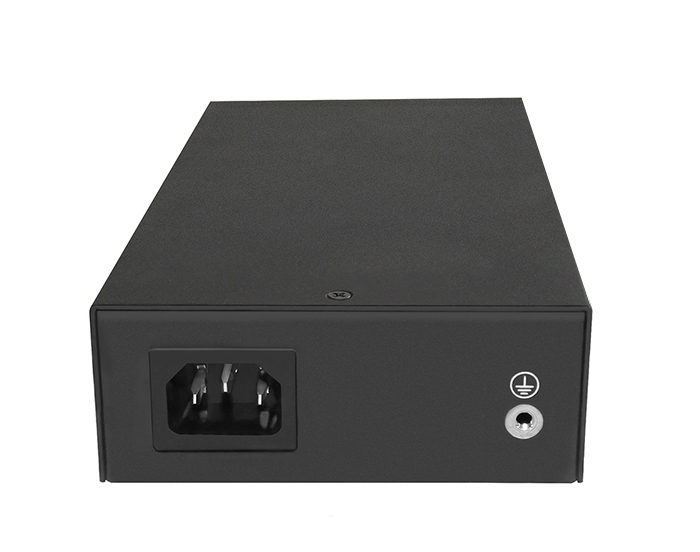

| Input | AC Input Voltage: 90 to 264Vac(100 to 240Vac Rated) AC Input Current: 2.0A Frequency: 47 to 63Hz (50/60Hz Typ.) |
| Working Environment | Operating Temperature: -40℃ to 65℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters |
| PoE Surge Protection | Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 4KV Differential mode surge protection (10/700us): 1.5KV |
| AC Surge Protection | Line-Earth 1.2/50us (8/20us): 6KV Line-Line 1.2/50us (8/20us): 4KV |

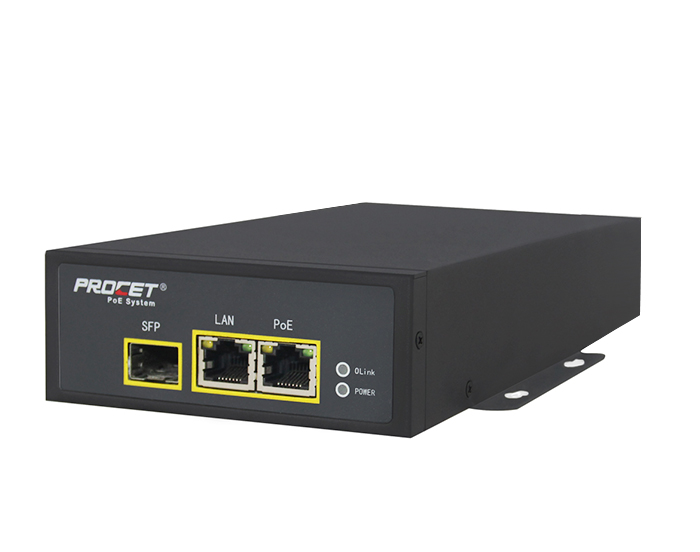

| Mechanical Characteristics | Case: Metal Color: Black Mounting: Wall-mounted IP Rated: IP20 Connectors: Shielded RJ-45*2, SFP slot*1 Size: 214 X 134 X 41mm Weight: 920g（2.0lb） |
